Schneider A9F77116 | Miniature circuit-breaker, Acti9 iC60N, 1P, 16 A, C curve, 6000 A (IEC 60898-1), 10 kA (IEC 60947-2)
In stock
Schneider A9F77116
316.38 EGP 483.02 EGP
In stock
CompareSchneider A9F77116
Schneider A9F77116
Introduction
Schneider Electric is a renowned global leader in energy management and automation, known for producing top-tier electrical components. One of their standout products is the Schneider A9F77116. This article delves into the specifics of this miniature circuit breaker (MCB), covering its design, technical specifications, installation process, and more. Whether you are an industry professional or a homeowner, this guide will provide you with comprehensive insights into it.
What is Schneider A9F77116?
it is a high-performance miniature circuit breaker designed to protect electrical circuits from damage due to overloads or short circuits. It is a vital component in ensuring the safety and reliability of electrical systems in various settings.
Definition and Purpose
The primary purpose of it is to safeguard electrical systems by automatically interrupting the flow of electricity when a fault is detected. This action prevents potential hazards such as electrical fires and equipment damage.
Key Features
- Automatic tripping for protection against overloads and short circuits
- High breaking capacity to handle severe fault conditions
- Compact and modular design for easy integration
- Durable construction ensuring long-term reliability
Design and Build
it is designed with a focus on durability and ease of use, ensuring it meets the high standards expected from Schneider Electric products.
Physical Characteristics
it features a sleek, compact design that allows for easy installation in a variety of electrical panels. Its small size does not compromise its functionality, allowing it to fit seamlessly into different setups.
Material Quality and Durability
Constructed from high-quality materials, it is built to withstand harsh operating conditions. Its durable design ensures reliable performance over a long period, even in demanding environments.
Technical Specifications
Understanding the technical specifications of it is crucial for ensuring it meets your specific needs.
Voltage Rating
it operates efficiently at a voltage rating of 230/400V AC, making it versatile for a wide range of applications.
Current Rating
With a current rating of 16A, it is capable of handling various electrical loads, providing flexibility in its use.
Dimensions
Its compact dimensions allow for easy integration into existing electrical setups, minimizing the need for significant modifications.
Installation Process
Installing it is straightforward if the proper steps are followed.
Pre-installation Requirements
Before beginning the installation, ensure you have all necessary tools and that the power supply to the installation area is turned off to prevent any accidents.
| Device application | Distribution |
|---|---|
| Range | Acti9 |
| Product name | Acti9 iC60 |
| product or component type | Miniature circuit-breaker |
| Device short name | IC60N |
| Poles description | 1P |
| Number of protected poles | 1 |
| [In] rated current | 16 A |
| Network type | DC AC |
| Trip unit technology | Thermal-magnetic |
| Curve code | C |
| Breaking capacity | 6000 A Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60898-1 10 kA Icu at 60…72 V DC conforming to EN/IEC 60947-2 15 kA Icu at 12…60 V DC conforming to EN/IEC 60947-2 10 kA Icu at 220…240 V AC 50/60 Hz conforming to EN/IEC 60947-2 36 kA Icu at 12…60 V AC 50/60 Hz conforming to EN/IEC 60947-2 20 kA Icu at 100…133 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
| Utilisation category | Category A conforming to EN 60947-2 Category A conforming to IEC 60947-2 |
| Suitability for isolation | Yes conforming to EN 60898-1 Yes conforming to EN 60947-2 Yes conforming to IEC 60898-1 Yes conforming to IEC 60947-2 |
| Standards | IEC 60898-1 EN 60898-1 EN 60947-2 IEC 60947-2 |
| Quality labels | NF |
| Network frequency | 50/60 Hz |
|---|---|
| Magnetic tripping limit | 8 x In +/- 20 % |
| [Ics] rated service breaking capacity | 27 kA 75 % conforming to EN 60947-2 – 12…60 V AC 50/60 Hz 7.5 kA 75 % conforming to EN 60947-2 – 220…240 V AC 50/60 Hz 27 kA 75 % conforming to IEC 60947-2 – 12…60 V AC 50/60 Hz 7.5 kA 75 % conforming to IEC 60947-2 – 220…240 V AC 50/60 Hz 15 kA 75 % conforming to IEC 60947-2 – 100…133 V AC 50/60 Hz 15 kA 75 % conforming to EN 60947-2 – 100…133 V AC 50/60 Hz 6000 A 100 % conforming to EN 60898-1 – 230 V AC 50/60 Hz 6000 A 100 % conforming to IEC 60898-1 – 230 V AC 50/60 Hz 10 kA 100 % conforming to EN 60947-2 – 72 V DC 10 kA 100 % conforming to IEC 60947-2 – 72 V DC 15 kA 100 % conforming to EN 60947-2 – 12…60 V DC 15 kA 100 % conforming to IEC 60947-2 – 12…60 V DC |
| Limitation class | 3 conforming to EN 60898-1 3 conforming to IEC 60898-1 |
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz conforming to EN 60947-2 500 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to EN 60947-2 6 kV conforming to IEC 60947-2 |
| Contact position indicator | Yes |
| Control type | Toggle |
| Local signalling | Trip indicator |
| Mounting mode | Fixed |
| Mounting support | DIN rail |
| Comb busbar and distribution block compatibility | Top or bottom: YES |
| 9 mm pitches | 2 |
| Height | 85 mm |
| Width | 18 mm |
| Depth | 78.5 mm |
| net weight | 0.215 kg |
| Colour | White |
| Mechanical durability | 20000 cycles |
| Electrical durability | 10000 cycles |
| Connections – terminals | Single terminal (top or bottom) 1…25 mm² rigid Single terminal (top or bottom) 1…16 mm² flexible |
| Wire stripping length | 14 mm for top or bottom connection |
| Tightening torque | 2 N.m top or bottom |
| earth-leakage protection | Without |
| IP degree of protection | IP20 conforming to IEC 60529 IP20 conforming to EN 60529 |
|---|---|
| Pollution degree | 3 conforming to EN 60947-2 3 conforming to IEC 60947-2 |
| Overvoltage category | IV |
| Tropicalisation | 2 conforming to IEC 60068-1 |
| Relative humidity | 95 % at 55 °C |
| Operating altitude | 0…2000 m |
| Ambient air temperature for operation | -35…70 °C |
| ambient air temperature for storage | -40…85 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.7 cm |
| Package 1 Width | 7.5 cm |
| Package 1 Length | 9.3 cm |
| Package 1 Weight | 109.0 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 2.67 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 20.0 cm |
| Package 2 Weight | 1.369 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 132 |
| Package 3 Height | 30.0 cm |
| Package 3 Width | 30.0 cm |
| Package 3 Length | 40.0 cm |
| Package 3 Weight | 15.519 kg |
| Warranty | 18 months |
|---|
Main Document
Data Sheet : A9F77116
Based on 0 reviews
Be the first to review “Schneider A9F77116 | Miniature circuit-breaker, Acti9 iC60N, 1P, 16 A, C curve, 6000 A (IEC 60898-1), 10 kA (IEC 60947-2)”
Related products
-
Acti 9 iK60, Acti 9 iK60, Acti 9 Miniature Circuit Breakers - MCBs, Din rail modular devices, Low Voltage Products and Systems

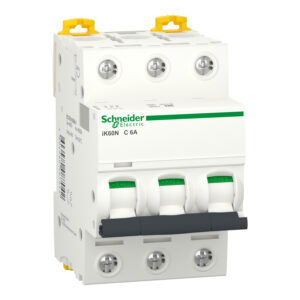

Schneider A9K24225 | Miniature circuit-breaker, Acti9 iK60N, 2P, 25 A, C curve, 6000 A (IEC 60898-1)
