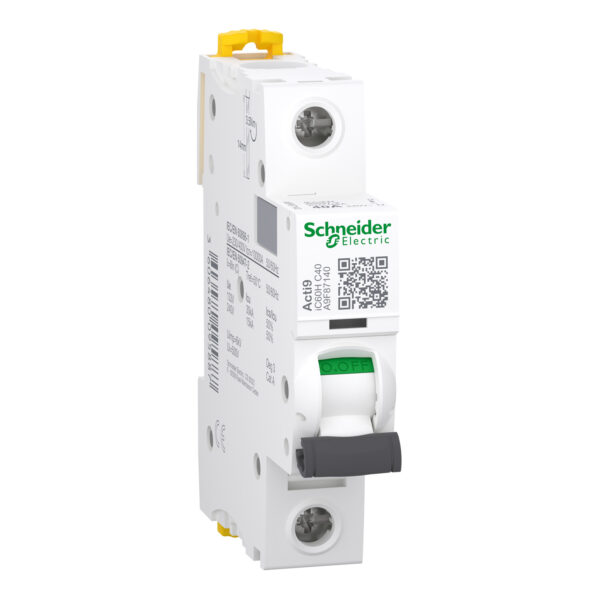

Schneider A9F87140 | Miniature circuit-breaker, Acti9 iC60H, 1P, 40 A, C curve, 10000 A (IEC 60898-1), 15 kA (IEC 60947-2)
Schneider A9F87140: Unveiling the Power of Protection
Introduction to Schneider A9F87140
In the realm of electrical circuit protection, the Schneider A9F87140 stands out as a reliable guardian, ensuring the safety and stability of electrical systems. This miniature circuit breaker (MCB) is designed to deliver robust performance across various applications, promising unmatched efficiency and durability.
Technical Specifications
Voltage Rating
The Schneider A9F87140 operates within a voltage range of [insert voltage range here], making it suitable for a wide array of electrical systems.
Current Rating
With a current rating of [insert current rating here], this MCB efficiently handles electrical loads, safeguarding circuits from overload and short-circuit conditions.
Breaking Capacity
Equipped with a high breaking capacity of [insert breaking capacity here], the A9F87140 swiftly interrupts abnormal currents, preventing potential hazards.
Frequency
Operating seamlessly within [insert frequency range here], this MCB ensures optimal performance across diverse frequency environments.
Mounting Type
Featuring a DIN rail mounting design, installation of the A9F87140 is hassle-free, saving time and effort for electricians.
Design Features
Compact Size
Despite its robust capabilities, the A9F87140 boasts a compact design, optimizing space utilization in electrical panels.
DIN Rail Mounting
The inclusion of DIN rail mounting facilitates swift and secure installation, enhancing the efficiency of electrical setups.
Easy Installation
With user-friendly installation mechanisms, even novice electricians can seamlessly integrate the A9F87140 into electrical systems, reducing downtime and labor costs.
Applications
The versatility of the Schneider A9F87140 extends across various domains, including:
Residential Use
From homes to apartments, this MCB ensures the safety of residential electrical systems, providing peace of mind to homeowners.
Commercial Use
In commercial establishments such as offices and retail spaces, the A9F87140 safeguards critical electrical infrastructure, minimizing the risk of disruptions.
Industrial Use
In industrial settings where reliability is paramount, this MCB excels in protecting heavy-duty machinery and equipment, enhancing operational efficiency.
Benefits of Schneider A9F87140
Enhanced Safety
With advanced protective features, including overload and short-circuit protection, the A9F87140 prioritizes safety, reducing the risk of electrical accidents.
Reliable Performance
Backed by Schneider’s legacy of excellence, this MCB delivers consistent performance under varying operating conditions, ensuring uninterrupted functionality.
Space-saving Design
The compact footprint of the A9F87140 enables efficient utilization of space within electrical panels, accommodating additional components without compromising performance.
| Device application | Distribution |
|---|---|
| Range | Acti9 |
| Product name | Acti9 iC60 |
| Product or component type | Miniature circuit-breaker |
| Device short name | iC60H |
| Poles description | 1P |
| Number of protected poles | 1 |
| [In] rated current | 40 A |
| Network type | AC DC |
| Trip unit technology | Thermal-magnetic |
| Curve code | C |
| Breaking capacity | 10000 A Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60898-1 15 kA Icu at 220…240 V AC 50/60 Hz conforming to EN/IEC 60947-2 42 kA Icu at 12…60 V AC 50/60 Hz conforming to EN/IEC 60947-2 30 kA Icu at 100…133 V AC 50/60 Hz conforming to EN/IEC 60947-2 15 kA Icu at 60…72 V DC conforming to EN/IEC 60947-2 20 kA Icu at 12…60 V DC conforming to EN/IEC 60947-2 |
| Utilisation category | Category A conforming to EN 60947-2 Category A conforming to IEC 60947-2 |
| Suitability for isolation | Yes conforming to EN 60898-1 Yes conforming to EN 60947-2 Yes conforming to IEC 60898-1 Yes conforming to IEC 60947-2 |
| Standards | EN 60947-2 EN 60898-1 IEC 60898-1 IEC 60947-2 |
| Network frequency | 50/60 Hz |
|---|---|
| Magnetic tripping limit | 8 x In +/- 20 % |
| [Ics] rated service breaking capacity | 21 kA 50 % conforming to EN 60947-2 – 12…60 V AC 50/60 Hz 7.5 kA 50 % conforming to EN 60947-2 – 220…240 V AC 50/60 Hz 21 kA 50 % conforming to IEC 60947-2 – 12…60 V AC 50/60 Hz 7.5 kA 50 % conforming to IEC 60947-2 – 220…240 V AC 50/60 Hz 7500 A 75 % conforming to EN 60898-1 – 230 V AC 50/60 Hz 7500 A 75 % conforming to IEC 60898-1 – 230 V AC 50/60 Hz 15 kA 50 % conforming to IEC 60947-2 – 100…133 V AC 50/60 Hz 15 kA 50 % conforming to EN 60947-2 – 100…133 V AC 50/60 Hz 15 kA 100 % conforming to EN 60947-2 – 72 V DC 15 kA 100 % conforming to IEC 60947-2 – 72 V DC 20 kA 100 % conforming to EN 60947-2 – 12…60 V DC 20 kA 100 % conforming to IEC 60947-2 – 12…60 V DC |
| Limitation class | 3 conforming to EN 60898-1 3 conforming to IEC 60898-1 |
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz conforming to EN 60947-2 500 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to EN 60947-2 6 kV conforming to IEC 60947-2 |
| Contact position indicator | Yes |
| control type | Toggle |
| local signalling | Trip indicator |
| Mounting mode | Fixed |
| mounting support | DIN rail |
| Comb busbar and distribution block compatibility | Top or bottom: YES |
| 9 mm pitches | 2 |
| height | 85 mm |
| Width | 18 mm |
| Depth | 78.5 mm |
| Net weight | 0.215 kg |
| Colour | White |
| Mechanical durability | 20000 cycles |
| Electrical durability | 10000 cycles |
| Connections – terminals | Single terminal (top or bottom) 1…35 mm² rigid Single terminal (top or bottom) 1…25 mm² flexible |
| Wire stripping length | 14 mm for top or bottom connection |
| Tightening torque | 3.5 N.m top or bottom |
| earth-leakage protection | Without |
| IP degree of protection | IP20 conforming to IEC 60529 IP20 conforming to EN 60529 |
|---|---|
| Pollution degree | 3 conforming to EN 60947-2 3 conforming to IEC 60947-2 |
| Overvoltage category | IV |
| Tropicalisation | 2 conforming to IEC 60068-1 |
| Relative humidity | 95 % at 55 °C |
| Operating altitude | 0…2000 m |
| ambient air temperature for operation | -35…70 °C |
| Ambient air temperature for storage | -40…85 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.800 cm |
| Package 1 Width | 7.500 cm |
| Package 1 Length | 9.500 cm |
| Package 1 Weight | 124.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 8.000 cm |
| Package 2 Width | 9.800 cm |
| Package 2 Length | 22.500 cm |
| Package 2 Weight | 1.543 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 132 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 17.460 kg |
| Warranty | 18 months |
|---|
