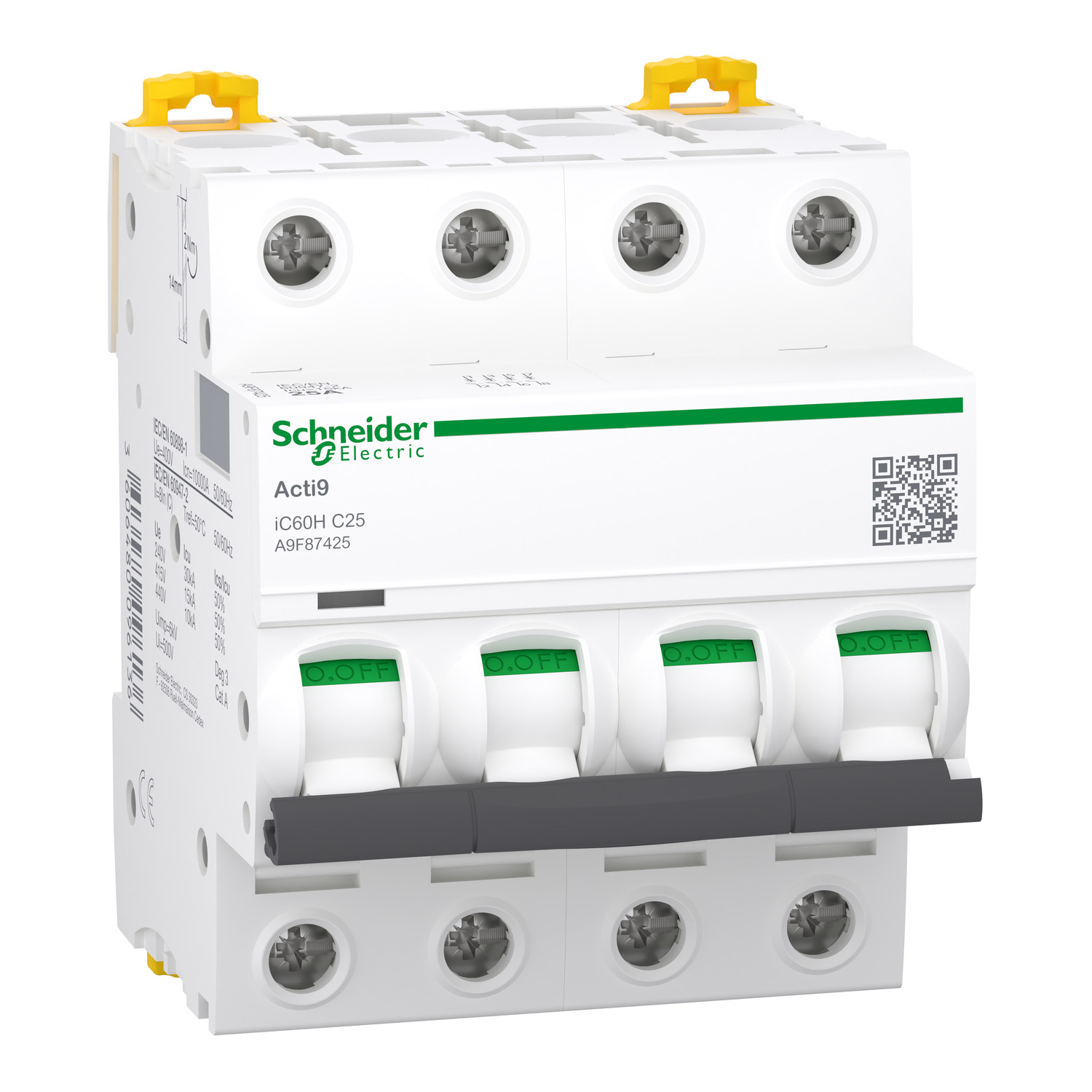

Schneider A9F87425| Miniature circuit-breaker, Acti9 iC60H, 4P, 25 A, C curve, 10000 A (IEC 60898-1), 15 kA (IEC 60947-2)
Schneider A9F87425: A Comprehensive Description
If you have ChatGPT 4, then try this: https://bit.ly/Jumma_GPTs
Schneider A9F87425 is a circuit breaker designed to ensure safety and protection in electrical circuits. With its advanced features and reliable performance, it has become a preferred choice for various industrial and commercial applications. In this article, we will delve into the technical specifications, features, applications, advantages, installation process, maintenance tips, safety precautions, comparisons with similar products, customer reviews, pricing, and availability of Schneider A9F87425.
Technical Specifications
Voltage Rating
Schneider A9F87425 is designed to operate at a voltage rating of [insert voltage rating here].
Current Rating
The current rating of Schneider A9F87425 is [insert current rating here], making it suitable for handling varying electrical loads.
Breaking Capacity
With a breaking capacity of [insert breaking capacity here], Schneider A9F87425 ensures efficient interruption of current flow in case of overloads or short circuits.
Features of Schneider A9F87425
- Compact Design: The compact design of Schneider A9F87425 makes it easy to install in limited spaces.
- High Performance: It offers reliable performance even in demanding environments.
- Short Circuit Protection: Schneider A9F87425 provides effective protection against short circuits, minimizing the risk of electrical hazards.
- Overload Protection: It safeguards electrical circuits from overloads, preventing damage to equipment and appliances.
- DIN Rail Mounting: The DIN rail mounting feature allows for quick and convenient installation.
- Wide Operating Temperature Range: It can operate within a wide temperature range, ensuring suitability for various applications.
Applications
Schneider A9F87425 finds applications in various sectors, including:
- Industrial plants
- Commercial buildings
- Residential complexes
- Data centers
- Hospitals
- Educational institutions
Advantages of using Schneider A9F87425
- Enhanced Safety: It ensures enhanced safety by protecting electrical circuits from overloads and short circuits.
- Reliability: Schneider A9F87425 offers reliable performance, minimizing downtime and maintenance costs.
- Ease of Installation: Its compact design and DIN rail mounting feature make installation hassle-free.
- Cost-effectiveness: It provides cost-effective protection for electrical circuits, reducing the risk of damage to equipment and appliances.
Maintenance Tips
To ensure optimal performance and longevity of Schneider A9F87425, follow these maintenance tips:
- Regularly inspect the circuit breaker for any signs of damage or wear.
- Clean the circuit breaker and surrounding area to remove dust and debris.
- Check for loose connections and tighten them if necessary.
- Test the circuit breaker periodically to ensure proper functioning.
Comparisons with Similar Products
Schneider A9F87425 stands out from similar products due to its advanced features, reliability, and performance. Compared to other circuit breakers in its class, it offers better protection, ease of installation, and cost-effectiveness.
Customer Reviews and Feedback
Customers who have used Schneider A9F87425 have praised its reliability, performance, and ease of installation. They have found it to be a valuable addition to their electrical systems, providing peace of mind and protection against electrical hazards.
Pricing and Availability
Schneider A9F87425 is available at competitive prices and can be purchased from authorized distributors and retailers. Pricing may vary depending on the quantity ordered and the supplier’s location. It is advisable to check with multiple suppliers to get the best deals.
Conclusion
Schneider A9F87425 is a highly reliable and efficient circuit breaker that offers superior protection for electrical circuits. With its advanced features, ease of installation, and cost-effectiveness, it is an ideal choice for various industrial, commercial, and residential applications. By investing in Schneider A9F87425, you can ensure the safety and reliability of your electrical systems.
| Device application | Distribution |
|---|---|
| Range | Acti9 |
| Product name | Acti9 iC60 |
| Product or component type | Miniature circuit-breaker |
| Device short name | iC60H |
| Poles description | 4P |
| Number of protected poles | 4 |
| [In] rated current | 25 A |
| Network type | DC AC |
| Trip unit technology | Thermal-magnetic |
| Curve code | C |
| Breaking capacity | 10000 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1 42 kA Icu at 12…60 V AC 50/60 Hz conforming to EN/IEC 60947-2 10 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2 15 kA Icu at 380…415 V AC 50/60 Hz conforming to EN/IEC 60947-2 30 kA Icu at 220…240 V AC 50/60 Hz conforming to EN/IEC 60947-2 42 kA Icu at 100…133 V AC 50/60 Hz conforming to EN/IEC 60947-2 15 kA Icu at <= 250 V DC conforming to EN/IEC 60947-2 |
| Utilisation category | Category A conforming to EN 60947-2 Category A conforming to IEC 60947-2 |
| Suitability for isolation | Yes conforming to EN 60898-1 Yes conforming to EN 60947-2 Yes conforming to IEC 60898-1 Yes conforming to IEC 60947-2 |
| Standards | EN 60898-1 EN 60947-2 IEC 60898-1 IEC 60947-2 |
| Quality labels | NF |
| Network frequency | 50/60 Hz |
|---|---|
| Magnetic tripping limit | 8 x In +/- 20 % |
| [Ics] rated service breaking capacity | 15 kA 50 % conforming to EN 60947-2 – 220…240 V AC 50/60 Hz 7.5 kA 50 % conforming to EN 60947-2 – 380…415 V AC 50/60 Hz 5 kA 50 % conforming to EN 60947-2 – 440 V AC 50/60 Hz 15 kA 50 % conforming to IEC 60947-2 – 220…240 V AC 50/60 Hz 7.5 kA 50 % conforming to IEC 60947-2 – 380…415 V AC 50/60 Hz 5 kA 50 % conforming to IEC 60947-2 – 440 V AC 50/60 Hz 7500 A 75 % conforming to EN 60898-1 – 400 V AC 50/60 Hz 7500 A 75 % conforming to IEC 60898-1 – 400 V AC 50/60 Hz 21 kA 50 % conforming to IEC 60947-2 – 12…133 V AC 50/60 Hz 21 kA 50 % conforming to EN 60947-2 – 12…133 V AC 50/60 Hz 15 kA 100 % conforming to IEC 60947-2 – 180…250 V DC 15 kA 100 % conforming to EN 60947-2 – 180…250 V DC |
| Limitation class | 3 conforming to EN 60898-1 3 conforming to IEC 60898-1 |
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz conforming to EN 60947-2 500 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to EN 60947-2 6 kV conforming to IEC 60947-2 |
| Contact position indicator | Yes |
| control type | Toggle |
| local signalling | Trip indicator |
| Mounting mode | Fixed |
| mounting support | DIN rail |
| Comb busbar and distribution block compatibility | Top or bottom: YES |
| 9 mm pitches | 8 |
| height | 85 mm |
| Width | 72 mm |
| Depth | 78.5 mm |
| Net weight | 0.5 kg |
| Colour | White |
| Mechanical durability | 20000 cycles |
| Electrical durability | 10000 cycles |
| Connections – terminals | Single terminal (top or bottom) 1…25 mm² rigid Single terminal (top or bottom) 1…16 mm² flexible |
| Wire stripping length | 14 mm for top or bottom connection |
| Tightening torque | 2 N.m top or bottom |
| earth-leakage protection | Separate block |
| IP degree of protection | IP20 conforming to IEC 60529 IP20 conforming to EN 60529 |
|---|---|
| Pollution degree | 3 conforming to EN 60947-2 3 conforming to IEC 60947-2 |
| Overvoltage category | IV |
| Tropicalisation | 2 conforming to IEC 60068-1 |
| Relative humidity | 95 % at 55 °C |
| Operating altitude | 0…2000 m |
| ambient air temperature for operation | -35…70 °C |
| Ambient air temperature for storage | -40…85 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.5 cm |
| Package 1 Width | 7.2 cm |
| Package 1 Length | 9.5 cm |
| Package 1 Weight | 461.0 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 3 |
| Package 2 Height | 8.0 cm |
| Package 2 Width | 9.8 cm |
| Package 2 Length | 22.5 cm |
| Package 2 Weight | 1.447 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 33 |
| Package 3 Height | 30.0 cm |
| Package 3 Width | 30.0 cm |
| Package 3 Length | 40.0 cm |
| Package 3 Weight | 16.413 kg |
| Warranty | 18 months |
|---|
