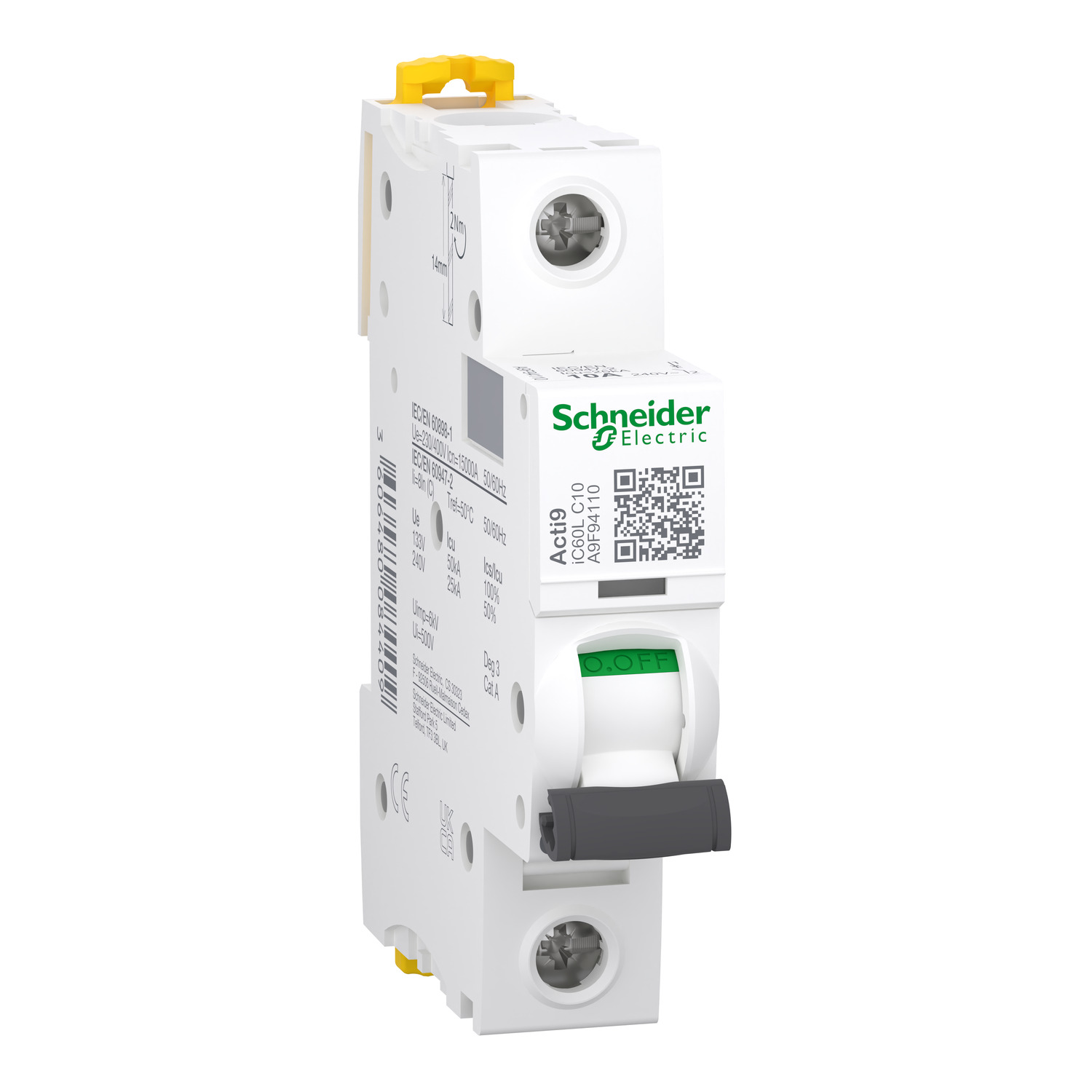

Schneider A9F94110 | Miniature circuit-breaker, Acti9 iC60L, 1P, 10 A, C curve, 15000 A (IEC 60898-1), 25 kA (IEC 60947-2)
Schneider A9F94110 Description
Introduction to Schneider A9F94110 Circuit Breaker
In the realm of electrical systems, safety is paramount. One of the fundamental components ensuring safety is the circuit breaker. Among the myriad options available in the market, Schneider Electric stands out with its A9F94110 circuit breaker, renowned for its reliability, efficiency, and advanced features.
Understanding the Importance of Circuit Breakers
Before delving into the specifics of Schneider A9F94110, it’s crucial to grasp the significance of circuit breakers. Essentially, circuit breakers act as the guardians of electrical circuits, interrupting the flow of electricity in case of overload or short circuit, thus preventing potential damage to equipment and mitigating the risk of electrical hazards such as fires.
Features and Specifications of Schneider A9F94110
Schneider A9F94110 boasts a myriad of features tailored to meet the diverse needs of electrical installations:
- Voltage Rating: The A9F94110 is designed to operate efficiently within a specified voltage range, ensuring compatibility with various electrical systems.
- Current Rating: With a defined current rating, this circuit breaker can handle specific loads without compromising performance or safety.
- Tripping Characteristics: Schneider A9F94110 offers customizable tripping characteristics, allowing users to adjust settings based on the application requirements.
- Mounting Type: Whether it’s surface-mounted or flush-mounted installations, the A9F94110 offers versatility and ease of integration.
- Breaking Capacity: Equipped with high breaking capacity, this circuit breaker can swiftly interrupt the flow of current under fault conditions, safeguarding the connected devices.
Applications of Schneider A9F94110
The versatility of Schneider A9F94110 extends across various applications, including residential, commercial, and industrial sectors. From safeguarding household appliances to protecting sophisticated industrial machinery, this circuit breaker proves its reliability in diverse settings.
Installation Guide for Schneider A9F94110
Installing Schneider A9F94110 requires meticulous attention to detail and adherence to safety protocols:
- Pre-installation Checks: Before commencing the installation process, ensure compatibility with the existing electrical system and verify the integrity of the circuit breaker.
- Installation Process: Follow the manufacturer’s guidelines and wiring diagrams meticulously to ensure correct installation and optimal performance.
- Safety Measures: Prioritize safety by disconnecting power sources, using appropriate protective gear, and adhering to safety standards throughout the installation process.
Maintenance Tips for Schneider A9F94110
Regular maintenance is essential to prolong the lifespan and ensure the efficiency of Schneider A9F94110:
- Conduct periodic inspections to identify any signs of wear or damage.
- Clean the circuit breaker and surrounding area to prevent accumulation of dust and debris.
- Test the functionality of the circuit breaker using recommended procedures and equipment.
Troubleshooting Common Issues
Despite its reliability, Schneider A9F94110 may encounter occasional issues. Common troubleshooting steps include:
- Checking for loose connections or faulty wiring.
- Resetting the circuit breaker and verifying the continuity of the circuit.
- Seeking professional assistance if the issue persists or if there are indications of internal damage.
Benefits of Choosing Schneider A9F94110
Opting for Schneider A9F94110 offers a plethora of benefits:
- Enhanced safety and protection against electrical hazards.
- Reliable performance even under challenging conditions.
- Versatile applications across various industries and settings.
- Peace of mind with Schneider Electric’s reputation for quality and innovation.
Comparing Schneider A9F94110 with Competitors
In a competitive market landscape, it’s essential to compare Schneider A9F94110 with rival products in terms of features, performance, and value proposition. Conducting a comprehensive analysis enables informed decision-making and ensures optimal suitability for specific requirements.
Customer Reviews and Feedback
Feedback from end-users provides valuable insights into the real-world performance and user experience of Schneider A9F94110. Analyzing customer reviews and testimonials aids in understanding its strengths, weaknesses, and areas for improvement.
Cost Analysis: Is Schneider A9F94110 Worth It?
While cost is a significant factor in purchasing decisions, it’s essential to evaluate the overall value proposition offered by Schneider A9F94110. Conducting a cost-benefit analysis considering factors such as performance, reliability, and long-term savings enables a comprehensive assessment of its worthiness.
Sustainability and Environmental Impact
In an era of increasing environmental consciousness, assessing the sustainability credentials of Schneider A9F94110 is crucial. Factors such as energy efficiency, recyclability, and adherence to eco-friendly manufacturing practices contribute to its environmental impact.
Warranty and After-sales Support
Schneider Electric’s commitment to customer satisfaction extends beyond the point of purchase. Comprehensive warranty coverage and responsive after-sales support ensure peace of mind and prompt resolution of any issues that may arise post-installation.
Future Developments and Upgrades
As technology evolves, Schneider Electric remains at the forefront of innovation, continuously enhancing its products to meet emerging needs and challenges. Keeping abreast of future developments and upgrades ensures ongoing optimization and compatibility with evolving electrical systems.
Conclusion: The Verdict on Schneider A9F94110
In conclusion, Schneider A9F94110 emerges as a top contender in the realm of circuit breakers, offering a compelling blend of reliability, efficiency, and advanced features. Its versatility, safety features, and robust performance make it a preferred choice for diverse applications across residential, commercial, and industrial sectors.
FAQs
- Is Schneider A9F94110 suitable for outdoor installations?Yes, Schneider A9F94110 is designed to withstand various environmental conditions, making it suitable for outdoor installations when properly protected.
- Can Schneider A9F94110 be used for both single-phase and three-phase applications?Absolutely! Schneider A9F94110 is versatile enough to be used in both single-phase and three-phase systems, offering flexibility and convenience.
- What is the typical lifespan of Schneider A9F94110?Schneider A9F94110 is built to last, with a typical lifespan exceeding several years under normal operating conditions.
- **Does Schneider A9F
| Device application | Distribution |
|---|---|
| Range | Acti9 |
| Product name | Acti9 iC60 |
| Product or component typee | Miniature circuit-breaker |
| Device short name | iC60L |
| Poles description | 1P |
| Number of protected poles | 1 |
| [In] rated current | 10 A |
| Network type | AC DC |
| Trip unit technology | Thermal-magnetic |
| Curve code | C |
| Breaking capacity | 15000 A Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60898-1 50 kA Icu at 100…133 V AC 50/60 Hz conforming to EN/IEC 60947-2 70 kA Icu at 12…60 V AC 50/60 Hz conforming to EN/IEC 60947-2 20 kA Icu at 60…72 V DC conforming to EN/IEC 60947-2 25 kA Icu at 12…60 V DC conforming to EN/IEC 60947-2 25 kA Icu at 220…240 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
| Utilisation category | Category A conforming to EN 60947-2 Category A conforming to IEC 60947-2 |
| Suitability for isolation | Yes conforming to EN 60898-1 Yes conforming to EN 60947-2 Yes conforming to IEC 60898-1 Yes conforming to IEC 60947-2 |
| Standards | IEC 60898-1 EN 60947-2 EN 60898-1 IEC 60947-2 |
| Network frequency | 50/60 Hz |
|---|---|
| Magnetic tripping limit | 8 x In +/- 20 % |
| [Ics] rated service breaking capacity | 12.5 kA 50 % conforming to EN 60947-2 – 220…240 V AC 50/60 Hz 12.5 kA 50 % conforming to IEC 60947-2 – 220…240 V AC 50/60 Hz 35 kA 50 % conforming to EN 60947-2 – 12…60 V AC 50/60 Hz 35 kA 50 % conforming to IEC 60947-2 – 12…60 V AC 50/60 Hz 25 kA 50 % conforming to EN 60947-2 – 100…133 V AC 50/60 Hz 25 kA 50 % conforming to IEC 60947-2 – 100…133 V AC 50/60 Hz 7500 A 50 % conforming to EN 60898-1 – 230 V AC 50/60 Hz 7500 A 50 % conforming to IEC 60898-1 – 230 V AC 50/60 Hz 20 kA 100 % conforming to EN 60947-2 – 72 V DC 20 kA 100 % conforming to IEC 60947-2 – 72 V DC 25 kA 100 % conforming to EN 60947-2 – 12…60 V DC 25 kA 100 % conforming to IEC 60947-2 – 12…60 V DC |
| Limitation class | 3 conforming to EN 60898-1 3 conforming to IEC 60898-1 |
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz conforming to EN 60947-2 500 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to EN 60947-2 6 kV conforming to IEC 60947-2 |
| Contact position indicator | Yes |
| control type | Toggle |
| local signalling | Trip indicator |
| Mounting mode | Fixed |
| mounting support | DIN rail |
| Comb busbar and distribution block compatibility | Top or bottom: YES |
| 9 mm pitches | 2 |
| height | 85 mm |
| Width | 18 mm |
| Depth | 78.5 mm |
| Net weight | 0.215 kg |
| Colour | White |
| Mechanical durability | 20000 cycles |
| Electrical durability | 10000 cycles |
| Connections – terminals | Single terminal (top or bottom) 1…25 mm² rigid Single terminal (top or bottom) 1…16 mm² flexible |
| Wire stripping length | 14 mm for top or bottom connection |
| Tightening torque | 2 N.m top or bottom |
| earth-leakage protection | Without |
| IP degree of protection | IP20 conforming to IEC 60529 IP20 conforming to EN 60529 |
|---|---|
| Pollution degree | 3 conforming to EN 60947-2 3 conforming to IEC 60947-2 |
| Overvoltage category | IV |
| Tropicalisation | 2 conforming to IEC 60068-1 |
| Relative humidity | 95 % at 55 °C |
| Operating altitude | 0…2000 m |
| ambient air temperature for operation | -35…70 °C |
| Ambient air temperature for storage | -40…85 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.000 cm |
| Package 1 Width | 7.500 cm |
| Package 1 Length | 9.500 cm |
| Package 1 Weight | 110.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 8.500 cm |
| Package 2 Width | 10.000 cm |
| Package 2 Length | 22.500 cm |
| Package 2 Weight | 1.389 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 132 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 15.683 kg |
| Warranty | 18 months |
|---|
