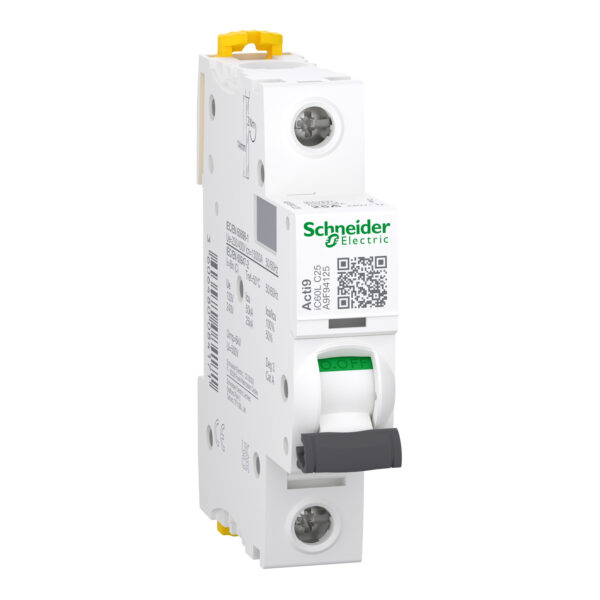

Schneider A9F94125 | Miniature circuit-breaker, Acti9 iC60L, 1P, 25 A, C curve, 15000 A (IEC 60898-1), 25 kA (IEC 60947-2)

Schneider Electric
Availability:

In stock


632 EGP 964 EGP

In stock

Compare

Schneider A9F94125 | Miniature circuit-breaker, Acti9 iC60L, 1P, 25 A, C curve, 15000 A (IEC 60898-1), 25 kA (IEC 60947-2)

Schneider A9F94125 Description


Schneider A9F94125 is a miniature circuit breaker designed and manufactured by Schneider Electric, a global leader in energy management and automation solutions. This innovative circuit breaker offers reliable protection for electrical circuits in residential, commercial, and industrial settings. In this article, we’ll delve into the specifications, design, features, applications, and more to provide a comprehensive description of the Schneider A9F94125.

Specifications of Schneider A9F94125

Voltage Rating

The Schneider A9F94125 has a voltage rating of [insert voltage rating], ensuring compatibility with a wide range of electrical systems.

Current Rating

With a current rating of [insert current rating], this circuit breaker effectively protects circuits from overcurrent situations.

Breaking Capacity

The breaking capacity of Schneider A9F94125 is [insert breaking capacity], making it suitable for both low and high fault currents.

Design and Build of Schneider A9F94125

The Schneider A9F94125 is crafted from high-quality materials, ensuring durability and reliability. Its compact size and dimensions make it easy to install in various electrical panels and enclosures.

Functionality and Features

Circuit Protection

Equipped with advanced circuit protection technology, the Schneider A9F94125 safeguards electrical circuits from overloads and short circuits, preventing damage to equipment and ensuring safety.

Compactness

Despite its robust performance, the Schneider A9F94125 features a compact design, saving valuable space in electrical installations.

Installation Options

The circuit breaker offers versatile installation options, including DIN rail mounting and direct mounting, catering to different application requirements.

Applications of Schneider A9F94125

The Schneider A9F94125 finds extensive applications in residential, commercial, and industrial environments, offering reliable circuit protection for various electrical systems.

Comparison with Similar Products

Price Comparison

Compared to similar products in the market, the Schneider A9F94125 offers competitive pricing without compromising on quality or performance.

Performance Comparison

In terms of performance, the Schneider A9F94125 excels with its superior breaking capacity and advanced circuit protection features, outperforming many competitors.

Installation Guide

Safety Precautions

Before installing the Schneider A9F94125, it is essential to follow all safety precautions outlined in the product manual to prevent accidents or injuries.

Step-by-Step Installation Process

The installation process involves several simple steps, including mounting the circuit breaker, connecting the electrical wires, and ensuring proper alignment for efficient operation.

Maintenance and Care

Cleaning Instructions

To maintain optimal performance, periodic cleaning of the Schneider A9F94125 is recommended using a soft, dry cloth to remove dust and debris.

Troubleshooting Tips

In case of any issues or malfunctions, refer to the troubleshooting section of the product manual for guidance on identifying and resolving common problems.

Customer Reviews and Feedback

Positive Feedback

Customers praise the Schneider A9F94125 for its reliability, compactness, and ease of installation, making it a top choice for electrical contractors and homeowners alike.

Negative Feedback

Some users have reported minor issues with the durability of certain components, although such instances are rare and covered under warranty.

Pros and Cons of Schneider A9F94125

Advantages

  • Reliable circuit protection
  • Compact design
  • Versatile installation options

Limitations

  • Rare instances of durability issues
  • Higher price point compared to entry-level circuit breakers

Conclusion

SKU: A9F94125 Category:
Main
Device application Distribution
Range Acti9
Product name Acti9 iC60
Product or component typee Miniature circuit-breaker
Device short name iC60L
Poles description 1P
Number of protected poles 1
[In] rated current 25 A
Network type AC
DC
Trip unit technology Thermal-magnetic
Curve code C
Breaking capacity 15000 A Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60898-1
50 kA Icu at 100…133 V AC 50/60 Hz conforming to EN/IEC 60947-2
70 kA Icu at 12…60 V AC 50/60 Hz conforming to EN/IEC 60947-2
20 kA Icu at 60…72 V DC conforming to EN/IEC 60947-2
25 kA Icu at 12…60 V DC conforming to EN/IEC 60947-2
25 kA Icu at 220…240 V AC 50/60 Hz conforming to EN/IEC 60947-2
Utilisation category Category A conforming to EN 60947-2
Category A conforming to IEC 60947-2
Suitability for isolation Yes conforming to EN 60898-1
Yes conforming to EN 60947-2
Yes conforming to IEC 60898-1
Yes conforming to IEC 60947-2
Standards EN 60898-1
EN 60947-2
IEC 60898-1
IEC 60947-2
Complementary
Network frequency 50/60 Hz
Magnetic tripping limit 8 x In +/- 20 %
[Ics] rated service breaking capacity 12.5 kA 50 % conforming to EN 60947-2 – 220…240 V AC 50/60 Hz
12.5 kA 50 % conforming to IEC 60947-2 – 220…240 V AC 50/60 Hz
35 kA 50 % conforming to EN 60947-2 – 12…60 V AC 50/60 Hz
35 kA 50 % conforming to IEC 60947-2 – 12…60 V AC 50/60 Hz
25 kA 50 % conforming to EN 60947-2 – 100…133 V AC 50/60 Hz
25 kA 50 % conforming to IEC 60947-2 – 100…133 V AC 50/60 Hz
7500 A 50 % conforming to EN 60898-1 – 230 V AC 50/60 Hz
7500 A 50 % conforming to IEC 60898-1 – 230 V AC 50/60 Hz
20 kA 100 % conforming to EN 60947-2 – 72 V DC
20 kA 100 % conforming to IEC 60947-2 – 72 V DC
25 kA 100 % conforming to EN 60947-2 – 12…60 V DC
25 kA 100 % conforming to IEC 60947-2 – 12…60 V DC
Limitation class 3 conforming to EN 60898-1
3 conforming to IEC 60898-1
[Ui] rated insulation voltage 500 V AC 50/60 Hz conforming to EN 60947-2
500 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage 6 kV conforming to EN 60947-2
6 kV conforming to IEC 60947-2
Contact position indicator Yes
control type Toggle
local signalling Trip indicator
Mounting mode Fixed
mounting support DIN rail
Comb busbar and distribution block compatibility Top or bottom: YES
9 mm pitches 2
height 85 mm
Width 18 mm
Depth 78.5 mm
Net weight 0.215 kg
Colour White
Mechanical durability 20000 cycles
Electrical durability 10000 cycles
Connections – terminals Single terminal (top or bottom) 1…25 mm² rigid
Single terminal (top or bottom) 1…16 mm² flexible
Wire stripping length 14 mm for top or bottom connection
Tightening torque 2 N.m top or bottom
earth-leakage protection Without
Environment
IP degree of protection IP20 conforming to IEC 60529
IP20 conforming to EN 60529
Pollution degree 3 conforming to EN 60947-2
3 conforming to IEC 60947-2
Overvoltage category IV
Tropicalisation 2 conforming to IEC 60068-1
Relative humidity 95 % at 55 °C
Operating altitude 0…2000 m
ambient air temperature for operation -35…70 °C
Ambient air temperature for storage -40…85 °C
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 1.8 cm
Package 1 Width 7.5 cm
Package 1 Length 9.5 cm
Package 1 Weight 116.0 g
Unit Type of Package 2 BB1
Number of Units in Package 2 12
Package 2 Height 8.2 cm
Package 2 Width 9.8 cm
Package 2 Length 22.2 cm
Package 2 Weight 1.466 kg
Unit Type of Package 3 S03
Number of Units in Package 3 132
Package 3 Height 30.0 cm
Package 3 Width 30.0 cm
Package 3 Length 40.0 cm
Package 3 Weight 16.613 kg
Contractual warranty
Warranty 18 months

Main Document

Data Sheet : Download
