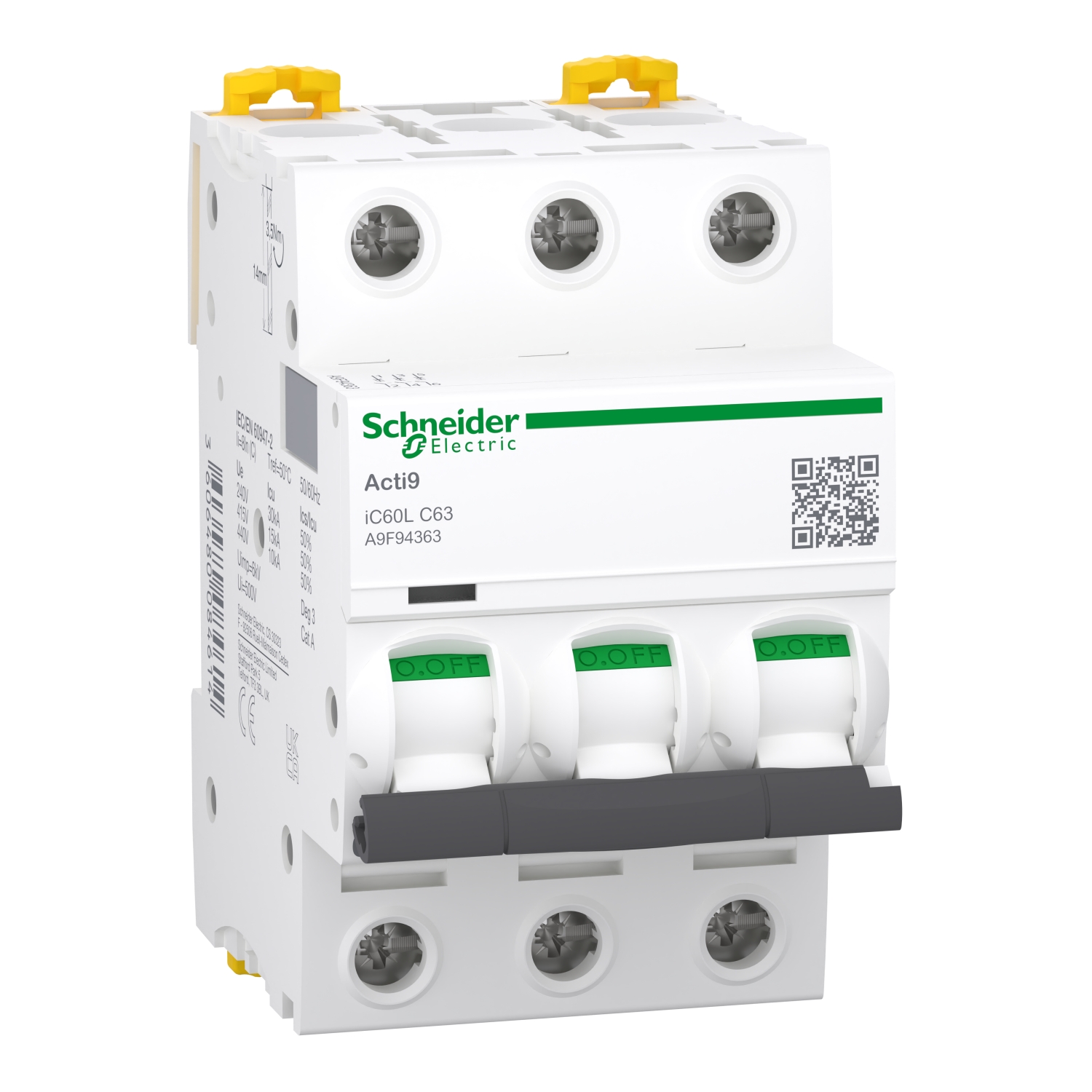

CompareSchneider A9F94363 | Miniature circuit-breaker, Acti9 iC60L, 3P, 63 A, C curve, 15 kA (IEC 60947-2)
The Schneider A9F94363 is a highly reliable miniature circuit breaker (MCB) designed to provide excellent protection against electrical overloads and short circuits. Whether you are working on a residential, commercial, or industrial project, understanding the features and benefits of the A9F94363 can help ensure your electrical system is both safe and efficient.
What is the Schneider A9F94363?
The Schneider A9F94363 is a miniature circuit breaker (MCB) from Schneider Electric’s Acti9 range. It is specifically designed to protect electrical circuits from damage caused by overloads or short circuits, ensuring the safety and reliability of the system.
Key Components:
- Breaker Unit: The main component that disconnects the circuit during an overload or short circuit.
- Trip Mechanism: A system that activates the breaker when it detects an unsafe condition.
- Terminals: Connects the MCB to the electrical wiring in the panel.
Key Features of Schneider A9F94363
High-Quality Build
The A9F94363 is built with top-notch materials that ensure long-lasting durability. It is designed to withstand the rigors of everyday use in various environments, making it a reliable choice for electrical protection.
Compact Design
Despite its robust capabilities, the A9F94363 features a compact design that makes it easy to install even in spaces where room is limited. This compactness does not compromise its performance, making it a versatile option for different setups.
Advanced Protection Mechanisms
This MCB is equipped with advanced protection features that provide a quick and effective response to electrical faults. It ensures that circuits are promptly disconnected in the event of an overload or short circuit, preventing damage to equipment and reducing fire hazards.
Technical Specifications
Electrical Characteristics
- Rated Current: Details on the current rating that the A9F94363 can safely handle.
- Voltage Rating: Suitable voltage range for the breaker.
- Breaking Capacity: The maximum fault current the breaker can interrupt.
Mechanical Dimensions
- Size: Physical dimensions of the A9F94363, important for panel fitting.
- Weight: Lightweight design that facilitates easy installation.
Operating Conditions
- Temperature Range: Suitable operating temperature for optimal performance.
- Altitude: Maximum altitude at which the breaker can be used effectively.
Advantages of Using Schneider A9F94363
Enhanced Safety
The A9F94363 is designed to provide superior protection against electrical faults, reducing the risk of fire, equipment damage, and personal injury. Its quick response time ensures that dangerous conditions are swiftly addressed.
Reliability and Durability
This circuit breaker is built to last, offering reliable protection over its lifespan. The quality of its construction and the precision of its mechanisms ensure consistent performance.
Applications of Schneider A9F94363
Residential Electrical Panels
The A9F94363 is ideal for use in residential electrical panels, providing essential protection for household circuits. It ensures that everyday electrical loads, such as lighting and appliances, are safely managed.
Commercial Buildings
In commercial settings, the A9F94363 helps protect complex electrical systems that power lighting, HVAC, and other critical systems. Its reliable performance ensures that business operations run smoothly.
Industrial Facilities
For industrial applications, the A9F94363 offers robust protection for heavy machinery and high-load equipment. It is well-suited to environments where reliable circuit protection is crucial to maintaining safety and productivity.
| brands |
|---|
| Device application | Distribution |
|---|---|
| Range | Acti9 |
| Product name | Acti9 iC60 |
| Product or component type | Miniature circuit-breaker |
| Device short name | iC60L |
| poles description | 3P |
| Number of protected poles | 3 |
| [In] rated current | 63 A |
| network type | DC AC |
| Trip unit technology | Thermal-magnetic |
| Curve code | C |
| Breaking capacity | 10 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2 15 kA Icu at 380…415 V AC 50/60 Hz conforming to EN/IEC 60947-2 30 kA Icu at 220…240 V AC 50/60 Hz conforming to EN/IEC 60947-2 70 kA Icu at 12…60 V AC 50/60 Hz conforming to EN/IEC 60947-2 70 kA Icu at 100…133 V AC 50/60 Hz conforming to EN/IEC 60947-2 20 kA Icu at <= 180 V DC conforming to EN/IEC 60947-2 |
| Utilisation category | Category A conforming to EN 60947-2 Category A conforming to IEC 60947-2 |
| Suitability for isolation | Yes conforming to EN 60947-2 Yes conforming to IEC 60947-2 |
| Standards | EN 60947-2 IEC 60947-2 |
| Network frequency | 50/60 Hz |
|---|---|
| Magnetic tripping limit | 8 x In +/- 20 % |
| [Ics] rated service breaking capacity | 15 kA 50 % conforming to EN 60947-2 – 220…240 V AC 50/60 Hz 7.5 kA 50 % conforming to EN 60947-2 – 380…415 V AC 50/60 Hz 5 kA 50 % conforming to EN 60947-2 – 440 V AC 50/60 Hz 15 kA 50 % conforming to IEC 60947-2 – 220…240 V AC 50/60 Hz 7.5 kA 50 % conforming to IEC 60947-2 – 380…415 V AC 50/60 Hz 5 kA 50 % conforming to IEC 60947-2 – 440 V AC 50/60 Hz 35 kA 50 % conforming to EN 60947-2 – 12…133 V AC 50/60 Hz 35 kA 50 % conforming to IEC 60947-2 – 12…133 V AC 50/60 Hz 20 kA 100 % conforming to EN 60947-2 – 125…180 V DC 20 kA 100 % conforming to IEC 60947-2 – 125…180 V DC |
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz conforming to EN 60947-2 500 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to EN 60947-2 6 kV conforming to IEC 60947-2 |
| Contact position indicator | Yes |
| Control type | Toggle |
| local signalling | Trip indicator |
| Mounting mode | Fixed |
| Mounting support | DIN rail |
| Comb busbar and distribution block compatibility | Top or bottom: YES |
| 9 mm pitches | 6 |
| Height | 85 mm |
| Width | 54 mm |
| Depth | 78.5 mm |
| Net weight | 0.375 kg |
| Colour | White |
| Mechanical durability | 20000 cycles |
| Electrical durability | 10000 cycles |
| Connections – terminals | Single terminal (top or bottom) 1…35 mm² rigid Single terminal (top or bottom) 1…25 mm² flexible |
| Wire stripping length | 14 mm for top or bottom connection |
| Tightening torque | 3.5 N.m top or bottom |
| Earth-leakage protection | Separate block |
| IP degree of protection | IP20 conforming to IEC 60529 IP20 conforming to EN 60529 |
|---|---|
| Pollution degree | 3 conforming to EN 60947-2 3 conforming to IEC 60947-2 |
| Overvoltage category | IV |
| Tropicalisation | 2 conforming to IEC 60068-1 |
| Relative humidity | 95 % at 55 °C |
| Operating altitude | 0…2000 m |
| Ambient air temperature for operation | -35…70 °C |
| Ambient air temperature for storage | -40…85 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.500 cm |
| Package 1 Width | 5.500 cm |
| Package 1 Length | 9.500 cm |
| Package 1 Weight | 396.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 8.400 cm |
| Package 2 Width | 10.000 cm |
| Package 2 Length | 22.500 cm |
| Package 2 Weight | 1.643 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 44 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 18.550 kg |
| Warranty | 18 months |
|---|
