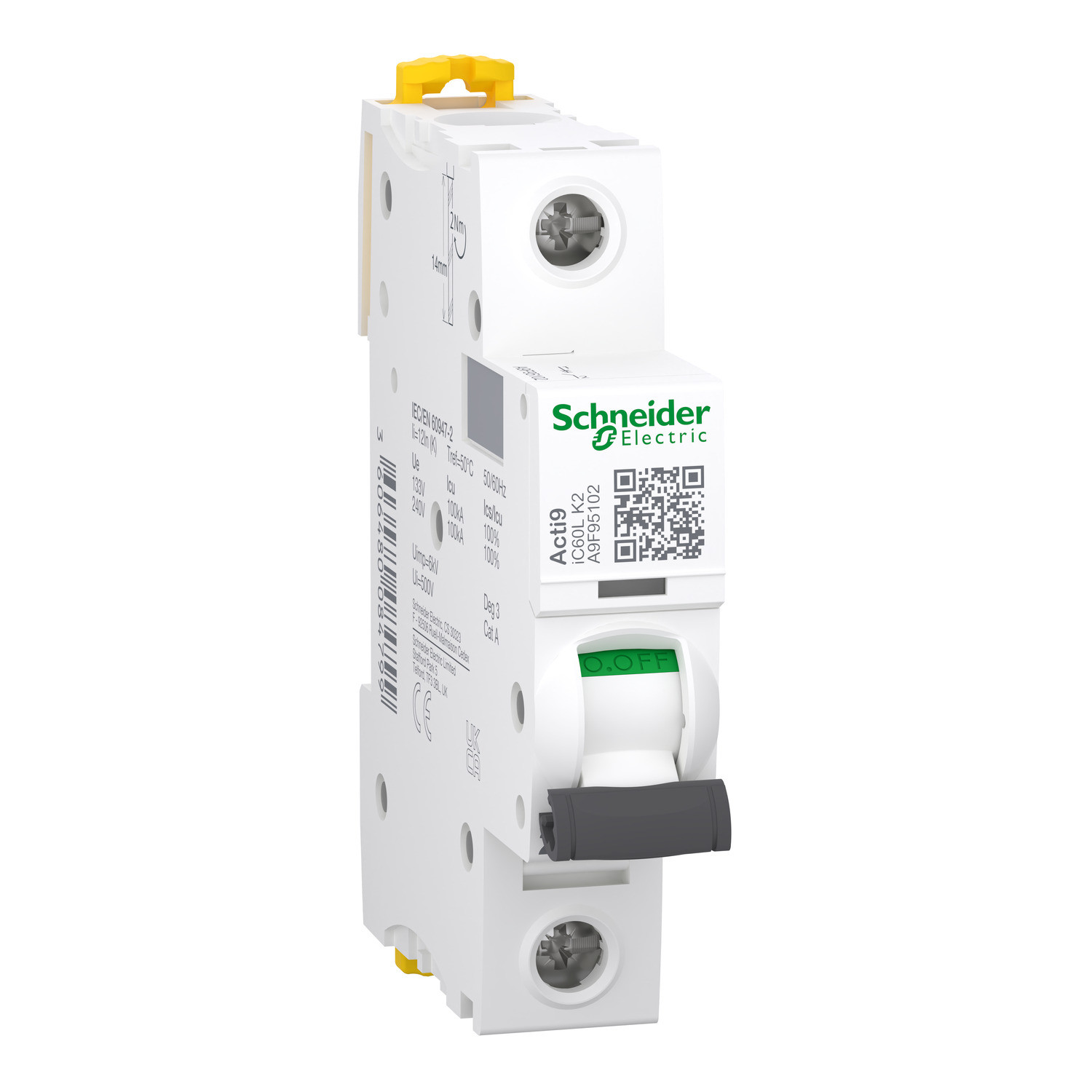

Schneider A9F95102 | Miniature circuit breaker (MCB), Acti9 iC60L, 1P, 2A, K curve, 15000A (IEC/EN 60898-1), 100kA (IEC/EN 60947-2)
Original price was: 730.84 EGP.478.70 EGPCurrent price is: 478.70 EGP.
Shipping calculated at checkout.
A9F95102 by Schneider Electric: Your Safety Partner
The A9F95102 from Schneider Electric is more than just a miniature circuit breaker (MCB); it’s an essential component for ensuring your electrical systems operate safely and efficiently. This premium Acti9 iC60L model is designed to handle a current rating of 2A and is built to meet the stringent IEC/EN 60898-1 and IEC/EN 60947-2 standards. With its robust features, this MCB provides peace of mind for both residential and commercial applications.
Reliable Performance and Protection
One of the standout benefits of the A9F95102 is its K curve, which ensures optimal protection against overloads and short circuits. This feature is particularly important for safeguarding sensitive electronic devices, as it minimizes the risk of damage due to electrical surges. By utilizing this MCB, you not only protect your equipment but also enhance the reliability of your entire electrical system.
Easy Installation and Maintenance
Installation is straightforward with the A9F95102, allowing electricians and DIY enthusiasts alike to set it up quickly and efficiently. The compact design of this MCB means it takes up minimal space in your distribution board, making it a practical choice for various setups. Furthermore, Schneider Electric has designed this circuit breaker for easy maintenance, ensuring that any necessary checks can be performed without hassle.
High Breaking Capacity
With a breaking capacity of 15,000A (IEC/EN 60898-1) and 100kA (IEC/EN 60947-2), the A9F95102 provides exceptional performance in fault conditions. This high breaking capacity means that even in the event of a severe fault, the circuit breaker will trip quickly, preventing potential damage to wiring and connected devices. This reliability is a game-changer for anyone looking to secure their electrical systems.
Enhanced Safety Features
Safety is paramount, and the A9F95102 doesn’t disappoint. Designed with advanced safety features, it helps in preventing electrical fires and ensuring a safe environment for users. By selecting this MCB, you are investing in not just a product, but a safer future for your home or business.
Conclusion: Choose A9F95102 for Superior Protection
In summary, the Schneider Electric A9F95102 is a top-tier miniature circuit breaker that provides unmatched protection and reliability. It is designed to meet the needs of modern electrical systems while ensuring safety and performance. Make the smart choice today and invest in the A9F95102 for peace of mind in your electrical installations.
| Device application | Distribution |
|---|---|
| Range | Acti9 |
| Product name | Acti9 iC60 |
| Product or component type | Miniature circuit-breaker |
| Device short name | iC60L |
| poles description | 1P |
| Number of protected poles | 1 |
| [In] rated current | 2 A |
| network type | AC DC |
| Trip unit technology | Thermal-magnetic |
| Curve code | K |
| Breaking capacity | 15000 A Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60898-1 100 kA Icu at 12...60 V AC 50/60 Hz conforming to EN/IEC 60947-2 100 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2 100 kA Icu at 100...133 V AC 50/60 Hz conforming to EN/IEC 60947-2 20 kA Icu at 60...72 V DC conforming to EN/IEC 60947-2 25 kA Icu at 12...60 V DC conforming to EN/IEC 60947-2 |
| Utilisation category | Category A conforming to EN 60947-2 Category A conforming to IEC 60947-2 |
| Suitability for isolation | Yes conforming to EN 60947-2 Yes conforming to IEC 60947-2 |
| Standards | IEC 60947-2 EN 60947-2 |
| Network frequency | 50/60 Hz |
|---|---|
| Magnetic tripping limit | 12 x In +/- 20 % |
| [Ics] rated service breaking capacity | 100 kA 100 % conforming to EN 60947-2 - 12...60 V AC 50/60 Hz 100 kA 100 % conforming to EN 60947-2 - 220...240 V AC 50/60 Hz 100 kA 100 % conforming to IEC 60947-2 - 12...60 V AC 50/60 Hz 100 kA 100 % conforming to IEC 60947-2 - 220...240 V AC 50/60 Hz 100 kA 100 % conforming to EN 60947-2 - 100...133 V AC 50/60 Hz 100 kA 100 % conforming to IEC 60947-2 - 100...133 V AC 50/60 Hz 20 kA 100 % conforming to EN 60947-2 - 72 V DC 20 kA 100 % conforming to IEC 60947-2 - 72 V DC 25 kA 100 % conforming to EN 60947-2 - 12...60 V DC 25 kA 100 % conforming to IEC 60947-2 - 12...60 V DC |
| Limitation class | 3 conforming to EN 60898-1 3 conforming to IEC 60898-1 |
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz conforming to EN 60947-2 500 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to EN 60947-2 6 kV conforming to IEC 60947-2 |
| Contact position indicator | Yes |
| Control type | Toggle |
| local signalling | Trip indicator |
| Mounting mode | Fixed |
| Mounting support | DIN rail |
| Comb busbar and distribution block compatibility | Top or bottom: YES |
| 9 mm pitches | 2 |
| Height | 85 mm |
| Width | 18 mm |
| Depth | 78.5 mm |
| Net weight | 0.215 kg |
| Colour | White |
| Mechanical durability | 20000 cycles |
| Electrical durability | 10000 cycles |
| Connections - terminals | Single terminal (top or bottom) 1…25 mm² rigid Single terminal (top or bottom) 1…16 mm² flexible |
| Wire stripping length | 14 mm for top or bottom connection |
| Tightening torque | 2 N.m top or bottom |
| Earth-leakage protection | Without |
| IP degree of protection | IP20 conforming to IEC 60529 IP20 conforming to EN 60529 |
|---|---|
| Pollution degree | 3 conforming to EN 60947-2 3 conforming to IEC 60947-2 |
| Overvoltage category | IV |
| Tropicalisation | 2 conforming to IEC 60068-1 |
| Relative humidity | 95 % at 55 °C |
| Operating altitude | 0...2000 m |
| Ambient air temperature for operation | -35…70 °C |
| Ambient air temperature for storage | -40…85 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.8 cm |
| Package 1 Width | 7.5 cm |
| Package 1 Length | 9.5 cm |
| Package 1 Weight | 113.0 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 8.0 cm |
| Package 2 Width | 9.8 cm |
| Package 2 Length | 22.5 cm |
| Package 2 Weight | 1.412 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 132 |
| Package 3 Height | 30.0 cm |
| Package 3 Width | 30.0 cm |
| Package 3 Length | 40.0 cm |
| Package 3 Weight | 16.019 kg |
| Warranty | 18 months |
|---|
Data Sheet : Download
