Schneider A9K24116 | Miniature circuit-breaker, Acti9 iK60N, 1P, 16 A, C curve, 6000 A (IEC 60898-1)
Out of stock
167.03 EGP 253.08 EGP
Out of stock
Schneider A9K24116 | Miniature circuit-breaker, Acti9 iK60N, 1P, 16 A, C curve, 6000 A (IEC 60898-1)
Product Overview: Schneider A9K24116 Miniature Circuit Breaker
The Schneider Electric A9K24116 is a high-performance miniature circuit breaker (MCB) from the Acti9 iK60N series. Designed for residential, commercial, and light industrial applications, it provides reliable protection against short circuits and overloads with a C curve tripping characteristic and a breaking capacity of 6000 A.
Key Features:
-
Brand: Schneider Electric
-
Series: Acti9 iK60N
-
Model Number: A9K24116
-
Type: Miniature Circuit Breaker (MCB)
-
Standards Compliance: IEC 60898-1
Electrical Specifications:
-
Poles: 1P (Single Pole)
-
Rated Current: 16 A
-
Tripping Curve: C Curve (standard for resistive and inductive loads)
-
Breaking Capacity: 6000 A at 230/400 V AC
-
Rated Voltage: 230/400 V AC
-
Frequency: 50/60 Hz
Protection Functions:
-
Short Circuit Protection:
– Instantaneous trip on high fault currents -
Overload Protection:
– Thermal-magnetic mechanism prevents overheating -
Isolation Function:
– Clearly visible ON/OFF contact status
Design and Mounting:
-
Mounting Type: DIN rail (35 mm)
-
Terminal Type: Screw terminals (top and bottom)
-
Width: 1 module (18 mm)
-
Toggle Position Indicator: Clear ON/OFF marking
-
Color: White/grey body with black toggle
Applications:
-
Final circuit protection in distribution boards
-
Lighting and socket outlet circuits
-
Protection for resistive and inductive loads
-
Suitable for homes, offices, and light industrial buildings
Benefits:
-
Reliable operation under high fault currents
-
Fast installation and wiring
-
Compact size saves panel space
-
Durable, long-lasting build
-
Easy maintenance and reset after tripping
Typical Industries:
-
Residential and Commercial Construction
-
Light Industrial Facilities
-
Retail and Hospitality Sectors
-
Electrical Panel Builders
-
Infrastructure and Utility Projects
| Device application | Distribution |
|---|---|
| Range | Acti9 |
| Product name | Acti9 iK60 |
| Product or component type | Miniature circuit-breaker |
| Device short name | iK60N |
| Poles description | 1P |
| Number of protected poles | 1 |
| [In] rated current | 16 A at 30 °C |
| Network type | AC |
| Trip unit technology | Thermal-magnetic |
| Curve code | C |
| Breaking capacity | 6000 A Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60898-1 |
| Suitability for isolation | Yes conforming to EN/IEC 60898-1 |
| Standards | EN/IEC 60898-1 |
| Network frequency | 50/60 Hz |
|---|---|
| Magnetic tripping limit | 5…10 x In |
| [Ics] rated service breaking capacity | 6000 A 100 % conforming to EN/IEC 60898-1 – 230 V AC 50/60 Hz |
| Limitation class | 3 conforming to EN/IEC 60898-1 |
| [Ui] rated insulation voltage | 440 V AC 50/60 Hz conforming to EN/IEC 60898-1 |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to EN/IEC 60898-1 |
| Contact position indicator | No |
| control type | Toggle |
| local signalling | ON/OFF indication |
| Mounting mode | Clip-on |
| mounting support | DIN rail |
| 9 mm pitches | 2 |
| height | 85 mm |
| Width | 18 mm |
| Depth | 78.5 mm |
| Net weight | 100 g |
| Colour | White |
| Mechanical durability | 20000 cycles |
| Electrical durability | 10000 cycles |
| Locking options description | Padlocking device |
| Connections – terminals | Tunnel type terminal (top or bottom) 1…25 mm² rigid Tunnel type terminal (top or bottom) 1…16 mm² flexible |
| Wire stripping length | 14 mm for top or bottom connection |
| Tightening torque | 2 N.m top or bottom |
| earth-leakage protection | Without |
| IP degree of protection | IP20 conforming to IEC 60529 |
|---|---|
| Pollution degree | 2 conforming to EN/IEC 60898-1 |
| Overvoltage category | III |
| ambient air temperature for operation | -25…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.000 cm |
| Package 1 Width | 7.500 cm |
| Package 1 Length | 9.500 cm |
| Package 1 Weight | 98.100 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 8.500 cm |
| Package 2 Width | 9.500 cm |
| Package 2 Length | 22.000 cm |
| Package 2 Weight | 1.231 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 132 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 14.058 kg |
| Warranty | 18 months |
|---|
| Device application | Distribution |
|---|---|
| Range | Acti9 |
| Product name | Acti9 iK60 |
| Product or component type | Miniature circuit-breaker |
| Device short name | iK60N |
| Poles description | 1P |
| Number of protected poles | 1 |
| [In] rated current | 16 A at 30 °C |
| Network type | AC |
| Trip unit technology | Thermal-magnetic |
| Curve code | C |
| Breaking capacity | 6000 A Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60898-1 |
| Suitability for isolation | Yes conforming to EN/IEC 60898-1 |
| Standards | EN/IEC 60898-1 |
| Network frequency | 50/60 Hz |
|---|---|
| Magnetic tripping limit | 5...10 x In |
| [Ics] rated service breaking capacity | 6000 A 100 % conforming to EN/IEC 60898-1 - 230 V AC 50/60 Hz |
| Limitation class | 3 conforming to EN/IEC 60898-1 |
| [Ui] rated insulation voltage | 440 V AC 50/60 Hz conforming to EN/IEC 60898-1 |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to EN/IEC 60898-1 |
| Contact position indicator | No |
| control type | Toggle |
| local signalling | ON/OFF indication |
| Mounting mode | Clip-on |
| mounting support | DIN rail |
| 9 mm pitches | 2 |
| height | 85 mm |
| Width | 18 mm |
| Depth | 78.5 mm |
| Net weight | 100 g |
| Colour | White |
| Mechanical durability | 20000 cycles |
| Electrical durability | 10000 cycles |
| Locking options description | Padlocking device |
| Connections - terminals | Tunnel type terminal (top or bottom) 1…25 mm² rigid Tunnel type terminal (top or bottom) 1…16 mm² flexible |
| Wire stripping length | 14 mm for top or bottom connection |
| Tightening torque | 2 N.m top or bottom |
| earth-leakage protection | Without |
| IP degree of protection | IP20 conforming to IEC 60529 |
|---|---|
| Pollution degree | 2 conforming to EN/IEC 60898-1 |
| Overvoltage category | III |
| ambient air temperature for operation | -25…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.000 cm |
| Package 1 Width | 7.500 cm |
| Package 1 Length | 9.500 cm |
| Package 1 Weight | 98.100 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 8.500 cm |
| Package 2 Width | 9.500 cm |
| Package 2 Length | 22.000 cm |
| Package 2 Weight | 1.231 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 132 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 14.058 kg |
| Warranty | 18 months |
|---|
Based on 0 reviews
Be the first to review “Schneider A9K24116 | Miniature circuit-breaker, Acti9 iK60N, 1P, 16 A, C curve, 6000 A (IEC 60898-1)”
Related products
-
Acti 9 iK60, Acti 9 iK60, Acti 9 Miniature Circuit Breakers - MCBs, Din rail modular devices, Low Voltage Products and Systems

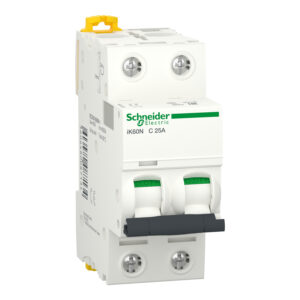

Schneider A9K24225 | Miniature circuit-breaker, Acti9 iK60N, 2P, 25 A, C curve, 6000 A (IEC 60898-1)
