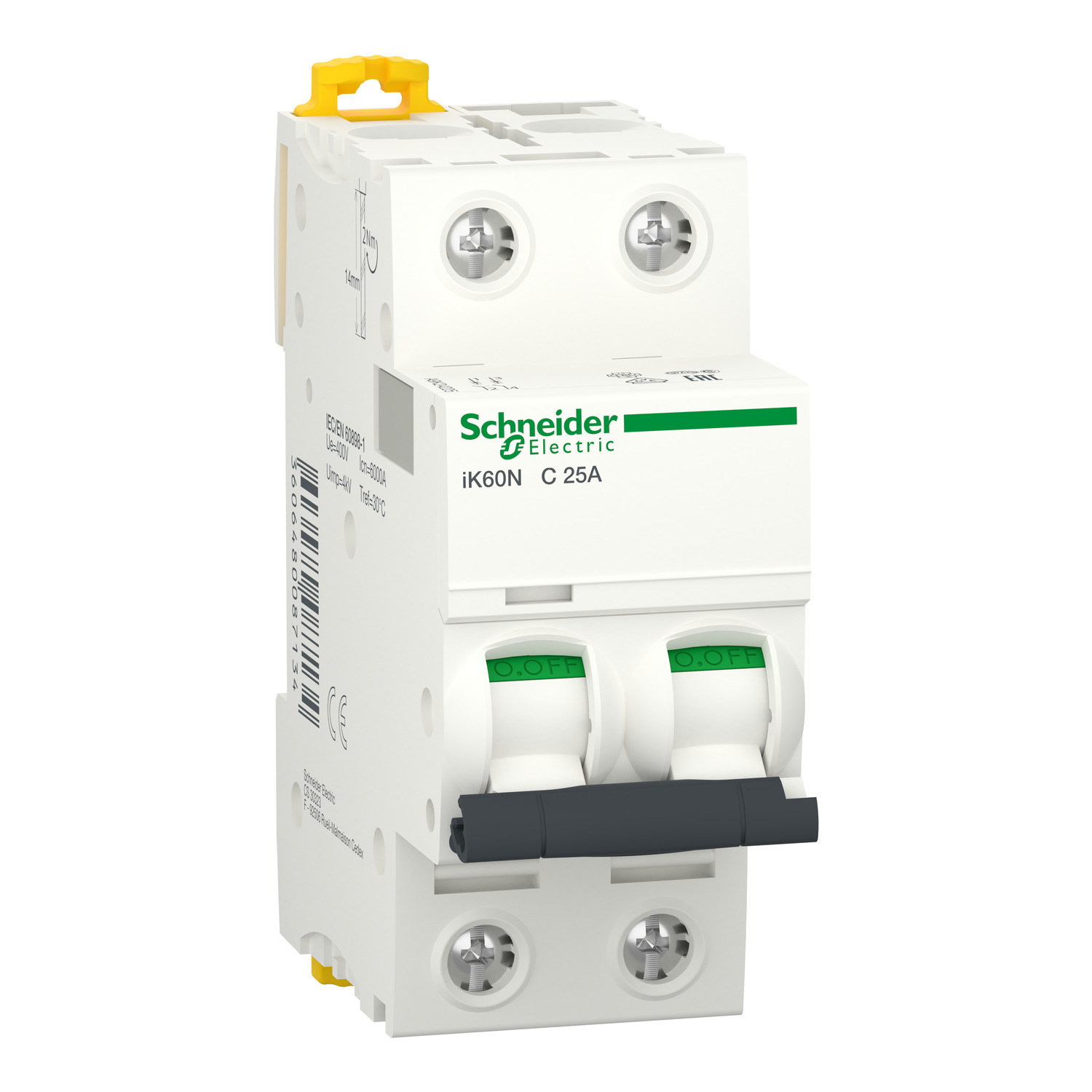

Schneider A9K24225 | Miniature circuit-breaker, Acti9 iK60N, 2P, 25 A, C curve, 6000 A (IEC 60898-1)
Original price was: 1,129.20 EGP.813.20 EGPCurrent price is: 813.20 EGP.
Shipping calculated at checkout.
Schneider A9K24225 | Miniature circuit-breaker, Acti9 iK60N, 2P, 25 A, C curve, 6000 A (IEC 60898-1)
Technical Specifications
-
Product Name: Miniature Circuit Breaker (MCB)
-
Series: Acti9 iK60N
-
Model: A9K24225
-
Number of Poles: 2P (Phase + Neutral)
-
Rated Current: 25 A
-
Tripping Curve: C Curve (trips at 5–10 times the rated current)
-
Rated Voltage: 230/400 V AC
-
Frequency: 50/60 Hz
-
Breaking Capacity: 6000 A (as per IEC 60898-1)
-
Standards: IEC 60898-1
-
Mounting Type: DIN rail
-
Terminal Type: Tunnel terminals (top and bottom)
-
Cable Capacity:
-
Rigid cables: 1.5–25 mm²
-
Flexible cables: 1.5–16 mm²
-
-
IP Protection: IP20 (up to IP40 when mounted inside enclosure)
-
Operating Temperature: -25°C to +70°C
-
Storage Temperature: -40°C to +85°C
-
Certifications: CE, RoHS compliant
-
Dimensions (H x W x D): Approx. 85 x 36 x 78 mm
Key Features
-
Dual-Pole Switching: Ensures simultaneous disconnection of both live and neutral wires, enhancing safety during maintenance.
-
C Curve Sensitivity: Suited for loads with moderate inrush currents such as lights, sockets, and general power circuits.
-
Compact Modular Design: DIN rail mounted for easy installation and integration in any standard distribution board.
-
Durable Construction: Built with flame-retardant materials and high-quality internal components for long-term use.
-
Fast Fault Response: Quick tripping mechanism protects people and equipment from electrical faults.
-
Long Service Life: Engineered for high electrical and mechanical endurance.
Typical Applications
The Schneider A9K24225 is an ideal protection device for:
-
Residential Systems: Protection of general-purpose circuits including lighting, plugs, and air conditioning units.
-
Commercial Installations: Suitable for shops, offices, and small commercial units.
-
Light Industrial Panels: Used in control panels, automation systems, and motor protection where 25 A is required.
-
Power Distribution Boards: Integration in consumer units or distribution panels.
-
Renewable & Backup Systems: Compatible with solar PV and backup power systems for circuit protection.
| Device application | Distribution |
|---|---|
| Range | Acti9 |
| Product name | Acti9 iK60 |
| product or component type | Miniature circuit-breaker |
| Device short name | iK60N |
| Poles description | 2P |
| Number of protected poles | 2 |
| [In] rated current | 25 A at 30 °C |
| Network type | AC |
| Trip unit technology | Thermal-magnetic |
| Curve code | C |
| Breaking capacity | 6000 A Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60898-1 |
| Suitability for isolation | Yes conforming to EN/IEC 60898-1 |
| Standards | EN/IEC 60898-1 |
| Network frequency | 50/60 Hz |
|---|---|
| Magnetic tripping limit | 5...10 x In |
| [Ics] rated service breaking capacity | 6000 A 100 % conforming to EN/IEC 60898-1 - 230 V AC 50/60 Hz |
| Limitation class | 3 conforming to EN/IEC 60898-1 |
| [Ui] rated insulation voltage | 440 V AC 50/60 Hz conforming to EN/IEC 60898-1 |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to EN/IEC 60898-1 |
| Contact position indicator | No |
| Control type | Toggle |
| Local signalling | ON/OFF indication |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| 9 mm pitches | 4 |
| Height | 85 mm |
| Width | 36 mm |
| Depth | 78.5 mm |
| net weight | 200 g |
| Colour | White |
| Mechanical durability | 20000 cycles |
| Electrical durability | 10000 cycles |
| Locking options description | Padlocking device |
| Connections - terminals | Tunnel type terminal (top or bottom) 1…25 mm² rigid Tunnel type terminal (top or bottom) 1…16 mm² flexible |
| Wire stripping length | 14 mm for top or bottom connection |
| Tightening torque | 2 N.m top or bottom |
| earth-leakage protection | Without |
| IP degree of protection | IP20 conforming to IEC 60529 |
|---|---|
| Pollution degree | 2 conforming to EN/IEC 60898-1 |
| Overvoltage category | II |
| Ambient air temperature for operation | -25…60 °C |
| ambient air temperature for storage | -40…85 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.500 cm |
| Package 1 Width | 7.500 cm |
| Package 1 Length | 9.500 cm |
| Package 1 Weight | 199.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 8.500 cm |
| Package 2 Width | 10.000 cm |
| Package 2 Length | 22.000 cm |
| Package 2 Weight | 1.249 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 66 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 14.152 kg |
| Warranty | 18 months |
|---|
