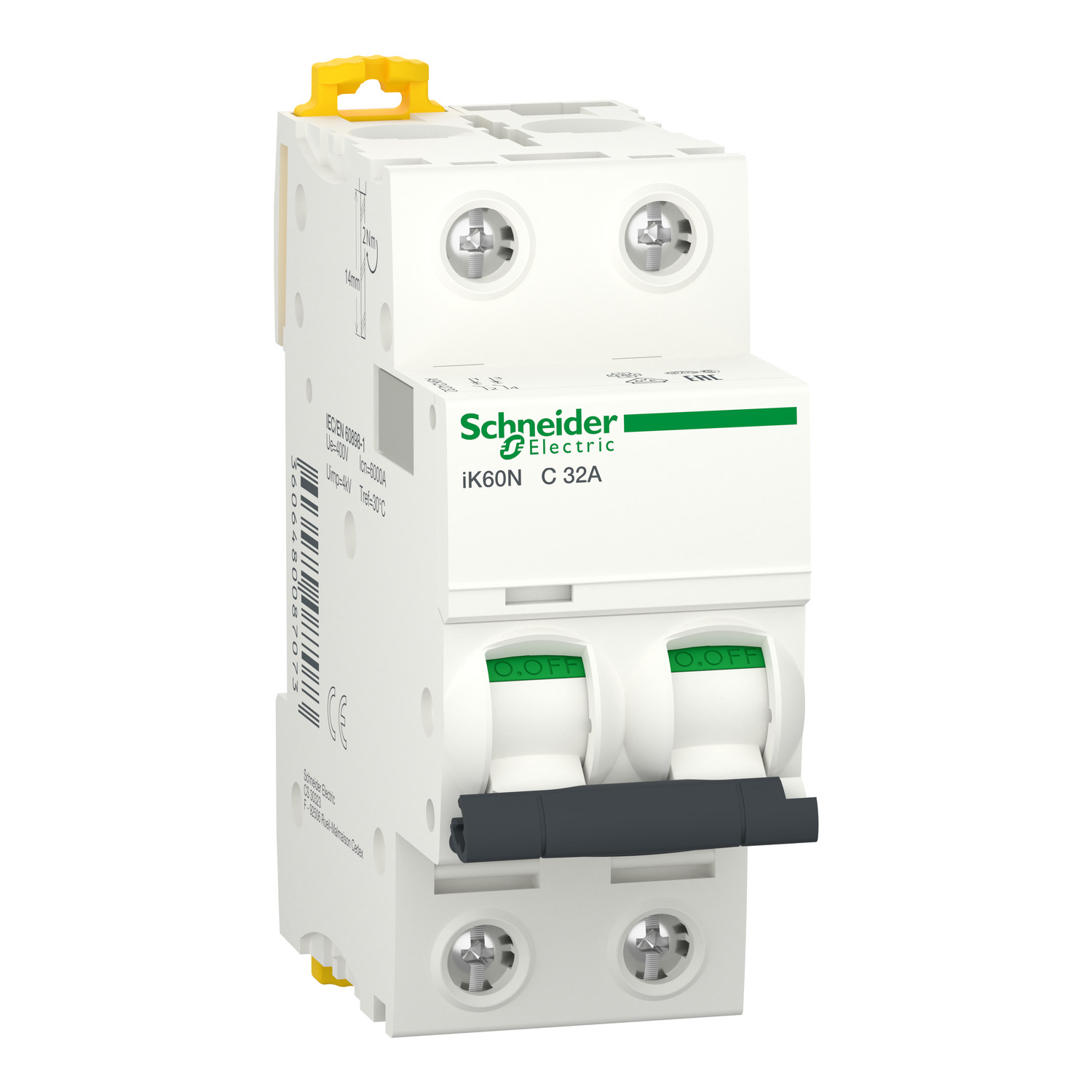

Schneider A9K24240 Acti9 | Miniature circuit-breaker, Acti9 iK60N, 2P, 40 A, C curve, 6000 A (IEC 60898-1)

Schneider Electric
Availability:

In stock


Schneider A9K24240 Acti9

706 EGP 1,008 EGP

In stock

Compare

Schneider A9K24240 Acti9

Circuit breakers are essential components in any electrical system, providing critical protection against overloads and short circuits. Among the top choices in this category is it. In this article, we will explore the features, benefits, and applications of this high-performance circuit breaker.

What is the Schneider A9K24240 Acti9?

The Schneider A9K24240 Acti9 is a cutting-edge circuit breaker designed for a variety of electrical applications. Part of the renowned Acti9 series by Schneider Electric, this device is known for its reliability, efficiency, and advanced safety features.

Basic Description

The A9K24240 Acti9 is a 2-pole circuit breaker with a breaking capacity of 6kA and a rated current of 40A. It is designed to provide protection in low voltage electrical systems, ensuring safety and preventing damage due to electrical faults.

Key Specifications

  • Breaking Capacity: 6kA
  • Rated Current: 40A
  • Poles: 2
  • Voltage Rating: 230/400V AC
  • Tripping Curve: C curve, suitable for protecting general electrical circuits

Features of Schneider A9K24240 Acti9

Compact Design

One of the standout features of the Schneider A9K24240 Acti9 is its compact design. This allows for easy integration into various electrical panels, even in confined spaces.

High Performance

The A9K24240 offers robust performance, handling significant electrical loads and providing reliable protection against overcurrent conditions. Its design ensures minimal downtime and maximum protection for your electrical systems.

Safety Features

Safety is a paramount concern with the Schneider A9K24240 Acti9. It includes advanced features such as fast trip mechanisms, ensuring that any anomalies in the electrical system are quickly detected and addressed to prevent potential hazards.

Benefits of Using Schneider A9K24240 Acti9

Reliability

The Schneider A9K24240 Acti9 is built to last. Its durable construction and reliable performance mean you can trust it to safeguard your electrical installations for years, reducing the need for frequent replacements.

Efficiency

Efficiency is another key benefit. The circuit breaker is designed to operate with minimal power loss, contributing to lower electricity bills and a more sustainable environment.

Cost-Effectiveness

While the initial investment might be higher compared to other circuit breakers, the long-term savings in maintenance and energy costs make the Schneider A9K24240 Acti9 a cost-effective solution.

Applications of Schneider A9K24240 Acti9

Residential Usage

In residential settings, the Schneider A9K24240 Acti9 ensures the safety of household electrical circuits, protecting appliances and preventing electrical fires caused by overloads or short circuits.

Commercial Usage

For commercial buildings, this circuit breaker offers reliable protection for complex electrical systems, ensuring the safety of occupants and equipment.

Industrial Usage

In industrial environments, the Schneider A9K24240 Acti9 can handle high electrical loads, making it ideal for protecting heavy machinery and industrial equipment from electrical faults.

Installation Process

Pre-Installation Checks

Before installing the Schneider A9K24240 Acti9, it’s crucial to perform pre-installation checks. Ensure that the electrical panel is compatible with the circuit breaker and that all necessary tools and safety equipment are available.

Step-by-Step Installation Guide

  1. Turn off the main power supply to ensure safety.
  2. Remove the cover of the electrical panel.
  3. Install the mounting bracket for the circuit breaker if required.
  4. Connect the wires to the appropriate terminals on the circuit breaker.
  5. Secure the circuit breaker in the panel.
  6. Replace the panel cover.
  7. Turn on the main power supply and test the circuit breaker to ensure it’s functioning correctly.

Post-Installation Tips

After installation, regularly check the circuit breaker for any signs of wear or damage. Ensure that it trips appropriately during testing to maintain its reliability.

Maintenance and Troubleshooting

Routine Maintenance

Routine maintenance involves periodically inspecting the circuit breaker for any signs of damage, cleaning it to remove dust and debris, and ensuring that the connections are secure.

Common Issues and Solutions

Common issues with circuit breakers include tripping frequently or not tripping at all. Frequent tripping can indicate an overloaded circuit, while failure to trip may suggest a faulty breaker that needs replacement.

When to Call a Professional

If you encounter persistent issues that you can’t resolve, it’s best to call a professional electrician. They can diagnose and fix more complex problems, ensuring the safety of your electrical system.

Comparison with Other Circuit Breakers

How it Stands Out

The Schneider A9K24240 Acti9 stands out due to its combination of compact design, high performance, and advanced safety features. It’s particularly noted for its reliability and efficiency.

Comparative Analysis with Similar Products

Compared to similar products, the Schneider A9K24240 Acti9 offers better performance and durability. Its advanced safety features and energy efficiency give it an edge over other circuit breakers in its class.

SKU: A9K24240 Categories: ,
Main
Device application Distribution
Range Acti9
Product name Acti9 iK60
Product or component type Miniature circuit-breaker
Device short name iK60N
Poles description 2P
Number of protected poles 2
[In] rated current 40 A at 30 °C
Network type AC
Trip unit technology Thermal-magnetic
Curve code C
Breaking capacity 6000 A Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60898-1
Suitability for isolation Yes conforming to EN/IEC 60898-1
Standards EN/IEC 60898-1
product certifications SNI
Complementary
Network frequency 50/60 Hz
Magnetic tripping limit 5…10 x In
[Ics] rated service breaking capacity 6000 A 100 % conforming to EN/IEC 60898-1 – 230 V AC 50/60 Hz
Limitation class 3 conforming to EN/IEC 60898-1
[Ui] rated insulation voltage 440 V AC 50/60 Hz conforming to EN/IEC 60898-1
[Uimp] rated impulse withstand voltage 4 kV conforming to EN/IEC 60898-1
Contact position indicator No
control type Toggle
local signalling ON/OFF indication
Mounting mode Clip-on
mounting support DIN rail
9 mm pitches 4
height 85 mm
Width 36 mm
Depth 78.5 mm
Net weight 200 g
Colour White
Mechanical durability 20000 cycles
Electrical durability 10000 cycles
Locking options description Padlocking device
Connections – terminals Tunnel type terminal (top or bottom) 1…35 mm² rigid
Tunnel type terminal (top or bottom) 1…25 mm² flexible
Wire stripping length 14 mm for top or bottom connection
Tightening torque 3.5 N.m top or bottom
earth-leakage protection Without
Environment
IP degree of protection IP20 conforming to IEC 60529
Pollution degree 2 conforming to EN/IEC 60898-1
Overvoltage category II
ambient air temperature for operation -25…60 °C
Ambient air temperature for storage -40…85 °C
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 3.6 cm
Package 1 Width 7.5 cm
Package 1 Length 9.4 cm
Package 1 Weight 237 g
Unit Type of Package 2 BB1
Number of Units in Package 2 6
Package 2 Height 8.6 cm
Package 2 Width 9.6 cm
Package 2 Length 21.8 cm
Package 2 Weight 1.49 kg
Unit Type of Package 3 S03
Number of Units in Package 3 66
Package 3 Height 30 cm
Package 3 Width 30 cm
Package 3 Length 40 cm
Package 3 Weight 17.816 kg
Contractual warranty
Warranty 18 months

Main Document

Data Sheet : A9K24240

Based on 0 reviews

0.0 overall
0
0
0
0
0

Be the first to review “Schneider A9K24240 Acti9 | Miniature circuit-breaker, Acti9 iK60N, 2P, 40 A, C curve, 6000 A (IEC 60898-1)”

There are no reviews yet.
