Schneider A9N18361 | Miniature circuit-breaker, Acti9 C120N, 2P, 80 A, C curve, 10000 A (IEC 60898-1), 10 kA (IEC 60947-2)
Original price was: EGP5,138.86.EGP3,366.00Current price is: EGP3,366.00.
Shipping calculated at checkout.
Schneider A9N18361 | Miniature circuit-breaker, Acti9 C120N, 2P, 80 A, C curve, 10000 A (IEC 60898-1), 10 kA (IEC 60947-2)
2. Technical Specifications A9N18361
-
Model: A9N18361
-
Number of Poles: 2P (double pole)
-
Rated Current: 80 Amps
-
Tripping Curve: C Curve
-
Rated Operational Voltage: 400/415 V AC
-
Frequency: 50/60 Hz
-
Breaking Capacity (IEC 60898-1): 10,000 A
-
Breaking Capacity (IEC 60947-2): 10 kA
-
Standard Compliance: IEC 60898-1 and IEC 60947-2
-
Mounting Type: DIN rail mounted
-
Operating Temperature: -25°C to +70°C
-
Degree of Protection: IP20 (when mounted inside a closed panel)
3. Key Features
-
High Safety and Protection: Provides reliable protection against overloads and short circuits.
-
C Curve Tripping: Suitable for applications with moderate inrush currents such as motors, HVAC systems, and lighting loads.
-
Compact and Modular Design: Saves space inside electrical panels and allows for easy upgrades or replacements.
-
DIN Rail Mounting: Enables quick and secure installation.
-
Manual Switch Operation: Clearly visible ON/OFF indicator allows for simple troubleshooting.
-
Wide Operating Temperature Range: Functions efficiently in both hot and cold environments.
-
Low Maintenance: Long operational life with minimal servicing.
-
International Compliance: Certified under both residential and industrial safety standards.
4. Applications
The A9N18361 MCB is suitable for a variety of settings, including:
-
Industrial Facilities: Used to protect machines, motors, and high-power electrical circuits.
-
Commercial Buildings: Ideal for shopping malls, offices, hospitals, and hotels.
-
Distribution Boards: Can be used in both main and sub-distribution boards.
-
Residential Buildings: Especially in modern smart homes with high electrical demands.
-
Server Rooms and Data Centers: Ensures electrical safety and continuous operation of sensitive IT equipment.
| Range of product | C120 |
|---|---|
| Range | Acti9 |
| Product name | C120 |
| Product or component type | Miniature circuit-breaker |
| Device short name | C120N |
| Device application | Distribution |
| Poles description | 2P |
| Number of protected poles | 2 |
| Neutral position | Left |
| [In] rated current | 80 A at 30 °C |
| Network type | AC |
| Trip unit technology | Thermal-magnetic |
| Curve code | C |
| Breaking capacity | 10000 A Icn at 230...400 V AC 50/60 Hz conforming to EN/IEC 60898-1 6 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2 10 kA Icu at <= 250 V DC conforming to EN/IEC 60947-2 20 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2 10 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
| Suitability for isolation | Yes conforming to IEC 60947-2 |
| Network frequency | 50/60 Hz |
|---|---|
| [Ue] rated operational voltage | 380...415 V AC 50/60 Hz 220...240 V AC 50/60 Hz 440 V AC 50/60 Hz <= 250 V DC 230...400 V AC 50/60 Hz |
| Magnetic tripping limit | 5...10 x In |
| [Ics] rated service breaking capacity | 7500 A 75 % conforming to EN/IEC 60898-1 - 230...400 V AC 50/60 Hz 4.5 kA 75 % conforming to EN/IEC 60947-2 - 440 V AC 50/60 Hz 7.5 kA 75 % conforming to EN/IEC 60947-2 - 380...415 V AC 50/60 Hz 15 kA 75 % conforming to EN/IEC 60947-2 - 220...240 V AC 50/60 Hz 10 kA 100 % conforming to EN/IEC 60947-2 - <= 250 V DC |
| Limitation class | 3 conforming to EN/IEC 60947-2 |
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to EN/IEC 60947-2 |
| Contact position indicator | Yes |
| control type | Toggle |
| local signalling | ON/OFF indication |
| Mounting mode | Clip-on |
| mounting support | 35 mm symmetrical DIN rail |
| Comb busbar and distribution block compatibility | YES |
| 9 mm pitches | 6 |
| height | 81 mm |
| Width | 54 mm |
| Depth | 73 mm |
| Net weight | 0.41 kg |
| Colour | White |
| Mechanical durability | 20000 cycles |
| Electrical durability | 5000 cycles conforming to IEC 60947-2 |
| Locking options description | Handle sealable with cable diameter 0.7mm in OFF or ON position |
| Connections - terminals | Tunnel type terminals1…50 mm² rigid Tunnel type terminals1.5…35 mm² flexible |
| Wire stripping length | 15 mm |
| Tightening torque | 3.5 N.m |
| earth-leakage protection | Separate block |
| Standards | EN/IEC 60947-2 EN/IEC 60898-1 |
|---|---|
| product certifications | EAC |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Pollution degree | 3 conforming to IEC 60947-2 |
| Overvoltage category | IV |
| Tropicalisation | 2 conforming to IEC 60068-1 |
| Relative humidity | 95 % at 55 °C |
| Operating altitude | 2000 m |
| ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…85 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.4 cm |
| Package 1 Width | 7.5 cm |
| Package 1 Length | 8.5 cm |
| Package 1 Weight | 387 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 8.5 cm |
| Package 2 Width | 9.5 cm |
| Package 2 Length | 33 cm |
| Package 2 Weight | 2.387 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 36 |
| Package 3 Height | 30 cm |
| Package 3 Width | 30 cm |
| Package 3 Length | 40 cm |
| Package 3 Weight | 14.809 kg |
| Warranty | 18 months |
|---|
Data Sheet : Download
Related products
Sale!
In stock

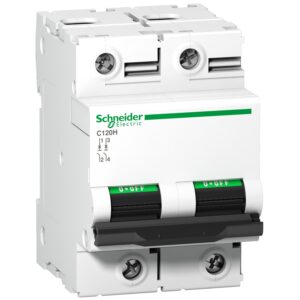

Schneider A9N18459 | Miniature circuit breaker (MCB), Acti9 C120H, 2P, 125A, C curve, 15000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2)
