Schneider A9R11480 | Acti 9 iID – RCCB – 4P – 80A – 30mA – type AC
Original price was: 10,758.83 EGP.7,748.10 EGPCurrent price is: 7,748.10 EGP.
Shipping calculated at checkout.

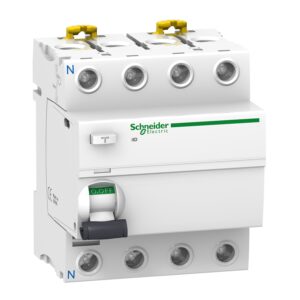

Schneider A9R11480 | Acti 9 iID – RCCB – 4P – 80A – 30mA – type AC
Technical Specifications
-
Product Reference: A9R11480
-
Product Range: Acti 9 iID
-
Device Type: Residual Current Circuit Breaker (RCCB)
-
Number of Poles: 4 (3-phase + Neutral)
-
Rated Current (In): 80 Amps
-
Rated Residual Operating Current (IΔn): 30 mA
-
Residual Current Type: Type AC
-
Rated Operational Voltage: 400V AC (3-phase system)
-
Frequency: 50/60 Hz
-
Mounting: DIN Rail
-
Degree of Protection: IP20 (with protection cover)
-
Standards: Compliant with IEC 61008-1
Key Features and Benefits
-
Full Circuit Protection: 4-pole design covers three-phase systems including neutral conductors.
-
80A Rated Current: Supports medium-to-high power loads in multi-phase installations.
-
30mA Sensitivity: Offers reliable protection for people by detecting dangerous earth leakage currents.
-
Type AC Detection: Ideal for standard loads with pure sinusoidal AC leakage currents.
-
Fast Tripping: Disconnects power quickly (within 30 milliseconds) upon detecting leakage.
-
Test Button: Built-in functionality for routine performance checks.
-
Compact DIN Rail Mounting: Easy to install in distribution boards and panels.
-
High Reliability: Durable and maintenance-friendly design ensures long-term service.
Applications
Three-Phase Residential Systems:
-
Provides whole-house protection in buildings with 3-phase power.
-
Commonly used in villas, multi-family houses, or buildings with large appliances.
Commercial Buildings:
-
Ensures earth fault protection in offices, restaurants, shops, and public buildings.
-
Ideal for HVAC systems, elevators, lighting circuits, and commercial kitchens.
Light Industrial Installations:
-
Protects equipment in workshops, machinery panels, and warehouse lighting.
-
Safeguards personnel working with high-load 3-phase equipment.
Renewable and Backup Systems:
-
Suitable for integration in solar panel systems, battery banks, or generator circuits using 3-phase power.
| Range | Acti9 |
|---|---|
| Product name | Acti9 iID |
| Product or component type | Residual current circuit breaker (RCCB) |
| Device short name | iID |
| Poles description | 4P |
| Neutral position | Left |
| [In] rated current | 80 A |
| Network type | AC |
| Earth-leakage sensitivity | 30 mA |
| earth-leakage protection time delay | Instantaneous |
| Earth-leakage protection class | Type AC |
| device location in system | Outgoer |
|---|---|
| Network frequency | 50/60 Hz |
| [Ue] rated operational voltage | 380...415 V AC 50/60 Hz |
| Residual current tripping technology | Voltage independent |
| Rated breaking and making capacity | Idm 1500 A Im 1500 A |
| Rated conditional short-circuit current | 10 kA |
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 6 kV |
| Surge current | 250 A |
| Contact position indicator | Yes |
| control type | Toggle |
| Mounting mode | Clip-on |
| mounting support | DIN rail |
| 9 mm pitches | 8 |
| height | 91 mm |
| Width | 72 mm |
| Depth | 73.5 mm |
| Net weight | 0.37 kg |
| Colour | White |
| Mechanical durability | 20000 cycles |
| Electrical durability | AC-1: 10000 cycles |
| Locking options description | Padlocking device |
| Connections - terminals | Single terminal top or bottom 1…35 mm² rigid Single terminal top or bottom 1…25 mm² flexible Single terminal top or bottom 1…25 mm² flexible with ferrule |
| Wire stripping length | 14 mm for top or bottom connection |
| Tightening torque | 3.5 N.m top or bottom |
| Standards | EN/IEC 61008-1 |
|---|---|
| Product certifications | SNI |
| IP degree of protection | IP20 conforming to IEC 60529 IP40 (modular enclosure) conforming to IEC 60529 |
| Pollution degree | 3 |
| Electromagnetic compatibility | 8/20 µs impulse withstand, 250 A conforming to EN/IEC 61008-1 |
| Ambient air temperature for operation | -5…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.2 cm |
| Package 1 Width | 7.5 cm |
| Package 1 Length | 10 cm |
| Package 1 Weight | 399 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 27 |
| Package 2 Height | 30 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 11.387 kg |
| Warranty | 18 months |
|---|
Data Sheet : Download
