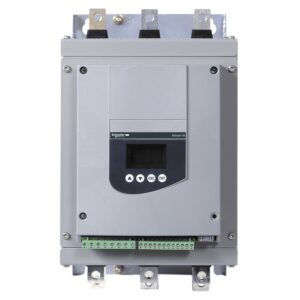

Schneider ATV630D22N4 | variable speed drive ATV630, 22kW/30HP, 380…480V, IP21/UL type 1

Schneider Electric
Availability:

In stock


Schneider ATV630D22N4 | variable speed drive ATV630, 22kW/30HP, 380…480V, IP21/UL type 1

139,532.58 EGP 253,695.60 EGP

In stock

Compare

Introduction

The Schneider ATV630D22N4 is a state-of-the-art variable speed drive engineered to enhance industrial processes. Known for its advanced features and robust design, it is a critical component in various industrial applications, ensuring both efficiency and reliability.

What is the Schneider ATV630D22N4?

The Schneider ATV630D22N4 belongs to the Altivar Process 630 series, celebrated for its high performance and energy efficiency. This particular model stands out due to its versatility and scalability, making it suitable for a broad spectrum of applications. Compared to other models in the ATV630 series, the ATV630D22N4 offers specialized features that cater to demanding industrial environments.

Key Features of the Schneider ATV630D22N4

Energy Efficiency

The ATV630D22N4 excels in energy efficiency, designed to significantly reduce energy consumption. This leads to lower operational costs and a minimized carbon footprint, making it an eco-friendly choice for industries.

Flexibility and Scalability

This model is highly flexible and scalable, easily adapting to various industrial needs. Its modular design allows for seamless integration into existing systems and scalability as operational demands increase.

Robust Design

Built to withstand challenging industrial conditions, the ATV630D22N4 features a robust design that ensures durability and longevity. This minimizes downtime and maintenance costs, contributing to sustained productivity.

Technical Specifications

Power Ratings

The ATV630D22N4 offers a range of power ratings to meet diverse application requirements, ensuring it can support various industrial processes efficiently.

Input and Output Voltage

It supports multiple input and output voltage ranges, providing the flexibility needed for different industrial settings.

Frequency Range

Operating within a wide frequency range, it is suitable for various types of machinery and equipment, enhancing its versatility.

Applications of the Schneider ATV630D22N4

Industrial Automation

In industrial automation, it plays a pivotal role in improving the efficiency and performance of automated systems, ensuring precise control and smooth operation of machinery.

HVAC Systems

it is widely utilized in HVAC systems, optimizing energy use and maintaining consistent performance, which is crucial for climate control and ventilation systems.

Water and Wastewater Management

In water and wastewater management, it ensures efficient and reliable operation of pumps and other equipment, contributing to effective resource management and sustainability.

Advantages of Using Schneider ATV630D22N4

Cost Savings

By significantly reducing energy consumption and maintenance costs, it offers considerable cost savings over its lifecycle, making it a cost-effective solution for industries.

Enhanced Operational Efficiency

With precise control and advanced features, it enhances operational efficiency, ensuring smooth and uninterrupted industrial processes.

Reduced Environmental Impact

Its energy-efficient design helps in reducing the environmental impact of industrial operations, supporting sustainability goals and compliance with environmental regulations.

Installation and Setup

Pre-Installation Considerations

Before installing the ATV630D22N4, it is essential to consider factors such as the installation environment and compatibility with existing systems to ensure a successful setup.

Step-by-Step Installation Guide

  1. Prepare the installation site.
  2. Securely mount the drive.
  3. Connect the electrical wiring following the manual’s instructions.
  4. Configure the drive settings according to the specific application requirements.

Initial Setup and Configuration

Post-installation, the initial setup involves configuring the drive parameters to match the application’s needs, ensuring optimal performance and efficiency.

Maintenance and Troubleshooting

Routine Maintenance Tips

Regular maintenance is vital for the longevity and optimal performance of it. This includes periodic inspections, cleaning, and ensuring all connections are secure.

Common Issues and Solutions

Common issues with it include overheating and communication errors. These can typically be resolved through troubleshooting steps provided in the user manual or by contacting Schneider’s technical support.

Support and Resources

Schneider offers extensive support and resources for it, including technical support, online resources, and comprehensive manuals to assist with maintenance and troubleshooting.

Energy Management with ATV630D22N4

Energy Monitoring Capabilities

it features built-in energy monitoring capabilities, allowing users to track and optimize energy usage effectively.

Integration with Energy Management Systems

It can be integrated with broader energy management systems, providing a comprehensive solution for monitoring and managing energy efficiency.

Benefits of Energy Management

Effective energy management with it leads to reduced energy costs, improved operational efficiency, and enhanced sustainability, making it an excellent choice for industries focused on energy conservation.

Main
Range of product Altivar Process ATV600
product or component type Variable speed drive
Product specific application Process and utilities
Device short name ATV630
variant Standard version
product destination Asynchronous motors
Synchronous motors
EMC filter Integrated with 50 m conforming to EN/IEC 61800-3 category C2
Integrated with 150 m conforming to EN/IEC 61800-3 category C3
IP degree of protection IP21 conforming to IEC 61800-5-1
IP21 conforming to IEC 60529
[Us] rated supply voltage 380…480 V
Degree of protection UL type 1 conforming to UL 508C
Type of cooling Forced convection
Supply frequency 50…60 Hz – 5…5 %
[Us] rated supply voltage 380…480 V – 15…10 %
Motor power kW 22 kW (normal duty)
18.5 kW (heavy duty)
Motor power hp 30 hp normal duty
25 hp heavy duty
Line current 39.6 A at 380 V (normal duty)
34.4 A at 480 V (normal duty)
34.1 A at 380 V (heavy duty)
29.9 A at 480 V (heavy duty)
Prospective line Isc 50 kA
Apparent power 28.6 kVA at 480 V (normal duty)
24.9 kVA at 480 V (heavy duty)
Continuous output current 46.3 A at 4 kHz for normal duty
39.2 A at 4 kHz for heavy duty
Asynchronous motor control profile Optimized torque mode
Constant torque standard
Variable torque standard
Synchronous motor control profile Permanent magnet motor
Synchronous reluctance motor
Speed drive output frequency 0.1…500 Hz
Nominal switching frequency 4 kHz
Switching frequency 2…12 kHz adjustable
4…12 kHz with derating factor
Safety function STO (safe torque off) SIL 3
Discrete input logic 16 preset speeds
Communication port protocol Modbus TCP
Ethernet
Modbus serial
Option card Slot A: communication module, Profibus DP V1
Slot A: communication module, PROFINET
Slot A: communication module, DeviceNet
Slot A: communication module, Modbus TCP/EtherNet/IP
Slot A: communication module, CANopen daisy chain RJ45
Slot A: communication module, CANopen SUB-D 9
Slot A: communication module, CANopen screw terminals
Slot A/slot B: digital and analog I/O extension module
Slot A/slot B: output relay extension module
Slot A: communication module, Ethernet IP/Modbus TCP/MD-Link
Communication module, BACnet MS/TP
Communication module, Ethernet Powerlink
Complementary
mounting mode Wall mount
Maximum transient current 50.9 A during 60 s (normal duty)
58.8 A during 60 s (heavy duty)
Network number of phases 3 phases
Discrete output number 0
Discrete output type Relay outputs R1A, R1B, R1C 250 V AC 3000 mA
Relay outputs R1A, R1B, R1C 30 V DC 3000 mA
Relay outputs R2A, R2C 250 V AC 5000 mA
Relay outputs R2A, R2C 30 V DC 5000 mA
Relay outputs R3A, R3C 250 V AC 5000 mA
Relay outputs R3A, R3C 30 V DC 5000 mA
Output voltage <= power supply voltage
Permissible temporary current boost 1.1 x In during 60 s (normal duty)
1.5 x In during 60 s (heavy duty)
Motor slip compensation Adjustable
Not available in permanent magnet motor law
Automatic whatever the load
Can be suppressed
Acceleration and deceleration ramps Linear adjustable separately from 0.01…9999 s
Physical interface Ethernet
2-wire RS 485
Braking to standstill By DC injection
Protection type Thermal protection: motor
Safe torque off: motor
Motor phase break: motor
Thermal protection: drive
Safe torque off: drive
Overheating: drive
Overcurrent between output phases and earth: drive
Overload of output voltage: drive
Short-circuit protection: drive
Motor phase break: drive
Overvoltages on the DC bus: drive
Line supply overvoltage: drive
Line supply undervoltage: drive
Line supply phase loss: drive
Overspeed: drive
Break on the control circuit: drive
Transmission rate 10, 100 Mbits
4800 bps, 9600 bps, 19200 bps, 38.4 Kbps
Frequency resolution Display unit: 0.1 Hz
Analog input: 0.012/50 Hz
Transmission frame RTU
Electrical connection Control: removable screw terminals 0.5…1.5 mm²/AWG 20…AWG 16
Motor: screw terminal 16 mm²/AWG 6
Line side: screw terminal 10…16 mm²/AWG 8…AWG 6
Connector type RJ45 (on the remote graphic terminal) for Ethernet/Modbus TCP
RJ45 (on the remote graphic terminal) for Modbus serial
Data format 8 bits, configurable odd, even or no parity
Type of polarization No impedance
Exchange mode Half duplex, full duplex, autonegotiation Ethernet/Modbus TCP
Number of addresses 1…247 for Modbus serial
Method of access Slave Modbus TCP
Supply External supply for digital inputs: 24 V DC (19…30 V), <1.25 mA, protection type: overload and short-circuit protection
Internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 mA, protection type: overload and short-circuit protection
Internal supply for digital inputs and STO: 24 V DC (21…27 V), <200 mA, protection type: overload and short-circuit protection
Local signalling 3 LEDs for local diagnostic
3 LEDs (dual colour) for embedded communication status
4 LEDs (dual colour) for communication module status
1 LED (red) for presence of voltage
Width 211 mm
Height 546 mm
Depth 232 mm
net weight 14.3 kg
Analogue input number 3
Analogue input type AI1, AI2, AI3 software-configurable voltage: 0…10 V DC, impedance: 31.5 kOhm, resolution 12 bits
AI1, AI2, AI3 software-configurable current: 0…20 mA, impedance: 250 Ohm, resolution 12 bits
AI2 voltage analog input: – 10…10 V DC, impedance: 31.5 kOhm, resolution 12 bits
Discrete input number 8
Discrete input type DI7, DI8 programmable as pulse input: 0…30 kHz, 24 V DC (<= 30 V)
Input compatibility DI1…DI6: discrete input level 1 PLC conforming to EN/IEC 61131-2
DI5, DI6: discrete input level 1 PLC conforming to IEC 65A-68
STOA, STOB: discrete input level 1 PLC conforming to EN/IEC 61131-2
Discrete input logic Positive logic (source) (DI1…DI8), < 5 V (state 0), > 11 V (state 1)
Negative logic (sink) (DI1…DI8), > 16 V (state 0), < 10 V (state 1)
Analogue output number 2
Analogue output type Software-configurable voltage AQ1, AQ2: 0…10 V DC impedance 470 Ohm, resolution 10 bits
Software-configurable current AQ1, AQ2: 0…20 mA, resolution 10 bits
Software-configurable current DQ-, DQ+: 30 V DC
Software-configurable current DQ-, DQ+: 100 mA
Sampling duration 2 ms +/- 0.5 ms (DI1…DI4) – discrete input
5 ms +/- 1 ms (DI5, DI6) – discrete input
5 ms +/- 0.1 ms (AI1, AI2, AI3) – analog input
10 ms +/- 1 ms (AO1) – analog output
Accuracy +/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input
+/- 1 % AO1, AO2 for a temperature variation 60 °C analog output
Linearity error AI1, AI2, AI3: +/- 0.15 % of maximum value for analog input
AO1, AO2: +/- 0.2 % for analog output
Relay output number 3
Relay output type Configurable relay logic R1: fault relay NO/NC electrical durability 100000 cycles
Configurable relay logic R2: sequence relay NO electrical durability 100000 cycles
Configurable relay logic R3: sequence relay NO electrical durability 100000 cycles
Refresh time Relay output (R1, R2, R3): 5 ms (+/- 0.5 ms)
Minimum switching current Relay output R1, R2, R3: 5 mA at 24 V DC
Maximum switching current Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 250 V AC
Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 30 V DC
Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC
Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC
Isolation Between power and control terminals
Maximum output frequency 500 kHz
Maximum input current 39.6 A
Variable speed drive application selection Building – HVAC compressor centrifugal
Food and beverage processing other application
Mining mineral and metal fan
Mining mineral and metal pump
Oil and gas fan
Water and waste water other application
Building – HVAC screw compressor
Food and beverage processing pump
Food and beverage processing fan
Food and beverage processing atomization
Oil and gas electro submersible pump (ESP)
Oil and gas water injection pump
Oil and gas jet fuel pump
Oil and gas compressor for refinery
Water and waste water centrifuge pump
Water and waste water positive displacement pump
Water and waste water electro submersible pump (ESP)
Water and waste water screw pump
Water and waste water lobe compressor
Water and waste water screw compressor
Water and waste water compressor centrifugal
Water and waste water fan
Water and waste water conveyor
Water and waste water mixer
Motor power range AC-3 15…25 kW at 380…440 V 3 phases
15…25 kW at 480…500 V 3 phases
Quantity per set 1
enclosure mounting Wall mounted
Environment
Insulation resistance > 1 MOhm 500 V DC for 1 minute to earth
Noise level 59.5 dB conforming to 86/188/EEC
Power dissipation in W Natural convection: 68 W at 380 V, switching frequency 4 kHz
Forced convection: 505 W at 380 V, switching frequency 4 kHz
Volume of cooling air 215 m3/h
Operating position Vertical +/- 10 degree
Maximum THDI <48 % from 80…100 % of load conforming to IEC 61000-3-12
Electromagnetic compatibility Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3
Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4
1.2/50 µs – 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5
Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
Pollution degree 2 conforming to EN/IEC 61800-5-1
Vibration resistance 1.5 mm peak to peak (f= 2…13 Hz) conforming to IEC 60068-2-6
1 gn (f= 13…200 Hz) conforming to IEC 60068-2-6
Shock resistance 15 gn for 11 ms conforming to IEC 60068-2-27
Relative humidity 5…95 % without condensation conforming to IEC 60068-2-3
Ambient air temperature for operation -15…50 °C (without derating)
50…60 °C (with derating factor)
Ambient air temperature for storage -40…70 °C
Operating altitude <= 1000 m without derating
1000…4800 m with current derating 1 % per 100 m
Product certifications ATEX zone 2/22
CSA
TÜV
DNV-GL
UL
ATEX INERIS
marking CE
Standards UL 508C
EN/IEC 61800-3
EN/IEC 61800-3 environment 1 category C2
EN/IEC 61800-3 environment 2 category C3
EN/IEC 61800-5-1
IEC 61000-3-12
IEC 60721-3
IEC 61508
IEC 13849-1
Overvoltage category III
Regulation loop Adjustable PID regulator
Noise level 59.5 dB
Pollution degree 2
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 33.500 cm
Package 1 Width 26.000 cm
Package 1 Length 73.500 cm
Package 1 Weight 17.580 kg
Unit Type of Package 2 S06
Number of Units in Package 2 4
Package 2 Height 90.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 80.932 kg

Main Document

Data Sheet : Download

Based on 0 reviews

0.0 overall
0
0
0
0
0

Be the first to review “Schneider ATV630D22N4 | variable speed drive ATV630, 22kW/30HP, 380…480V, IP21/UL type 1”

There are no reviews yet.

SHOPPING CART

close
Let's Chat
