Schneider C080H420FM | Circuit breaker, ComPacT NS800H, 70kA at 415VAC, 4P, fixed, manually operated, MicroLogic 2.0 control unit, 800A
C080H420FM and Schneider Electric: An Unmatched Combination
The Schneider C080H420FM is a circuit breaker designed specifically for demanding electrical environments. This premium product from Schneider Electric combines cutting-edge technology with robust construction to ensure maximum safety and reliability. As a part of the ComPacT NS new generation, it is engineered to meet the needs of modern electrical systems, providing peace of mind to users.
Reliable Protection for Your Electrical Systems
One of the primary benefits of the C080H420FM is its ability to protect electrical circuits from overloads and short circuits. This circuit breaker features a 70kA breaking capacity at 415VAC, which means it can handle significant fault currents without compromising safety. This capability is essential for industrial applications where equipment failure can lead to costly downtimes and safety hazards.
Efficient Operation with Manual Control
The manually operated design of the C080H420FM adds another layer of convenience for users. This feature allows for quick and easy operation when needed, enabling users to reset the breaker or disconnect the circuit without any hassle. The intuitive MicroLogic 2.0 control unit further streamlines the operation, ensuring that users can navigate settings effectively and efficiently.
Enhanced Safety Features
Safety is paramount when dealing with electrical systems, and the Schneider C080H420FM does not disappoint. Its advanced technology ensures that your electrical installations are safeguarded against potential hazards. The device is equipped with multiple protection settings, allowing for tailored responses to various fault conditions. This adaptability makes it suitable for diverse applications, from commercial buildings to industrial facilities.
Space-Saving Design
In addition to its functional advantages, the compact design of the C080H420FM is a significant benefit. Its fixed, four-pole configuration allows for easy installation in tight spaces, making it an ideal choice for those looking to optimize their electrical setups without compromising performance. This space-saving feature means that you can maximize the efficiency of your electrical system without the need for extensive alterations.
Conclusion: Choose Schneider Electric for Dependable Performance
In conclusion, the Schneider C080H420FM circuit breaker represents a top-tier choice for anyone seeking reliable electrical protection. Its combination of advanced technology, manual operation, and safety features makes it an investment in peace of mind. Whether you are upgrading existing systems or installing new ones, this circuit breaker is designed to deliver exceptional performance, ensuring that your electrical systems are safe, efficient, and effective.
| Range | ComPacT |
|---|---|
| Product name | ComPacT NS new generation |
| Range of product | ComPacT NS630b...1600 new generation |
| Product or component type | Circuit breaker |
| Device application | Distribution |
| Number of poles | 4P |
| Protected poles description | 4D |
| Neutral position | Left |
| [In] rated current | 800 A at 50 °C |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| Network type | AC |
| Network frequency | 50/60 Hz |
| Suitability for isolation | Yes conforming to EN/IEC 60947-2 |
| Utilisation category | Category B |
| Breaking capacity | 85 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 70 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 65 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 50 kA Icu at 500/525 V AC 50/60 Hz conforming to IEC 60947-2 42 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Breaking capacity code | H 70 kA 415 V AC |
| Trip unit name | MicroLogic 2.0 |
| Trip unit technology | Electronic |
| Trip unit protection functions | LI |
| Control type | Manually operated |
| Mounting mode | Fixed |
| [Ui] rated insulation voltage | 800 V AC 50/60 Hz conforming to IEC 60947-2 |
|---|---|
| [Uimp] rated impulse withstand voltage | 8 kV conforming to IEC 60947-2 |
| [Ics] rated service breaking capacity | 50 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 50 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 50 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 40 kA at 500/525 V AC 50/60 Hz conforming to IEC 60947-2 30 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Icw] rated short-time withstand current | 19.2 kA 1 s conforming to IEC 60947-2 |
| Mechanical durability | 10000 cycles |
| Electrical durability | 2000 cycles at 690 V In 4000 cycles at 690 V In/2 5000 cycles at 440 V In 6000 cycles at 440 V In/2 |
| Power losses | 15 W |
| Mounting support | Backplate |
| Upside connection | Front |
| Downside connection | Front |
| Connection pitch | 70 mm |
| Protection type | L : for overload protection (long time) I : for instantaneous short-circuit protection |
| Trip unit rating | 800 A at 50 °C |
| Long-time pick-up adjustment type Ir (thermal protection) | Adjustable 9 settings |
| [Ir] long-time protection pick-up adjustment range | 0.4...1 x In |
| Long-time protection delay adjustment type tr | Adjustable 9 settings |
| [tr] long-time delay adjustment range | 12.5…600 s at 1.5 x Ir 0.5…24 s at 6 x Ir 0.7…16.6 s at 7.2 x Ir |
| Thermal memory | 20 mn |
| Instantaneous protection pick-up adjustment type Ii | Adjustable |
| [Ii] instantaneous protection pick-up adjustment range | 1.5...10 x Ir |
| Earth-leakage protection | Without |
| Neutral protection setting | No protection (3D) 0.5 x Ir (3D + N/2) 1 x Ir (4D) |
| Zone selective interlocking ZSI | Without |
| Auxiliary contact composition | 1 NO/NC |
| Local signalling | 4 LEDs (red) for fault indication 1 LED (yellow) for overload |
| Width (W) | 280 mm |
| Height (H) | 327 mm |
| Depth (D) | 147 mm |
| Net weight | 18 kg |
| Standards | EN/IEC 60947-2 |
|---|---|
| Product certifications | IECEE CB Scheme |
| Overvoltage category | III |
| Electrical shock protection class | Class II on front face |
| Pollution degree | 3 conforming to IEC 60947 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to EN 50102 |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -50…85 °C |
| Relative humidity | 0…95 % |
| Operating altitude | 0...2000 m without derating 2000 m...5000 m with derating |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 30.0 cm |
| Package 1 Width | 40.0 cm |
| Package 1 Length | 60.0 cm |
| Package 1 Weight | 15.523 kg |
Related products
In stock
Schneider C080N320FM | Circuit breaker, ComPacT NS800N, 50kA at 415VAC, 3P, fixed, manually operated, MicroLogic 2.0 control unit, 800A
Original price was: 156,914.66 EGP.102,779.10 EGPCurrent price is: 102,779.10 EGP.In stock

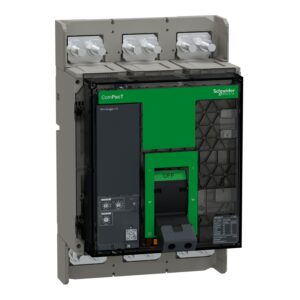

Schneider C160N320FM | Circuit breaker, ComPacT NS1600N, 50kA at 415VAC, 3P, fixed, manually operated, MicroLogic 2.0 control unit, 1600A
