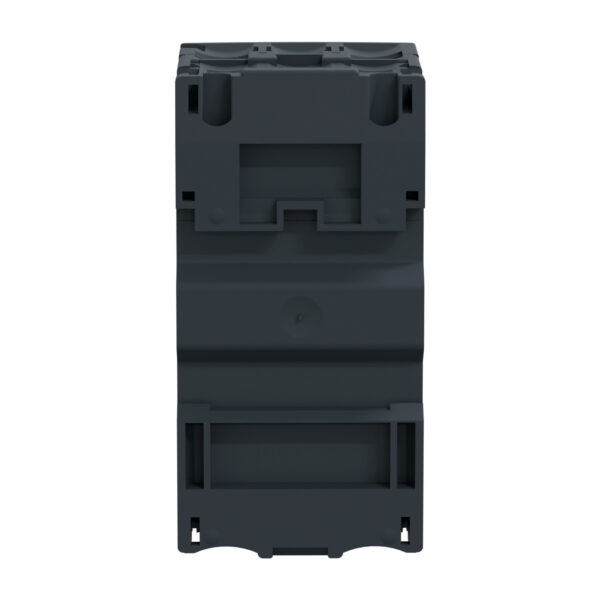

Schneider GV2ME05 | Motor circuit breaker, TeSys GV2, 3P, 0.63-1 A, thermal magnetic, screw clamp terminal - Image 3
Schneider GV2ME05 | Motor circuit breaker, TeSys GV2, 3P, 0.63-1 A, thermal magnetic, screw clamp terminal - Image 4
Schneider GV2ME05 | Motor circuit breaker, TeSys GV2, 3P, 0.63-1 A, thermal magnetic, screw clamp terminal
Schneider GV2ME05 | Motor circuit breaker, TeSys GV2, 3P, 0.63-1 A, thermal magnetic, screw clamp terminal
Schneider GV2ME05 | Motor circuit breaker, TeSys GV2, 3P, 0.63-1 A, thermal magnetic, screw clamp terminal
Schneider GV2ME05 | Motor circuit breaker, TeSys GV2, 3P, 0.63-1 A, thermal magnetic, screw clamp terminal
, , ,

Schneider GV2ME05 | Motor circuit breaker, TeSys GV2, 3P, 0.63-1 A, thermal magnetic, screw clamp terminal

Schneider Electric
Availability:

Out of stock

Schneider GV2ME05 | Motor circuit breaker, TeSys GV2, 3P, 0.63-1 A, thermal magnetic, screw clamp terminal

2,825.60 EGP 5,232.60 EGP

Out of stock

Schneider GV2ME05 | Motor circuit breaker, TeSys GV2, 3P, 0.63-1 A, thermal magnetic, screw clamp terminals

Technical Specifications

  • Model Number: GV2ME05
  • Series: TeSys GV2
  • Type: Motor Circuit Breaker (MCB)
  • Number of Poles: 3P (Three-Pole)
  • Rated Current Range: 0.63 – 1A (Adjustable)
  • Tripping Mechanism: Thermal Magnetic Protection
  • Breaking Capacity: 100 kA at 400V AC
  • Voltage Rating: 690V AC (Maximum Operating Voltage)
  • Frequency: 50/60 Hz
  • Connection Type: Screw Clamp Terminals
  • Mounting Type: DIN Rail or Panel Mounting
  • Operating Temperature: -20°C to +60°C
  • Protection Rating: IP20 (IP65 with enclosure)
  • Certifications & Standards: IEC 60947-2, IEC 60947-4-1, UL, CSA

Key Features

  1. Precise and Adjustable Motor Protection

    • Provides thermal overload protection and magnetic short-circuit protection to prevent motor damage.
    • Adjustable 0.63-1A range for precise motor current settings.

  2. High Breaking Capacity (100 kA at 400V AC)

    • Ensures safe operation in high-fault conditions, suitable for industrial environments.

  3. Compact and Space-Saving Design

    • Easily fits into control panels and switchboards, optimizing space usage.

  4. Manual ON/OFF Control with Trip Indication

    • Built-in ON/OFF switch for manual control and a trip indicator for quick fault identification.

  5. Screw Clamp Terminals for Secure Wiring

    • Provides strong and reliable connections, reducing the risk of wiring failures.

  6. Compatible with TeSys Accessories

    • Works with auxiliary contacts, shunt trips, and undervoltage releases for expanded functionality.

  7. Robust and Durable Construction

    • Designed to withstand harsh industrial conditions, ensuring long-term reliability.

  8. Meets International Safety Standards

    • Compliant with IEC 60947-2 and IEC 60947-4-1, ensuring global compatibility.

Applications

  • Motor Protection and Control
    • Ideal for small three-phase motors in industrial machinery, pumps, conveyors, and fans.
  • Automation and Industrial Control Panels
    • Used in motor control centers (MCCs) for efficient motor protection.
  • HVAC Systems
    • Protects motors in ventilation, heating, and air conditioning units.
  • Water and Wastewater Management
    • Ensures secure motor operation in water pumps and treatment plants.
  • Manufacturing and Processing Industries
    • Used in assembly lines, material handling, and automated equipment.
SKU: GV2ME05 Categories: , , , Brand:
brands

Main
Range TeSys Deca
Product name TeSys GV2
TeSys Deca
Product or component type Motor circuit breaker
Device short name GV2ME
Device application Motor protection
Trip unit technology Thermal-magnetic
Complementary
poles description 3P
network type AC
Utilisation category Category A conforming to IEC 60947-2
AC-3 conforming to IEC 60947-4-1
AC-3e conforming to IEC 60947-4-1
Network frequency 50/60 Hz conforming to IEC 60947-4-1
Fixing mode 35 mm symmetrical DIN rail: clipped
Panel: screwed (with adaptor plate)
Motor power kW 0.25 kW at 400/415 V AC 50/60 Hz
0.55 kW at 690 V AC 50/60 Hz
Breaking capacity 100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
100 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
100 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
100 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
100 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2
[Ics] rated service short-circuit breaking capacity 100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2
100 % at 500 V AC 50/60 Hz conforming to IEC 60947-2
100 % at 690 V AC 50/60 Hz conforming to IEC 60947-2
Control type Push-button
[In] rated current 1 A
Thermal protection adjustment range 0.63…1 A conforming to IEC 60947-4-1
Magnetic tripping current 13 A
[Ith] conventional free air thermal current 1 A conforming to IEC 60947-4-1
[Ue] rated operational voltage 690 V AC 50/60 Hz conforming to IEC 60947-2
[Ui] rated insulation voltage 690 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-2
Phase failure sensitivity Yes conforming to IEC 60947-4-1
Suitability for isolation Yes conforming to IEC 60947-1 § 7-1-6
Power dissipation per pole 2.5 W
Mechanical durability 100000 cycles
Electrical durability 100000 cycles for AC-3 at 415 V In
100000 cycles for AC-3e at 415 V In
Rated duty Continuous conforming to IEC 60947-4-1
Tightening torque 1.7 N.m – on screw clamp terminal
Width 45 mm
Height 89 mm
Depth 78.5 mm
Net weight 0.28 kg
Colour Dark grey
Environment
Standards EN/IEC 60947-2
EN/IEC 60947-4-1
Product certifications CCC
UL
CSA
EAC
ATEX
LROS (Lloyds register of shipping)
BV
RINA
DNV-GL
UKCA
IK degree of protection IK04
IP degree of protection IP20 conforming to IEC 60529
Climatic withstand conforming to IACS E10
Ambient air temperature for storage -40…80 °C
Fire resistance 960 °C conforming to IEC 60695-2-11
Ambient air temperature for operation -20…60 °C
Mechanical robustness Shocks: 30 Gn for 11 ms
Vibrations: 5 Gn, 5…150 Hz
Operating altitude 2000 m
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 4.500 cm
Package 1 Width 8.500 cm
Package 1 Length 9.500 cm
Package 1 Weight 231.000 g
Unit Type of Package 2 S02
Number of Units in Package 2 24
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 5.582 kg
Unit Type of Package 3 P06
Number of Units in Package 3 384
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 100.784 kg
Contractual warranty
Warranty 18 months
Main
Range TeSys Deca
Product name TeSys GV2 TeSys Deca
Product or component type Motor circuit breaker
Device short name GV2ME
Device application Motor protection
Trip unit technology Thermal-magnetic
Complementary
poles description 3P
network type AC
Utilisation category Category A conforming to IEC 60947-2 AC-3 conforming to IEC 60947-4-1 AC-3e conforming to IEC 60947-4-1
Network frequency 50/60 Hz conforming to IEC 60947-4-1
Fixing mode 35 mm symmetrical DIN rail: clipped Panel: screwed (with adaptor plate)
Motor power kW 0.25 kW at 400/415 V AC 50/60 Hz 0.55 kW at 690 V AC 50/60 Hz
Breaking capacity 100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 100 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 100 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 100 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 100 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2
[Ics] rated service short-circuit breaking capacity 100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 500 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 690 V AC 50/60 Hz conforming to IEC 60947-2
Control type Push-button
[In] rated current 1 A
Thermal protection adjustment range 0.63…1 A conforming to IEC 60947-4-1
Magnetic tripping current 13 A
[Ith] conventional free air thermal current 1 A conforming to IEC 60947-4-1
[Ue] rated operational voltage 690 V AC 50/60 Hz conforming to IEC 60947-2
[Ui] rated insulation voltage 690 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-2
Phase failure sensitivity Yes conforming to IEC 60947-4-1
Suitability for isolation Yes conforming to IEC 60947-1 § 7-1-6
Power dissipation per pole 2.5 W
Mechanical durability 100000 cycles
Electrical durability 100000 cycles for AC-3 at 415 V In 100000 cycles for AC-3e at 415 V In
Rated duty Continuous conforming to IEC 60947-4-1
Tightening torque 1.7 N.m - on screw clamp terminal
Width 45 mm
Height 89 mm
Depth 78.5 mm
Net weight 0.28 kg
Colour Dark grey
Environment
Standards EN/IEC 60947-2 EN/IEC 60947-4-1
Product certifications CCC UL CSA EAC ATEX LROS (Lloyds register of shipping) BV RINA DNV-GL UKCA
IK degree of protection IK04
IP degree of protection IP20 conforming to IEC 60529
Climatic withstand conforming to IACS E10
Ambient air temperature for storage -40…80 °C
Fire resistance 960 °C conforming to IEC 60695-2-11
Ambient air temperature for operation -20…60 °C
Mechanical robustness Shocks: 30 Gn for 11 ms Vibrations: 5 Gn, 5...150 Hz
Operating altitude 2000 m
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 4.500 cm
Package 1 Width 8.500 cm
Package 1 Length 9.500 cm
Package 1 Weight 231.000 g
Unit Type of Package 2 S02
Number of Units in Package 2 24
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 5.582 kg
Unit Type of Package 3 P06
Number of Units in Package 3 384
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 100.784 kg
Contractual warranty
Warranty 18 months
