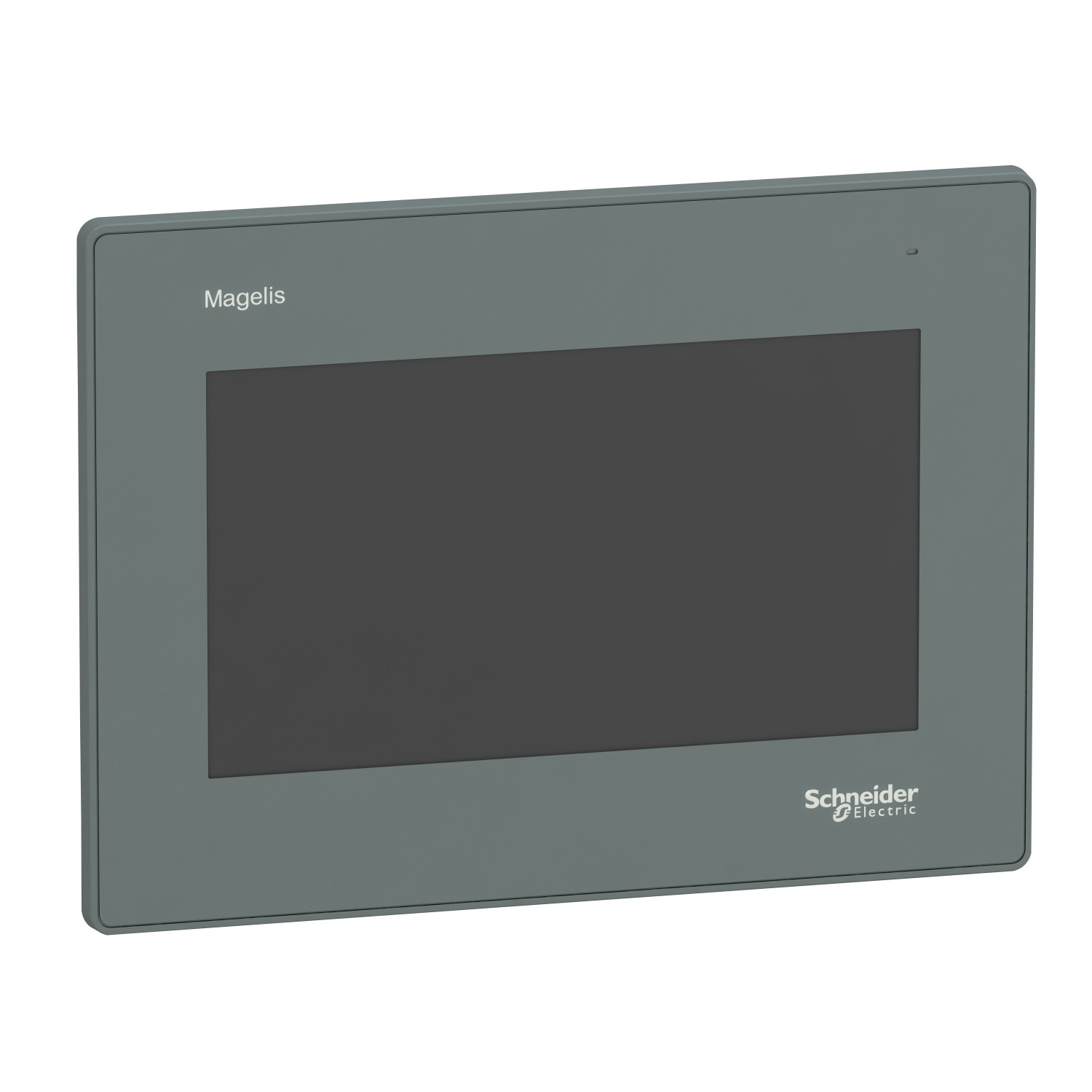

Schneider HMIGXU3512 | 7 inch wide screen, Universal model, 2 serial ports,1 Ethernet port, embeddedRTC
Original price was: EGP59,447.81.EGP32,696.30Current price is: EGP32,696.30.
Shipping calculated at checkout.
Schneider HMIGXU3512 | Human-Machine Interface (HMI) – Overview
The Schneider Electric HMIGXU3512 is a 7-inch wide screen Universal HMI from the Harmony GXU series. It is engineered to provide enhanced communication, user-friendly interface, and reliable control for industrial automation systems. This model combines versatility, modern design, and robust features for a wide range of applications.
Key Features
-
Display Size: 7-inch wide screen
-
Display Type: TFT LCD with LED backlight
-
Resolution: 800 x 480 pixels (WVGA)
-
Touch Panel: 4-wire resistive touchscreen
-
Model Type: Universal model
Communication Interfaces
-
Serial Ports: 2 ports (RS232/RS485, configurable)
-
Ethernet Port: 1 port (10/100 Mbps)
-
USB Ports:
-
1 USB Host port
-
1 USB Device port
-
-
Expansion: SD card support (depending on configuration)
Functional Capabilities
-
Embedded Real-Time Clock (RTC): For accurate timekeeping, scheduling, and event logging
-
Programming Software: EcoStruxure™ Operator Terminal Expert
-
Supported Protocols: Schneider and third-party PLC communication protocols
-
Functions:
-
Alarm management
-
Data logging
-
Recipe handling
-
Real-time display of process values
-
Mechanical & Environmental Specifications
-
Mounting: Panel mounting
-
Front Panel Protection: IP65 (dust-tight and water-resistant when properly mounted)
-
Power Supply: 24V DC
-
Operating Temperature: 0°C to +50°C
-
Storage Temperature: -20°C to +60°C
-
Durability: Designed for use in industrial environments
Applications
-
Machine control panels
-
Packaging and processing systems
-
Conveyor and material handling equipment
-
Building management systems
-
Water treatment and energy systems
-
General automation tasks in various industries
Advantages
-
Versatile connectivity with dual serial ports and Ethernet
-
Reliable operation with embedded RTC
-
High-clarity 7″ touch display
-
Easy configuration and integration
-
Compact, durable, and modern design
| range of product | Harmony Easy GXU |
|---|---|
| Product or component type | Advanced touchscreen panel |
| Display type | LCD touch screen |
| Display colour | 65536 colours |
| Display resolution | 800 x 480 pixels WVGA |
| Display size | 7 inch |
| Backlight lifespan | 20000 hours |
|---|---|
| [Us] rated supply voltage | 24 V DC |
| Software designation | Vijeo Designer Basic configuration software |
| Memory description | Internal, 48 MB for application Internal DDR, 128 MB Internal, 128 kB for backup |
| Integrated connection type | USB type mini B COM1 serial link: 9-way male SUB-D connector, RS232C COM2 serial link: 9-way male SUB-D connector, RS422/RS485 USB type A Ethernet 10/100BASE-TX |
| Cut-out dimensions | 190 x 135 mm |
| Quality labels | CE |
|---|---|
| ambient air temperature for operation | 0…50 °C |
| Ambient air temperature for storage | -20…60 °C |
| IP degree of protection | IP65 (front panel) |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.163 cm |
| Package 1 Width | 18.024 cm |
| Package 1 Length | 25.544 cm |
| Package 1 Weight | 910 g |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 30 cm |
| Package 2 Width | 40 cm |
| Package 2 Length | 60 cm |
| Package 2 Weight | 11747 g |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 144 |
| Package 3 Height | 95 cm |
| Package 3 Width | 80 cm |
| Package 3 Length | 120 cm |
| Package 3 Weight | 149964 g |
Data Sheet : Download
