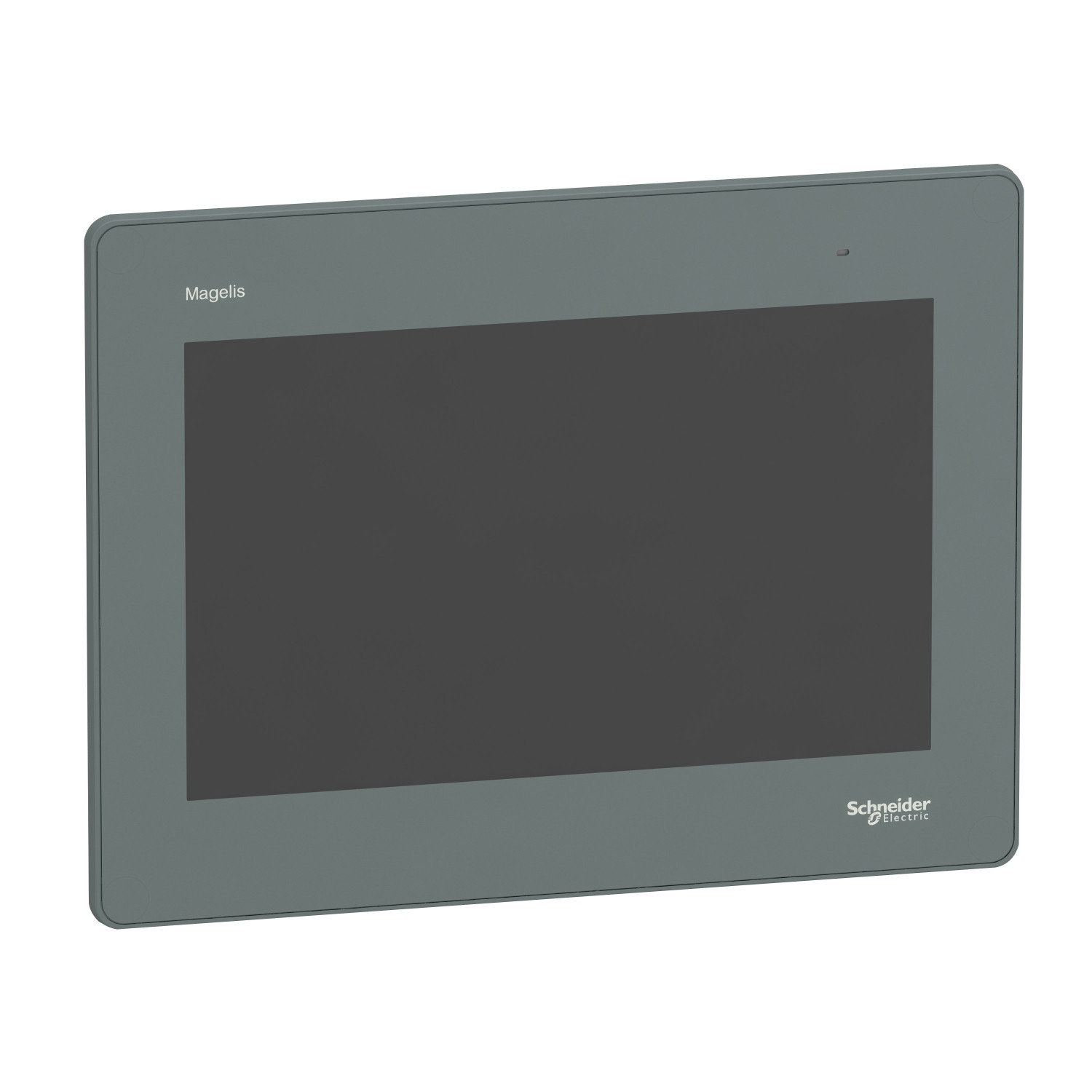

Schneider HMIGXU5500 | 10.1 inch widescreen, Basic model, 1 serial port, embeddedRTC
Original price was: EGP113,111.71.EGP62,211.40Current price is: EGP62,211.40.
Shipping calculated at checkout.
Schneider HMIGXU5500 | Human-Machine Interface (HMI) – Overview
The Schneider Electric HMIGXU5500 is a 10.1-inch wide screen Basic HMI from the Harmony GXU series. It is designed for clear visualization, simple connectivity, and intuitive operation in various industrial environments. This model includes a single serial port and an embedded real-time clock (RTC), making it ideal for basic control and monitoring applications.
Key Features
-
Display Size: 10.1-inch wide screen
-
Display Type: TFT LCD with LED backlight
-
Resolution: 1024 x 600 pixels (WSVGA)
-
Touch Panel: Resistive touchscreen
-
Model Type: Basic model
Communication Interfaces
-
Serial Port: 1 port (RS232/RS485, configurable)
-
USB Ports:
-
1 USB Host port
-
1 USB Device port
-
-
Ethernet: Not available on this basic model
-
Expansion: May support SD card (based on specific configuration)
Functional Capabilities
-
Embedded Real-Time Clock (RTC): For accurate timekeeping, logging, and scheduling
-
Programming Software: EcoStruxure™ Operator Terminal Expert
-
Supported Protocols: Schneider and third-party PLCs
-
HMI Functions:
-
Data display
-
Alarms
-
Input commands
-
Process visualization
-
Mechanical & Environmental Specifications
-
Mounting: Panel mounting
-
Front Panel Protection: IP65 (when properly installed)
-
Power Supply: 24V DC
-
Operating Temperature: 0°C to +50°C
-
Storage Temperature: -20°C to +60°C
-
Design: Slim and durable construction for industrial use
Applications
-
Small machine interfaces
-
Basic process control
-
Local control stations
-
Energy management systems
-
General automation projects
Advantages
-
Large and clear 10.1” touch screen
-
Reliable and economical solution for basic HMI requirements
-
Embedded RTC for scheduling and event tracking
-
Simple and user-friendly configuration
-
Ideal for space-constrained panels needing a large display
| range of product | Harmony Easy GXU |
|---|---|
| Product or component type | Advanced touchscreen panel |
| Display type | LCD touch screen |
| Display colour | 65536 colours |
| Display resolution | 800 x 480 pixels WVGA |
| Display size | 10.1 inch |
| Backlight lifespan | 20000 hours |
|---|---|
| [Us] rated supply voltage | 24 V DC |
| Software designation | Vijeo Designer Basic configuration software |
| Memory description | Internal, 32 MB for application Internal DDR, 128 MB Internal, 128 kB for backup |
| Integrated connection type | COM1 serial link: 9-way male SUB-D connector, RS422/RS485 USB type mini B |
| Cut-out dimensions | 255 x 185 mm |
| Quality labels | CE |
|---|---|
| ambient air temperature for operation | 0…50 °C |
| Ambient air temperature for storage | -20…60 °C |
| IP degree of protection | IP65 (front panel) |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.2 cm |
| Package 1 Width | 23.7 cm |
| Package 1 Length | 32.6 cm |
| Package 1 Weight | 1.48 kg |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 7 |
| Package 2 Height | 30 cm |
| Package 2 Width | 40 cm |
| Package 2 Length | 60 cm |
| Package 2 Weight | 11256.5 g |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 84 |
| Package 3 Height | 95 cm |
| Package 3 Width | 80 cm |
| Package 3 Length | 120 cm |
| Package 3 Weight | 144078 g |
Data Sheet : Download
