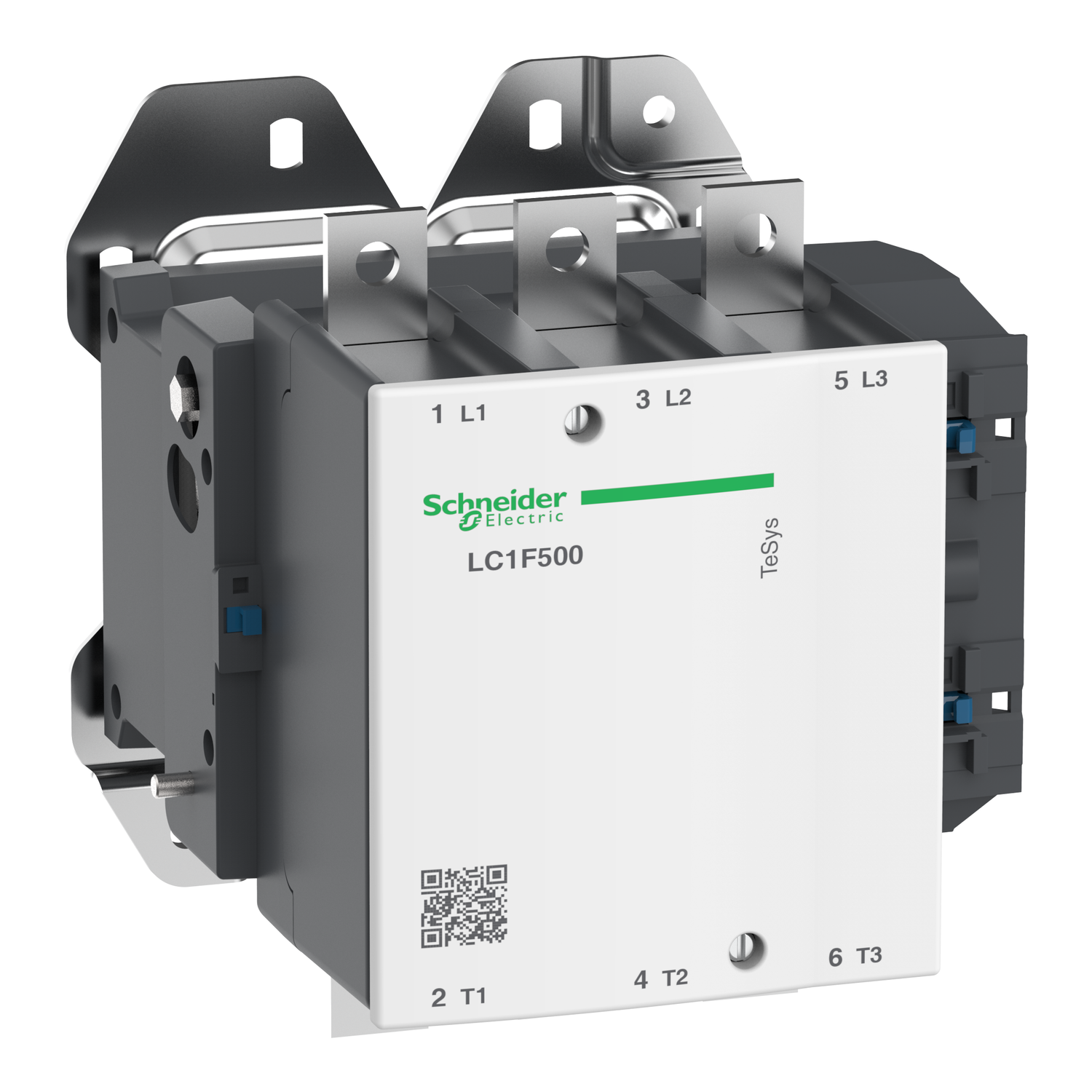

Schneider LC1F500M7 | TeSys F contactor – 3P (3 NO) – AC-3 – <= 440 V 500 A – coil 220 V AC

Introduction to Schneider LC1F500M7

Schneider LC1F500M7 is a powerful and reliable contactor designed for various industrial applications. It is part of the TeSys F series, known for its durability and efficiency in controlling electrical circuits.

Specifications of Schneider LC1F500M7

The Schneider LC1F500M7 contactor boasts impressive specifications, including:

  • Rated operational current: 500 A
  • Coil voltage: 220-240 V AC
  • Control circuit type: AC
  • Number of poles: 3
  • AC-1 Utilization category
  • Compliance with international standards

Applications of Schneider LC1F500M7

Schneider LC1F500M7 finds applications in a wide range of industries, including:

  • Manufacturing
  • Energy
  • Infrastructure
  • Transportation
  • Automation

Benefits of Using Schneider LC1F500M7

The Schneider LC1F500M7 offers several benefits to users:

  • High operational reliability
  • Long electrical endurance
  • Compact design for space-saving installation
  • Easy integration with existing systems
  • Enhanced safety features for personnel and equipment

Installation Process of Schneider LC1F500M7

Installing Schneider LC1F500M7 is a straightforward process. Follow these steps:

  1. Ensure power supply is turned off.
  2. Mount the contactor securely on a flat surface.
  3. Connect input and output terminals according to the wiring diagram.
  4. Double-check connections for accuracy.
  5. Power on the system and test for proper functionality.

Maintenance Tips for Schneider LC1F500M7

To ensure optimal performance and longevity, follow these maintenance tips:

  • Regularly inspect for signs of wear or damage.
  • Keep the contactor clean and free from debris.
  • Lubricate moving parts as recommended by the manufacturer.
  • Test functionality periodically and replace any faulty components promptly.

Troubleshooting Common Issues with Schneider LC1F500M7

Common issues with Schneider LC1F500M7 may include:

  • Overheating
  • Coil failure
  • Contactor not closing properly

Refer to the user manual for specific troubleshooting steps or contact Schneider Electric technical support for assistance.

Comparison with Similar Products

When compared to similar products on the market, Schneider LC1F500M7 stands out due to its:

  • Higher rated operational current
  • Enhanced durability
  • Greater compatibility with various applications

Customer Reviews and Testimonials

Customers praise Schneider LC1F500M7 for its reliability and performance. Many users report increased efficiency and cost savings after switching to this contactor.

Pricing and Availability

Schneider LC1F500M7 is competitively priced and widely available through authorized distributors and online retailers. Contact your local supplier for pricing information and product availability.

Conclusion

In conclusion, Schneider LC1F500M7 is a top-of-the-line contactor suitable for a wide range of industrial applications. With its robust design, advanced features, and positive customer feedback, it is an excellent choice for anyone in need of reliable electrical control solutions.

FAQs

  1. Is Schneider LC1F500M7 suitable for outdoor use?
    • Yes, Schneider LC1F500M7 is designed to withstand harsh environmental conditions and is suitable for outdoor installations.
  2. What is the warranty period for Schneider LC1F500M7?
    • Schneider Electric offers a standard warranty period for LC1F500M7 contactors. Please refer to the warranty documentation for specific details.
  3. Can Schneider LC1F500M7 be used with variable frequency drives (VFDs)?
    • Yes, Schneider LC1F500M7 is compatible with variable frequency drives and other motor control applications.
  4. Does Schneider LC1F500M7 support remote operation?
    • Yes, Schneider LC1F500M7 can be integrated into remote control systems for convenient operation from a distance.
  5. Is professional installation required for Schneider LC1F500M7?
    • While professional installation is recommended, experienced users familiar with electrical systems can install Schneider LC1F500M7 following the provided instructions.
SKU: LC1F500M7 Category:
Main
Range TeSys
Range of product TeSys F
Product or component type Contactor
Device short name LC1F
contactor application Motor control
Resistive load
utilisation category AC-1
AC-4
AC-3
Poles description 3P
[Ue] rated operational voltage <= 1000 V AC 50/60 Hz
<= 460 V DC
[Uc] control circuit voltage 220 V AC 40…400 Hz
[Ie] rated operational current 700 A (at <40 °C) at <= 440 V AC AC-1
500 A (at <55 °C) at <= 440 V AC AC-3
Complementary
[Uimp] rated impulse withstand voltage 8 kV
[Ith] conventional free air thermal current 700 A (at 40 °C)
Rated breaking capacity 4000 A conforming to IEC 60947-4-1
[Icw] rated short-time withstand current 4200 A 40 °C – 10 s
3200 A 40 °C – 30 s
2400 A 40 °C – 1 min
1500 A 40 °C – 3 min
1200 A 40 °C – 10 min
Associated fuse rating 500 A aM at <= 440 V
800 A gG at <= 440 V
Average impedance 0.18 mOhm – Ith 700 A 50 Hz
[Ui] rated insulation voltage 1000 V conforming to IEC 60947-4-1
1500 V conforming to VDE 0110 group C
Power dissipation per pole 88 W AC-1
45 W AC-3
Overvoltage category III
power pole contact composition 3 NO
Motor power kW 250 kW at 380…400 V AC 50/60 Hz (AC-3)
280 kW at 415 V AC 50/60 Hz (AC-3)
295 kW at 440 V AC 50/60 Hz (AC-3)
355 kW at 500 V AC 50/60 Hz (AC-3)
335 kW at 660…690 V AC 50/60 Hz (AC-3)
335 kW at 1000 V AC 50/60 Hz (AC-3)
147 kW at 220…230 V AC 50/60 Hz (AC-3)
80 kW at 400 V AC 50/60 Hz (AC-4)
Control circuit voltage limits Operational: 0.85…1.1 Uc 40…400 Hz (at 55 °C)
Drop-out: 0.3…0.5 Uc 40…400 Hz (at 55 °C)
Mechanical durability 10 Mcycles
Inrush power in VA 1100 VA, 40…400 Hz cos phi 0.9 (at 20 °C)
Hold-in power consumption in VA 18 VA, 40…400 Hz cos phi 0.9 (at 20 °C)
Maximum operating rate 2400 cyc/h 55 °C
Operating time 40…65 ms closing
100…170 ms opening
Connections – terminals Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end
Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end
Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end
Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end
Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid without cable end
Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid without cable end
Power circuit: bar 2 cable(s) – busbar cross section: 40 x 5 mm
Power circuit: lugs-ring terminals 2 cable(s) 240 mm²
Power circuit: bolted connection
Tightening torque Control circuit: 1.2 N.m
Power circuit: 35 N.m
mounting support Plate
Heat dissipation 18 W
motor power range 250…500 kW at 380…440 V 3 phases
110…220 kW at 380…440 V 3 phases
110…220 kW at 200…240 V 3 phases
250…500 kW at 480…500 V 3 phases
Motor starter type Direct on-line contactor
Contactor coil voltage 220 V AC standard
Standards EN 60947-4-1
IEC 60947-1
EN 60947-1
JIS C8201-4-1
IEC 60947-4-1
product certifications CSA
CB
RMRoS
ABS
LROS (Lloyds register of shipping)
UL
RINA
BV
DNV
UKCA
Compatibility code LC1F
Control circuit type AC at 40…400 Hz
Environment
IP degree of protection IP20 front face with shrouds conforming to IEC 60529
IP20 front face with shrouds conforming to VDE 0106
Protective treatment TH
ambient air temperature for operation -5…55 °C
Ambient air temperature for storage -60…80 °C
Permissible ambient air temperature around the device -40…70 °C
height 238 mm
Width 233 mm
Depth 232 mm
Operating altitude 3000 m without derating
Net weight 11.35 kg
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 27.5 cm
Package 1 Width 30.0 cm
Package 1 Length 30.0 cm
Package 1 Weight 11.612 kg
Unit Type of Package 2 P06
Number of Units in Package 2 8
Package 2 Height 80.0 cm
Package 2 Width 80.0 cm
Package 2 Length 60.0 cm
Package 2 Weight 101.412 kg
Contractual warranty
Warranty 18 months

Main Document

Data Sheet : LC1F500M7
