TeSys Giga contactors, TeSys Giga Contactor
Schneider LC1G400KUEN Contactor | Contactor, high power, TeSys Giga, standard version, 3 pole/NO, AC-3 <=440V 400A, 100-250VAC/DC coil
Availability:
In stock
Schneider LC1G400KUEN Contactor
94,143.71 EGP 174,340.20 EGP
In stock
CompareSchneider LC1G400KUEN Contactor
Introduction
In the realm of industrial electrical systems, the reliability and efficiency of components are crucial. The Schneider LC1G400KUEN Contactor is one such component that stands out for its robustness and versatility. This article will provide an in-depth look into it, examining its features, benefits, and applications to help you understand why it is a preferred choice in various industries.
What is Schneider LC1G400KUEN Contactor?
IT is a high-performance device designed for controlling electrical circuits. It is part of Schneider Electric’s extensive range of contactors known for their reliability and efficiency. This contactor is particularly suited for demanding industrial applications, ensuring smooth operation and control.
Design and Build
The Schneider LC1G400KUEN Contactor features an ergonomic design that prioritizes ease of use and installation. Constructed from high-quality materials, it is built to endure the harsh conditions typical of industrial environments. Its robust design ensures long-term durability, making it a cost-effective solution for electrical control needs.
Technical Specifications
Understanding the technical specifications of it is essential for its proper application. Here are some key specs:
- Dimensions and Weight: Compact design facilitates easy integration into various control panels.
- Electrical Ratings: Capable of handling high electrical loads, making it suitable for heavy-duty applications.
- Operating Temperature Range: Designed to operate efficiently across a wide range of temperatures, making it versatile for different environments.
Installation and Setup
Installing it is straightforward, thanks to its user-friendly design. Here’s a step-by-step guide:
- Pre-installation Requirements: Ensure all necessary tools are available and the control panel is prepared.
- Step-by-step Installation Guide: Follow the detailed manual for precise instructions, ensuring all connections are secure.
- Initial Setup and Configuration: Configure the device according to your system’s requirements using the provided settings guide.
Applications of Schneider LC1G400KUEN Contactor
This versatile contactor is applicable in various sectors:
- Industrial Automation: Enhances control and reliability in automated systems.
- Energy Management: Facilitates efficient control of electrical loads, contributing to energy savings.
- HVAC Systems: Ensures reliable operation of heating, ventilation, and air conditioning systems.
Benefits of Using Schneider LC1G400KUEN Contactor
Adopting the Schneider LC1G400KUEN Contactor in your system brings numerous benefits:
- Enhanced Reliability: High-quality construction ensures consistent performance.
- Improved Safety: Robust design reduces the risk of electrical failures.
- Cost Efficiency: Durable and reliable, minimizing the need for frequent replacements and reducing maintenance costs.
Comparison with Competitors
When compared to other contactors in the market, the Schneider LC1G400KUEN stands out for its unique selling points:
- Performance: Delivers consistent and reliable performance in demanding applications.
- Durability: Superior build quality ensures long-term use.
- Ease of Use: User-friendly design simplifies installation and operation.
User Experience and Feedback
Customer feedback on the Schneider LC1G400KUEN Contactor has been largely positive. Users appreciate its reliability and ease of installation, though some have mentioned that initial setup can be challenging without prior experience. Overall, it is highly regarded for its performance and longevity.
Maintenance and Troubleshooting
To ensure the Schneider LC1G400KUEN Contactor remains in top condition, regular maintenance is essential. Here are some tips:
- Routine Maintenance Tips: Regularly inspect connections and clean the device to prevent dust buildup.
- Troubleshooting Common Issues: Refer to the manual for solutions to common problems, or contact customer support for more complex issues.
Future Prospects
As technology evolves, Schneider Electric continues to innovate, ensuring their products remain at the forefront of industrial control solutions. Future updates and new models will likely include enhanced features and improved efficiency, keeping up with industry trends and demands.
Why Choose Schneider Electric?
Schneider Electric is a global leader in energy management and automation solutions. Their commitment to sustainability and innovation makes them a trusted choice for industrial control systems. Choosing Schneider Electric means investing in a company with a proven track record of quality and reliability.
Case Studies
Several companies have successfully integrated the Schneider LC1G400KUEN Contactor into their operations. For instance, a large manufacturing plant reported increased reliability and reduced downtime after upgrading to this contactor, demonstrating its positive impact on operational efficiency.
| Range | TeSys |
|---|---|
| Range of Product | TeSys Giga |
| Product or Component Type | Contactor |
| Device short name | LC1G |
| contactor application | Power switching Motor control |
| utilisation category | AC-1 AC-3 AC-3e AC-4 AC-5a AC-5b AC-6a AC-6b AC-8a AC-8b DC-1 DC-3 DC-5 |
| Poles description | 3P |
| [Ue] rated operational voltage | <= 1000 V AC 50/60 Hz <= 460 V DC |
| [Ie] rated operational current | 550 A (at <104 °F (40 °C)) at <= 1000 V AC-1 400 A (at <140 °F (60 °C)) at <= 440 V AC-3 |
| [Uc] control circuit voltage | 100…250 V AC 50/60 Hz 100…250 V DC |
| Control circuit voltage limits | Operational: 0.8 Uc Min…1.1 Uc Max (at <140 °F (60 °C)) Drop-out: 0.1 Uc Max…0.45 Uc Min (at <140 °F (60 °C)) |
| [Uimp] rated impulse withstand voltage | 8 kV |
|---|---|
| Overvoltage category | III |
| [Ith] conventional free air thermal current | 550 A (at 104 °F (40 °C)) |
| Rated breaking capacity | 3480 A at 440 V |
| [Icw] rated short-time withstand current | 3.6 kA – 10 s 2.4 kA – 30 s 1.7 kA – 1 min 1.2 kA – 3 min 1.0 kA – 10 min |
| Associated fuse rating | 500 A aM at <= 440 V for motor 315 A aM at <= 690 V for motor 630 A gG at <= 690 V |
| Average impedance | 0.0001 Ohm |
| [Ui] rated insulation voltage | 1000 V |
| Power dissipation per pole | 30 W AC-1 – Ith 550 A 16 W AC-3 – Ith 400 A |
| Compatibility code | LC1G |
| Pole contact composition | 3 NO |
| Auxiliary contact composition | 1 NO + 1 NC |
| Motor power kW | 110 kW at 230 V AC 50/60 Hz (AC-3e) 200 kW at 400 V AC 50/60 Hz (AC-3e) 200 kW at 415 V AC 50/60 Hz (AC-3e) 250 kW at 440 V AC 50/60 Hz (AC-3e) 250 kW at 500 V AC 50/60 Hz (AC-3e) 315 kW at 690 V AC 50/60 Hz (AC-3e) 220 kW at 1000 V AC 50/60 Hz (AC-3e) 110 kW at 230 V AC 50/60 Hz (AC-3) 200 kW at 400 V AC 50/60 Hz (AC-3) 200 kW at 415 V AC 50/60 Hz (AC-3) 250 kW at 440 V AC 50/60 Hz (AC-3) 250 kW at 500 V AC 50/60 Hz (AC-3) 315 kW at 690 V AC 50/60 Hz (AC-3) 220 kW at 1000 V AC 50/60 Hz (AC-3) 110 kW at 230 V AC 50/60 Hz (AC-4) 200 kW at 400 V AC 50/60 Hz (AC-4) 200 kW at 415 V AC 50/60 Hz (AC-4) 220 kW at 440 V AC 50/60 Hz (AC-4) 250 kW at 500 V AC 50/60 Hz (AC-4) 315 kW at 690 V AC 50/60 Hz (AC-4) 220 kW at 1000 V AC 50/60 Hz (AC-4) |
| Maximum Horse Power Rating | 125 hp at 200/208 V 60 Hz 150 hp at 230/240 V 60 Hz 300 hp at 460/480 V 60 Hz 400 hp at 575/600 V 60 Hz |
| Irms rated making capacity | 5090 A at 440 V |
| Coil technology | Built-in bidirectional peak limiting |
| Mechanical durability | 8 Mcycles |
| inrush power in VA (50/60 Hz, AC) | 750 VA |
| inrush power in W (DC) | 660 W |
| hold-in power consumption in VA (50/60 Hz, AC) | 15.5 VA |
| hold-in power consumption in W (DC) | 9.3 W |
| Operating time | 40…70 ms closing 15…50 ms opening |
| Maximum operating rate | 600 cyc/h AC-3 600 cyc/h AC-3e 300 cyc/h AC-1 150 cyc/h AC-4 |
| Connections – terminals | Power circuit: bar 2 – busbar cross section: 32 x 10 mm Power circuit: lugs-ring terminals 1 0.29 in² (185 mm²) Power circuit: bolted connection Control circuit: push-in 1 0.00…0.00 in² (0.2…2.5 mm²) – cable stiffness: solid stranded without cable end Control circuit: push-in 1 0.00…0.00 in² (0.25…2.5 mm²) – cable stiffness: flexible with cable end Control circuit: push-in 2 0.00…0.00 in² (0.5…1.0 mm²) with cable end Control circuit: push-in 0.00…0.00 in² (0.75…2.5 mm²) – cable stiffness: solid stranded without cable end Control circuit: push-in 0.00…0.00 in² (0.75…2.5 mm²) – cable stiffness: flexible with cable end |
| Connection pitch | 1.77 in (45 mm) |
| Mounting Support | Plate |
| Standards | EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 JIS C8201-4-1 JIS C8201-5-1 |
| Product Certifications | CB Scheme CCC cULus EAC CE UKCA EU-RO-MR by DNV-GL |
| Tightening torque | 309.78 lbf.in (35 N.m) |
| Height | 8.86 in (225 mm) |
| Width | 5.51 in (140 mm) |
| Depth | 8.90 in (226 mm) |
| Net Weight | 16.53 lb(US) (7.5 kg) |
| IP degree of protection | IP2X front face with shrouds IEC 60529 IP2X front face with shrouds VDE 0106 |
|---|---|
| Ambient Air Temperature for Operation | -13…140 °F (-25…60 °C) |
| Ambient Air Temperature for Storage | -76…176 °F (-60…80 °C) |
| Mechanical robustness | Vibrations 5…300 Hz 2 gn contactor open Vibrations 5…300 Hz 4 gn contactor closed Shocks 10 gn 11 ms contactor open Shocks 15 gn 11 ms contactor closed |
| color | Dark grey |
| Protective treatment | TH |
| Permissible ambient air temperature around the device | -40…158 °F (-40…70 °C) at Uc |
| Category | US10I1222329 |
|---|---|
| Discount Schedule | 0I12 |
| GTIN | 3606481921987 |
| Returnability | Yes |
| Country of origin | FR |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 12.20 in (31.000 cm) |
| Package 1 Width | 12.20 in (31.000 cm) |
| Package 1 Length | 8.86 in (22.500 cm) |
| Package 1 Weight | 17.03 lb(US) (7.726 kg) |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 29.53 in (75.000 cm) |
| Package 2 Width | 23.62 in (60.000 cm) |
| Package 2 Length | 31.50 in (80.000 cm) |
| Package 2 Weight | 92.38 lb(US) (41.904 kg) |
Main Document
Data Sheet : LC1G400KUEN
Based on 0 reviews
Be the first to review “Schneider LC1G400KUEN Contactor | Contactor, high power, TeSys Giga, standard version, 3 pole/NO, AC-3 <=440V 400A, 100-250VAC/DC coil”
Related products
- TeSys Giga contactors, Contactors & Protection Relays, Contactors & Reversing Contactors, Industrial Automation and Control, TeSys Giga Contactor, TeSys Giga contactors

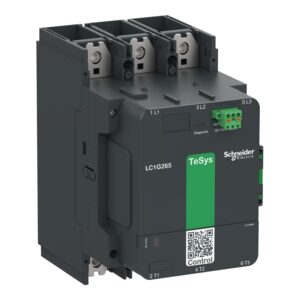

Schneider LC1G265KUEN | High power contactor, TeSys Giga, 3 pole (3NO), AC-3 <=440V 265A, standard version, 100…250V wide band AC/DC coil
