Schneider LC2K0910M7 | TeSys K reversing contactor – 3P – AC-3 <= 440 V 9 A – 1 NO – 220…230 VAC coil
Availability:
In stock
Schneider LC2K0910M7 | TeSys K reversing contactor – 3P – AC-3 <= 440 V 9 A – 1 NO – 220…230 VAC coil
3,620.53 EGP 6,704.68 EGP
In stock
CompareSchneider LC2K0910M7 | TeSys K reversing contactor – 3P – AC-3 <= 440 V 9 A – 1 NO – 220…230 VAC coil
Technical Specifications
Brand: Schneider Electric
Series: TeSys K
Model: LC2K0910M7
Contactor Type: 3P (Three Power Poles)
Function: Reversing Contactor (Forward and Reverse Operation)
Auxiliary Contacts: 1 NO (Normally Open)
Utilization Category: AC-3 (Motor Control)
Maximum Voltage: ≤ 440 V
Rated Current: 9 A
Coil Voltage: 220-230 V AC, 50/60 Hz
Electrical Durability: Designed for high switching cycles
Mounting Type: DIN rail or panel mounting
Terminal Type: Screw clamp terminals for secure wiring
Mechanical Life: Up to millions of operations
Compliance Standards: IEC 60947-4-1 for industrial motor control
Key Features
Reversing Contactor Design: Built-in mechanical interlock for safe and efficient motor direction reversal.
Compact and Space-Saving: Ideal for small control panels and tight installations.
Reliable 220-230 V AC Coil: Ensures stable operation in industrial control circuits.
Integrated 1 NO Auxiliary Contact: Allows for additional control circuit integration.
Screw Clamp Terminals: Provides secure and easy wiring for better electrical connectivity.
High Electrical and Mechanical Lifespan: Reduces maintenance needs and ensures long-term durability.
Flexible Mounting Options: Supports DIN rail and panel mounting for easy installation.
Compatible with Schneider Accessories: Can be integrated with overload relays and additional auxiliary contacts for enhanced functionality.
Applications
Reversible Motor Control: Ideal for forward and reverse operation of three-phase motors.
Control Panels: Used in compact electrical panels where space is limited.
Industrial Automation: Helps manage conveyors, hoists, and machine tools requiring bi-directional movement.
HVAC Systems: Controls fans, pumps, and ventilation units with reversible functions.
Material Handling Equipment: Suitable for applications in elevators, cranes, and conveyor systems.
| Range | TeSys |
|---|---|
| Product name | TeSys K |
| Product or component type | Reversing contactor |
| Device short name | LC2K |
| Device application | Control |
| contactor application | Motor control Resistive load |
| Utilisation category | AC-3 AC-3e AC-4 AC-1 |
| device presentation | Preassembled with reversing power busbar |
| poles description | 3P |
| power pole contact composition | 3 NO |
| [Ue] rated operational voltage | Power circuit: 690 V AC 50/60 Hz Signalling circuit: <= 690 V AC 50/60 Hz |
| [Ie] rated operational current | 9 A (at <60 °C) at <= 440 V AC AC-3 for power circuit 9 A (at <60 °C) at <= 440 V AC AC-3e for power circuit 20 A (at <60 °C) at <= 690 V AC AC-1 for power circuit |
| Motor power kW | 2.2 kW at 220…230 V AC 50/60 Hz 4 kW at 380…415 V AC 50/60 Hz 4 kW at 440/690 V AC 50/60 Hz |
| Control circuit type | AC at 50/60 Hz |
| [Uc] control circuit voltage | 220…230 V AC 50/60 Hz |
| Auxiliary contact composition | 1 NO |
| [Uimp] rated impulse withstand voltage | 8 kV |
| Overvoltage category | III |
| [Ith] conventional free air thermal current | 20 A (at 60 °C) for power circuit 10 A (at 50 °C) for signalling circuit |
| Irms rated making capacity | 110 A AC for power circuit conforming to IEC 60947 110 A AC for signalling circuit conforming to IEC 60947 |
| Rated breaking capacity | 110 A at 220…230 V conforming to IEC 60947 110 A at 380…400 V conforming to IEC 60947 110 A at 415 V conforming to IEC 60947 110 A at 440 V conforming to IEC 60947 80 A at 500 V conforming to IEC 60947 70 A at 660…690 V conforming to IEC 60947 |
| [Icw] rated short-time withstand current | 90 A 50 °C – 1 s for power circuit 85 A 50 °C – 5 s for power circuit 80 A 50 °C – 10 s for power circuit 60 A 50 °C – 30 s for power circuit 45 A 50 °C – 1 min for power circuit 40 A 50 °C – 3 min for power circuit 20 A 50 °C – >= 15 min for power circuit 80 A – 1 s for signalling circuit 90 A – 500 ms for signalling circuit 110 A – 100 ms for signalling circuit |
| Associated fuse rating | 25 A gG at <= 440 V for power circuit 25 A aM for power circuit 10 A gG for signalling circuit conforming to IEC 60947 10 A gG for signalling circuit conforming to VDE 0660 |
| Average impedance | 3 mOhm – Ith 20 A 50 Hz for power circuit |
| [Ui] rated insulation voltage | Power circuit: 600 V conforming to UL 508 Power circuit: 690 V conforming to IEC 60947-4-1 Signalling circuit: 690 V conforming to IEC 60947-4-1 Signalling circuit: 690 V conforming to IEC 60947-5-1 Signalling circuit: 600 V conforming to UL 508 Power circuit: 600 V conforming to CSA C22.2 No 14 Signalling circuit: 600 V conforming to CSA C22.2 No 14 |
| Electrical durability | 1.3 Mcycles 9 A AC-3 at Ue <= 440 V 1.3 Mcycles 9 A AC-3e at Ue <= 440 V 0.16 Mcycles 20 A AC-1 at Ue <= 690 V 0.02 Mcycles 54 A AC-4 at Ue <= 440 V |
| Interlocking type | Mechanical |
| Mounting support | Plate Rail |
| Standards | EN/IEC 60947-4-1 GB/T 14048.4 UL 60947-4-1 CSA C22.2 No 60947-4-1 JIS C8201-4-1 |
| Product certifications | CB Scheme CCC UL CSA EAC CE UKCA |
| Connections – terminals | Screw clamp terminals 1 cable(s) 1.5…4 mm²solid Screw clamp terminals 1 cable(s) 0.75…4 mm²flexible without cable end Screw clamp terminals 1 cable(s) 0.34…2.5 mm²flexible with cable end Screw clamp terminals 2 cable(s) 1.5…4 mm²solid Screw clamp terminals 2 cable(s) 0.75…4 mm²flexible without cable end Screw clamp terminals 2 cable(s) 0.34…1.5 mm²flexible with cable end |
| Tightening torque | 0.8…1.3 N.m – on screw clamp terminals Philips No 2 0.8…1.3 N.m – on screw clamp terminals flat Ø 6 mm 0.8…1.3 N.m – on screw clamp terminals pozidriv No 2 |
| Operating time | 10…20 ms coil energisation and NO closing 10…20 ms coil de-energisation and NO opening |
| Safety reliability level | B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 |
| Mechanical durability | 5 Mcycles |
| Maximum operating rate | 3600 cyc/h |
| Control circuit voltage limits | Operational: 0.8…1.15 Uc (at <50 °C) Drop-out: 0.2…0.75 Uc (at <50 °C) |
|---|---|
| Inrush power in VA | 30 VA (at 20 °C) |
| Hold-in power consumption in VA | 4.5 VA (at 20 °C) |
| Heat dissipation | 1.3 W |
| Auxiliary contacts type | type instantaneous 1 NO |
| Signalling circuit frequency | <= 400 Hz |
| Minimum switching current | 5 mA for signalling circuit |
| Minimum switching voltage | 17 V for signalling circuit |
| Non overlap distance | 0.5 mm |
| Insulation resistance | > 10 MOhm for signalling circuit |
| IP degree of protection | IP20 conforming to VDE 0106 |
|---|---|
| Protective treatment | TC conforming to IEC 60068 TC conforming to DIN 50016 |
| Ambient air temperature for operation | -25…50 °C |
| Ambient air temperature for storage | -50…80 °C |
| Operating altitude | 2000 m without derating |
| Flame retardance | V1 conforming to UL 94 Requirement 2 conforming to NF F 16-101 Requirement 2 conforming to NF F 16-102 |
| Mechanical robustness | Shocks contactor closed, on X axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor closed, on Y axis: 15 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor closed, on Z axis: 15 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor opened, on X axis: 6 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor opened, on Y axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor opened, on Z axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Vibrations contactor closed: 4 Gn, 5…300 Hz conforming to IEC 60068-2-6 Vibrations contactor opened: 2 Gn, 5…300 Hz conforming to IEC 60068-2-6 |
| Height | 58 mm |
| Width | 90 mm |
| Depth | 57 mm |
| Net weight | 0.39 kg |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.0 cm |
| Package 1 Width | 6.5 cm |
| Package 1 Length | 9.2 cm |
| Package 1 Weight | 362.0 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 25 |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 9.412 kg |
| Warranty | 18 months |
|---|
Main Document
Data Sheet : Download
Based on 0 reviews
Be the first to review “Schneider LC2K0910M7 | TeSys K reversing contactor – 3P – AC-3 <= 440 V 9 A – 1 NO – 220…230 VAC coil”
Related products
- Spacial SM, Industrial Automation and Control, Metallic Enclosures, Universal Enclosures

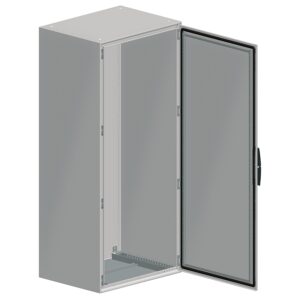

Schneider NSYSM1612402D | PanelSeT SM compact enclosure without mounting plate – 1600x1200x400 mm
