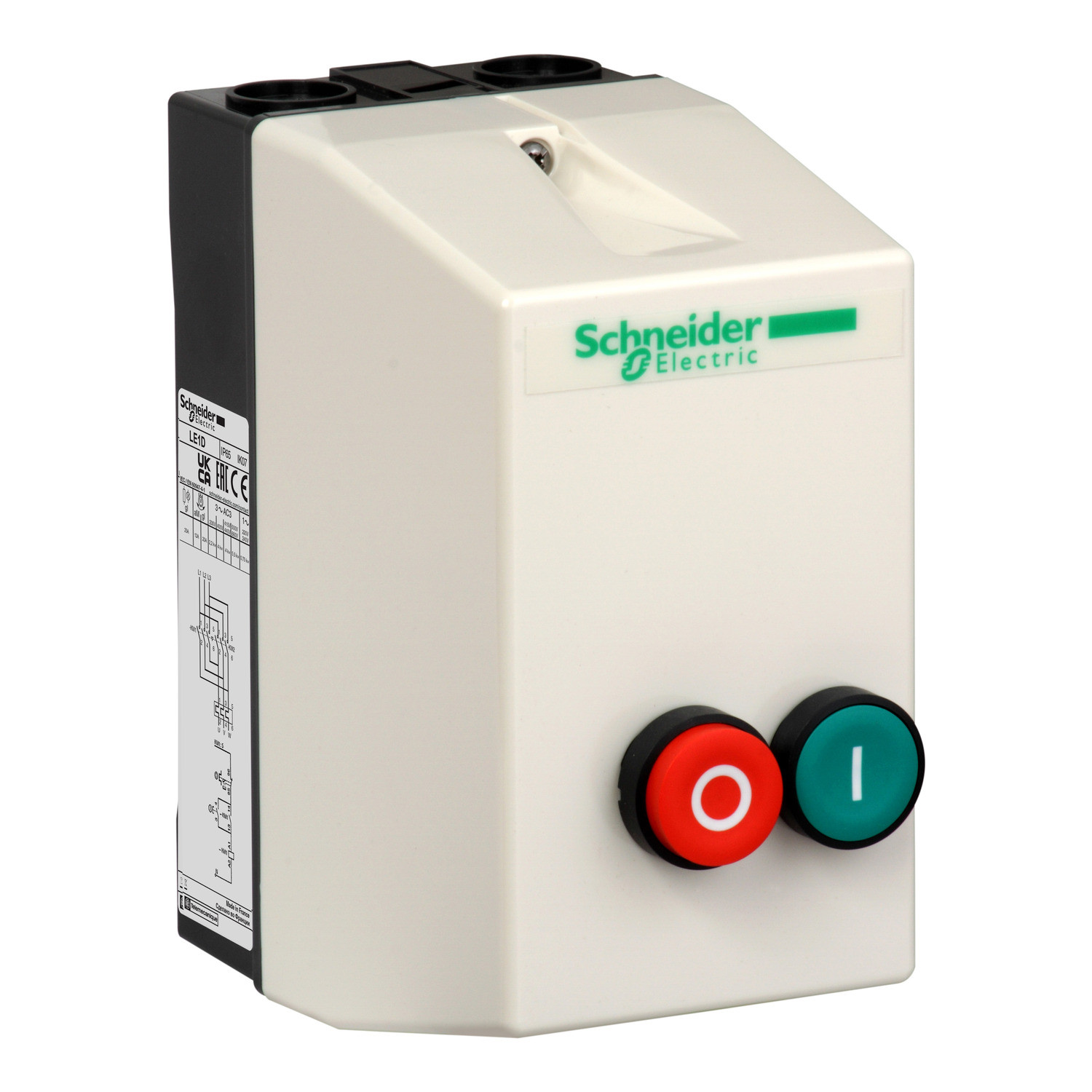

Schneider LE1D25Q7 | Enclosed DOL starter,TeSys LE,25A,380V AC coil,including 1 LC1D,2 pushbuttons
Original price was: EGP10,058.41.EGP5,540.20Current price is: EGP5,540.20.
Shipping calculated at checkout.
Schneider LE1D25Q7 | Enclosed DOL starter,TeSys LE,25A,380V AC coil,including 1 LC1D,2 pushbuttons
. Technical Specifications LE1D25Q7
-
Brand: Schneider Electric
-
Series: TeSys LE
-
Model Number: LE1D25Q7
-
Type: Enclosed Direct-On-Line (DOL) Starter
-
Contactor Model Included: LC1D25
-
Rated Operational Current (Ie): 25 A (AC-3 duty at 400 V)
-
Motor Power Rating (AC-3 at 400 V): Up to 11 kW (15 hp)
-
Control Coil Voltage: 380 V AC, 50/60 Hz
-
Enclosure Type: IP55 rated plastic enclosure
-
Pushbuttons Included:
-
1 x Green “Start” button
-
1 x Red “Stop” button
-
-
Mounting Type: Surface-mounted
-
Ambient Temperature Range: –5°C to +40°C (without derating)
-
Standards Compliance: IEC 60947-4-1 / EN 60947-4-1 / UL / CSA
. Key Features
-
Pre-wired and enclosed for quick installation and safe operation
-
Includes LC1D25 power contactor rated for standard 3-phase motors
-
High durability under frequent motor start/stop operations
-
Integrated Start and Stop pushbuttons for basic manual control
-
Compact IP55 enclosure offers protection against dust and water spray
-
Suitable for wall mounting in industrial and workshop environments
-
Quick access to terminals for simplified wiring and maintenance
. Typical Applications
The LE1D25Q7 DOL starter is ideal for controlling motors in the following use cases:
-
Small industrial machinery
-
HVAC equipment (fans, blowers, pumps)
-
Compressors and conveyor systems
-
Agricultural equipment
-
Workshops and processing lines
-
Building service motors (e.g., lifts, water pumps)
Advantages
-
Plug-and-play motor starter – saves installation time
-
Reliable Schneider quality with long service life
-
User-friendly control interface with built-in pushbuttons
-
Electrical and mechanical protection housed in a single unit
-
Designed for safety with a sealed, touch-safe enclosure
-
Cost-effective solution for DOL motor starting up to 11 kW
| Range | TeSys |
|---|---|
| Product name | TeSys LE |
| Device short name | LE1D |
| Product or component type | Enclosed DOL starter |
| Device application | Standard |
| utilisation category | AC-3 |
| Device composition | Thermal overload relay ordered separately Contactor |
| Control type | Push-button start green I Push-button stop/reset red O |
| Motor power kW | 11 kW at 380/400 V AC 50/60 Hz 11 kW at 415 V AC 50/60 Hz 11 kW at 440 V AC 50/60 Hz 15 kW at 500 V AC 50/60 Hz 15 kW at 660/690 V AC 50/60 Hz 5.5 kW at 220/230 V AC 50/60 Hz |
|---|---|
| [Ith] Conventional free air thermal current | 22 A |
| [Uc] control circuit voltage | 380 V AC 50/60 Hz |
| Cable entry number | 2 ISO20 top 2 ISO25 top 2 ISO20 bottom 2 ISO25 bottom |
| Width | 101 mm |
| height | 201 mm |
| Depth | 153.5 mm |
| Net weight | 1.015 kg |
| Material | Polycarbonate |
|---|---|
| IP degree of protection | IP65 conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to IEC 60529 |
| Standards | IEC 60947-4-1 |
| Ambient air temperature for operation | -5…40 °C |
| Environmental characteristic | Standard environment |
| product certifications | UKCA |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 20.500 cm |
| Package 1 Width | 18.500 cm |
| Package 1 Length | 26.000 cm |
| Package 1 Weight | 1.242 kg |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 22 |
| Package 2 Height | 75.000 cm |
| Package 2 Width | 60.000 cm |
| Package 2 Length | 80.000 cm |
| Package 2 Weight | 40.258 kg |
| Warranty | 12 months |
|---|
Data Sheet : LE1D25Q7
