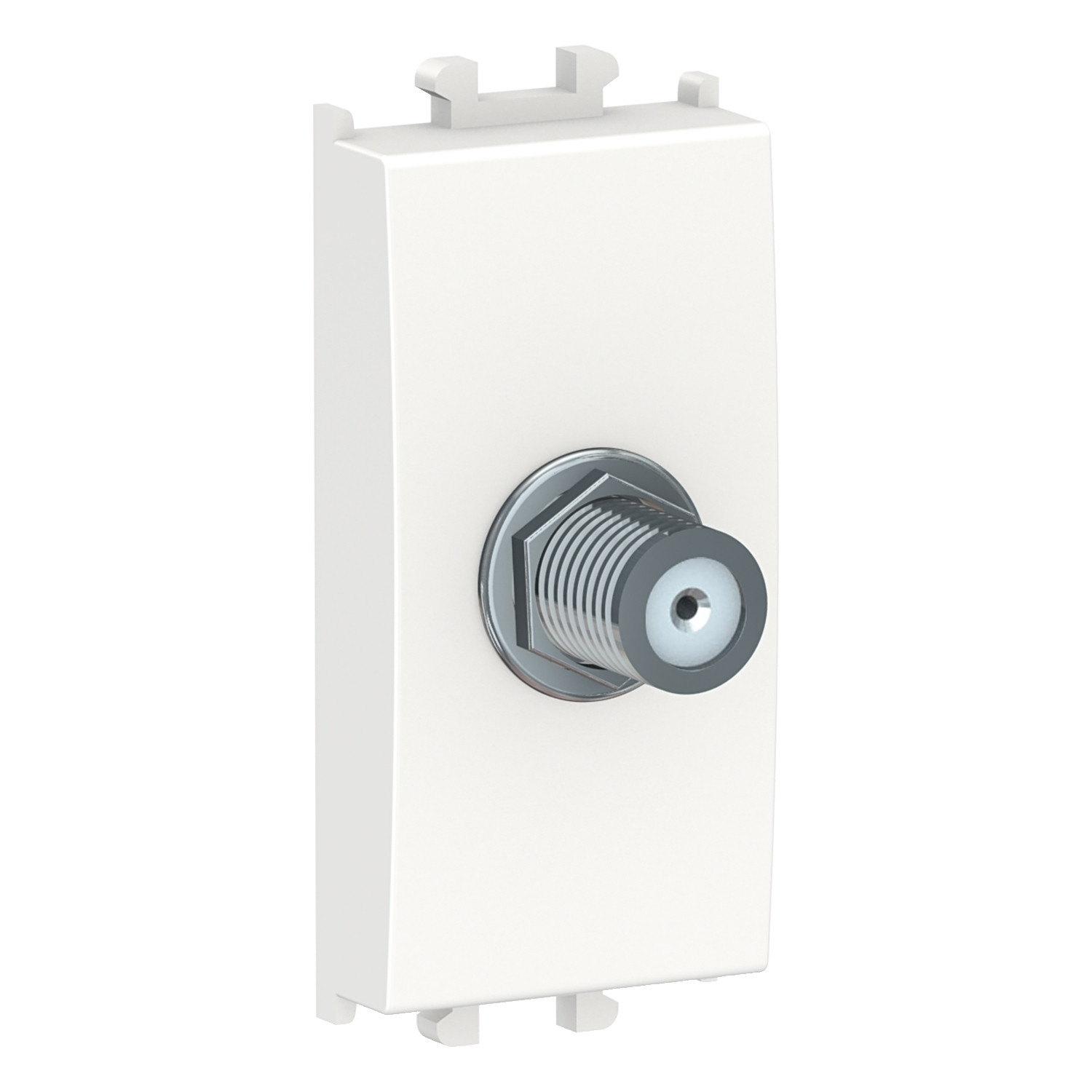

Schneider LMR6128001 | Easy Styl – 1 module Video SAT Socket Outlet – 1 gang – White

Original price was: EGP206.16.Current price is: EGP171.10.

Shipping calculated at checkout.
or

Schneider LMR6128001 | Easy Styl – 1 module Video SAT Socket Outlet – 1 gang – White

. Technical Specifications

  • Brand: Schneider Electric

  • Series: Easy Styl

  • Model Number: LMR6128001

  • Product Type: Video SAT (Satellite) Socket Outlet

  • Connector Type: Coaxial (F-type, female)

  • Signal Type: Satellite TV (SAT)

  • Number of Gangs: 1

  • Module Size: 1 module

  • Color: White (RAL 9003)

  • Mounting Type: Flush-mounted (modular)

  • Impedance: 75 Ohms (standard for satellite signals)

  • Frequency Range: Up to 2400 MHz (suitable for SAT TV)

  • Shielding: High shielding effectiveness for low signal loss

  • Material: UV-resistant thermoplastic

  • IP Rating: IP20 (indoor use only)

  • Operating Temperature: -5°C to +45°C

  • Standards Compliance:

    • IEC 61169-24 (for F-type connectors)

    • CE and RoHS compliant

. Key Features

  • F-type coaxial connector for satellite dish and decoder connections

  • Compact 1-module design fits into standard Easy Styl wall frames

  • High-frequency performance supports satellite signal transmission up to 2400 MHz

  • Minimal signal loss and high shielding for consistent TV reception

  • Clean and modern white finish integrates with contemporary interiors

  • Tool-free installation using snap-in modular mounting

. Typical Applications

This socket outlet is ideal for:

  • Home satellite TV systems (direct to decoder or satellite receiver)

  • Apartment buildings and villas with satellite infrastructure

  • Commercial and hospitality installations (hotels, conference rooms)

  • Media rooms and entertainment systems

  • Multi-room TV distribution setups

Main
Range of product Easy Styl
Range Easy Styl
Product or component type SAT connector
Device presentation Mechanism
Range compatibility Easy Styl
Number of modules 1 module
Fixing mode Clip-in
Colour tint White
TV socket type Individual socket
SAT connector F type
Type of packing Plastic bag with sticker
Quantity per set Set of 2
Type of cable Coaxial
Material ABS + PC
Height 51 mm
Width 22 mm
Depth 33 mm
Net weight 0.011 kg
IK degree of protection IK01
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 2.000 cm
Package 1 Width 3.000 cm
Package 1 Length 5.000 cm
Package 1 Weight 12.000 g
Unit Type of Package 2 BB1
Number of Units in Package 2 40
Package 2 Height 8.500 cm
Package 2 Width 14.500 cm
Package 2 Length 26.500 cm
Package 2 Weight 528.000 g
Unit Type of Package 3 S04
Number of Units in Package 3 400
Package 3 Height 30.000 cm
Package 3 Width 40.000 cm
Package 3 Length 60.000 cm
Package 3 Weight 5.521 kg
Data Sheet : LMR6128001
