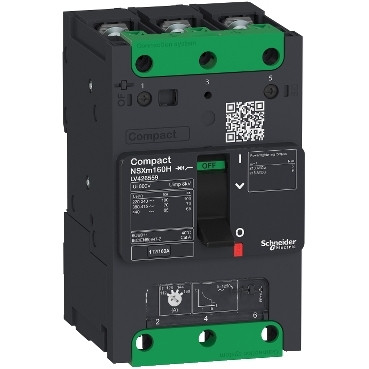

Schneider LV426450 | circuit breaker Compact NSXm 16A 3P 50kA at 380/415V(IEC) compression lug
Original price was: 24,185.90 EGP.15,478.97 EGPCurrent price is: 15,478.97 EGP.
Shipping calculated at checkout.
Introducing the LV426450 from Schneider Electric
The LV426450, a premium circuit breaker from Schneider Electric, is designed for optimal performance in electrical applications. This device ensures safety and reliability, making it an essential component for any electrical installation. With a compact design and robust specifications, it effectively meets the needs of various industrial and commercial settings.
Why Choose the LV426450 Circuit Breaker?
One of the standout benefits of the LV426450 is its ability to provide exceptional protection against electrical faults. With a breaking capacity of 50kA at 380/415V, this circuit breaker ensures that your electrical systems are safeguarded from overloads and short circuits. This means reduced downtime and lower maintenance costs for your operations.
Enhanced Safety Features
Safety is a top priority with the LV426450. The device is designed to interrupt the current flow promptly in the event of a fault, minimizing the risk of electrical fires or equipment damage. This reliability not only protects your assets but also enhances the overall safety of your workplace.
Compact Design for Versatile Applications
With its compact dimensions, the LV426450 can fit into tighter spaces without sacrificing performance. This makes it an ideal choice for modern electrical panels where space is at a premium. Its versatility allows it to be used in various applications, from commercial buildings to industrial facilities.
Easy Installation and Maintenance
The LV426450 is designed with the user in mind, making installation straightforward and hassle-free. The compression lug feature allows for secure connections, ensuring that the circuit breaker operates smoothly. Additionally, routine maintenance is simplified, allowing you to keep your systems running efficiently over time.
Conclusion: Invest in Quality with Schneider Electric
Investing in the LV426450 from Schneider Electric means choosing a product that combines durability, reliability, and advanced technology. This circuit breaker not only meets but exceeds industry standards, providing peace of mind and long-term value for your electrical installations.
| Range | ComPact |
|---|---|
| Product name | ComPact NSXm |
| Range of product | ComPact NSXm |
| Device short name | NSXm 16N |
| Product or component type | Circuit breaker |
| Device application | Protection Distribution |
| Number of poles | 3P |
| Protected poles description | 3D |
| [In] rated current | 16 A at 40 °C |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| Network type | AC |
| Network frequency | 50/60 Hz |
| Suitability for isolation | Yes conforming to EN/IEC 60947-2 |
| Utilisation category | Category A |
| [Icu] rated ultimate short-circuit breaking capacity | 90 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2 50 kA Icu at 380...415 V AC 50/60 Hz conforming to IEC 60947-2 50 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 25 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 15 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2 10 kA Icu at 600...690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Performance level | N 50 kA 415 V AC |
| Trip unit name | TM-D |
| Trip unit technology | Thermal-magnetic |
| Trip unit protection functions | LI |
| Control type | Toggle |
| Circuit breaker mounting mode | By screws Clip-on |
| [Ui] rated insulation voltage | 800 V AC 50/60 Hz |
|---|---|
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ics] rated service short-circuit breaking capacity | 90 kA at 220...240 V AC 50/60 Hz conforming to IEC 60947-2 50 kA at 380...415 V AC 50/60 Hz conforming to IEC 60947-2 50 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 25 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2 15 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2 2.5 kA at 660...690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Mechanical durability | 20000 cycles |
| Electrical durability | 10000 cycles at 440 V In 20000 cycles at 440 V In/2 5000 cycles at 690 V In 10000 cycles at 690 V In/2 |
| Mounting support | Plate DIN rail |
| Connection terminals | compression lug/busbar |
| Connection pitch | 35 mm with spreaders 27 mm without spreaders |
| 9 mm pitches | 9 module |
| Protection type | L : for overload protection (thermal) I : for short-circuit protection (magnetic) |
| Trip unit rating | 16 A at 40 °C |
| Long-time pick-up adjustment type Ir (thermal protection) | Adjustable |
| [Ir] long-time protection pick-up adjustment range | 0.7...1 x In |
| Long-time protection delay adjustment type tr | Fixed |
| [Im] magnetic protection pick-up range | 500 A |
| Earth-leakage protection | Without |
| Number of slots for electrical auxiliaries | 1 slot(s) for auxiliary switch OF 1 slot(s) for alarm switch SD 1 slot(s) for voltage release MN or MX |
| Width (W) | 81 mm |
| Height (H) | 137 mm |
| Depth (D) | 80 mm |
| Net weight | 1.06 kg |
| Colour | Grey (RAL 7016) |
| Standards | EN/IEC 60947 |
|---|---|
| Product certifications | CCC EAC Marine |
| Pollution degree | 3 conforming to IEC 60664-1 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to IEC 62262 |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -50…85 °C |
| Relative humidity | 0…95 % |
| Operating altitude | 0...2000 m without derating 2000...5000 m with derating |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.949 cm |
| Package 1 Width | 12.064 cm |
| Package 1 Length | 21.501 cm |
| Package 1 Weight | 1159.2 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 9 |
| Package 2 Height | 30 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 12.29 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 216 |
| Package 3 Height | 110 cm |
| Package 3 Width | 80 cm |
| Package 3 Length | 120 cm |
| Package 3 Weight | 304.89 kg |
Data Sheet : Download
