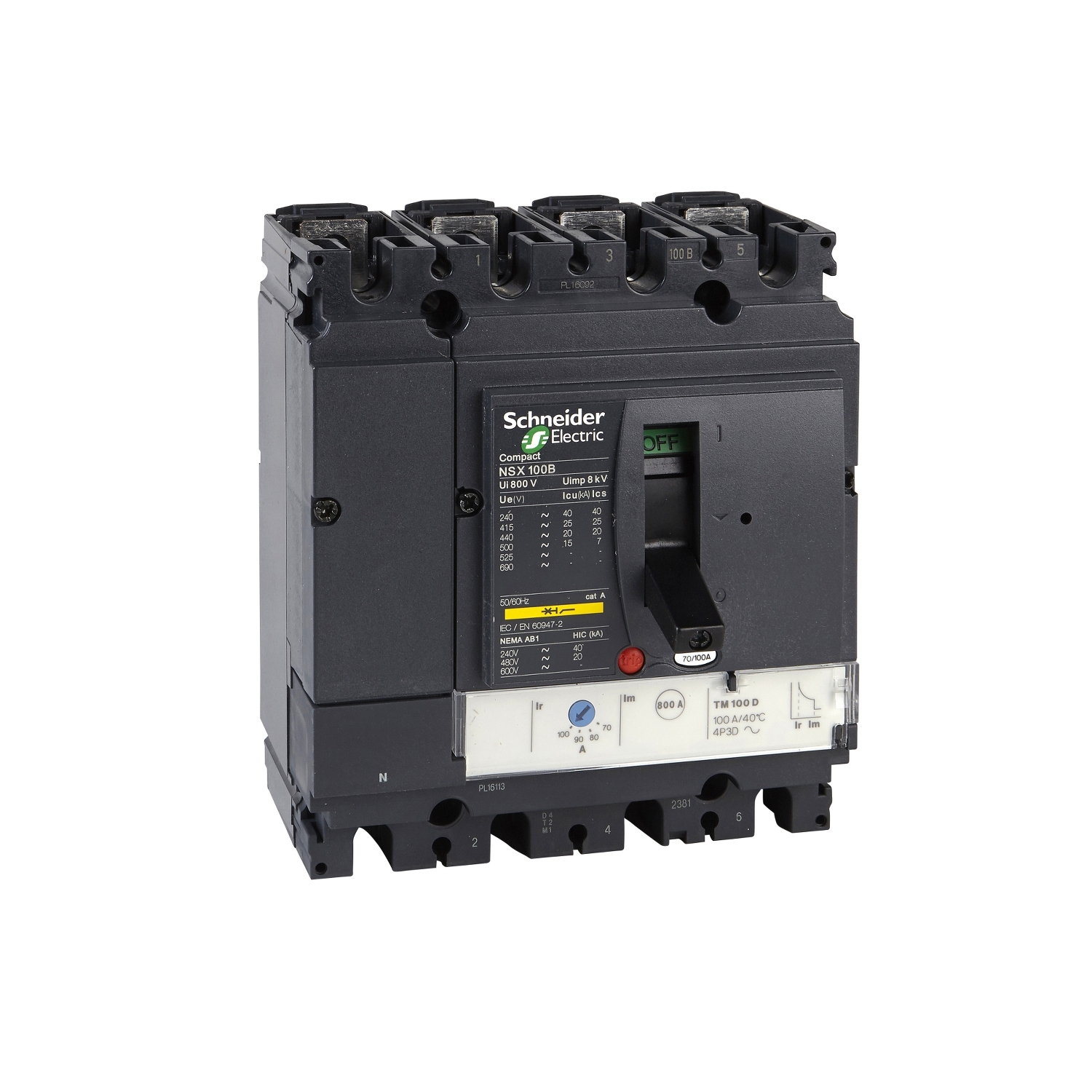

Schneider LV429564 | circuit breaker ComPact NSX100B, 25 kA at 415 VAC, TMD trip unit 40 A, 4 poles 3d
Out of stock
Schneider LV429564 | circuit breaker ComPact NSX100B, 25 kA at 415 VAC, TMD trip unit 40 A, 4 poles 3d
13,184 EGP 20,600 EGP
Out of stock
CompareSchneider LV429564 | circuit breaker ComPact NSX100B, 25 kA at 415 VAC, TMD trip unit 40 A, 4 poles 3d
Schneider LV429564: A Comprehensive Review of This High-Performance Circuit Breaker
In the world of electrical protection, the Schneider LV429564 circuit breaker is a notable choice for those seeking reliable and efficient solutions. Designed to meet high standards, this breaker offers superior performance and safety features. Let’s dive into the details of what makes the LV429564 a standout option in circuit breaker technology.
Basics of Circuit Breakers
Circuit breakers play a crucial role in electrical systems by protecting circuits from damage caused by overloads or short circuits. They automatically interrupt the flow of electricity when a fault is detected, preventing potential hazards like electrical fires and equipment damage.
Technical Specifications of Schneider LV429564
The Schneider LV429564 is engineered to meet demanding performance requirements. Here’s a closer look at its specifications:
- Electrical Ratings: it supports a voltage rating of up to 690V and a current rating of up to 1600A. This makes it suitable for high-load applications.
- Dimensions: The breaker features a compact design that allows for flexible installation in various electrical panels.
Key Features of Schneider LV429564
Performance Attributes
it is built to deliver consistent and reliable performance. It can handle high electrical loads, ensuring that it meets the needs of complex and demanding electrical systems.
Safety Features
Safety is a top priority with it. It includes advanced protection features such as thermal-magnetic trip units, which offer dependable protection against both overloads and short circuits.
Ease of Installation
it is designed for ease of installation. It comes with comprehensive instructions and requires minimal tools, making the setup process straightforward and efficient.
Applications of Schneider LV429564
Industrial Environments
In industrial settings, where electrical loads are substantial, it provides robust protection. It is ideal for use in manufacturing facilities, large machinery, and other heavy-duty applications.
Commercial Settings
For commercial buildings such as offices and retail spaces, it ensures that the electrical system operates safely and reliably. It helps protect sensitive equipment and supports smooth business operations.
Residential Use
Even in residential settings, it offers excellent protection. It safeguards home electrical systems, appliances, and wiring, ensuring a safe and reliable power supply.
Installation Instructions
Preparation and Necessary Tools
Before installation, ensure that the main power supply is turned off. Gather tools such as screwdrivers, wire cutters, and a voltage tester.
Step-by-Step Installation Process
- Mounting: Install the circuit breaker in the designated electrical panel.
- Wiring: Connect the input and output wires according to the provided manual.
- Securing: Tighten all connections to ensure they are secure.
- Testing: Turn on the power and test the breaker to ensure it functions correctly.
Post-Installation Checks
After installation, verify that the breaker is properly aligned and operating as expected. Look for any signs of overheating or unusual noises.
Maintenance and Troubleshooting
Routine Maintenance Tips
To maintain the LV429564, follow these tips:
- Regularly inspect the breaker for signs of wear or damage.
- Clean the breaker to prevent dust accumulation.
- Periodically test the breaker to ensure it is functioning properly.
Common Issues and How to Resolve Them
Common issues include frequent tripping or failure to reset. Check for overloads or short circuits in the electrical system and address any underlying issues.
| Range | ComPact |
|---|---|
| Product name | ComPact NSX |
| Range of product | ComPact NSX100…250 |
| Device short name | NSX100B |
| Product or component type | Circuit breaker |
| Device application | Distribution |
| Number of poles | 4P |
| Protected poles description | 3t |
| Neutral position | Left |
| [In] rated current | 40 A at 40 °C |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| Network type | AC |
| Network frequency | 50/60 Hz |
| Suitability for isolation | Yes conforming to EN/IEC 60947-2 |
| Utilisation category | Category A |
| [Icu] rated ultimate short-circuit breaking capacity | 15 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 20 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 25 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 40 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 |
| Performance level | B 25 kA 415 V AC |
| Trip unit name | TM-D |
| Trip unit technology | Thermal-magnetic |
| Trip unit protection functions | LI |
| Control type | Toggle |
| Circuit breaker mounting mode | Fixed |
| [Ui] rated insulation voltage | 800 V AC 50/60 Hz |
|---|---|
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ics] rated service short-circuit breaking capacity | 20 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 25 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 40 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 7.5 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2 |
| Mechanical durability | 50000 cycles |
| Electrical durability | 10000 cycles at 690 V In 20000 cycles at 690 V In/2 30000 cycles at 440 V In 50000 cycles at 440 V In/2 |
| Mounting support | Backplate |
| Upside connection | Front |
| downside connection | Front |
| Connection pitch | 35 mm |
| Protection type | L : for overload protection (thermal) I : for short-circuit protection (magnetic) |
| Trip unit rating | 40 A at 40 °C |
| Long-time pick-up adjustment type Ir (thermal protection) | Adjustable |
| [Ir] long-time protection pick-up adjustment range | 0.7…1 x In |
| Long-time protection delay adjustment type tr | Fixed |
| [tr] long-time protection delay adjustment range | 120…400 s at 1.5 x In 15 s at 6 x Ir |
| Short-time protection pick-up adjustment type Isd | Fixed |
| [Isd] Short-time protection pick-up adjustment range | 500 A |
| Short-time protection delay adjustment type tsd | Fixed |
| Earth-leakage protection | Without |
| Neutral protection settings | No protection (3t) |
| Number of slots for electrical auxiliaries | 5 slot(s) |
| Width (W) | 140 mm |
| Height (H) | 161 mm |
| Depth (D) | 86 mm |
| Net weight | 2.4 kg |
| Standards | EN/IEC 60947 |
|---|---|
| Product certifications | CCC EAC Marine |
| Overvoltage category | Class II |
| Electrical shock protection class | Class II |
| Pollution degree | 3 conforming to IEC 60664-1 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to IEC 62262 |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -50…85 °C |
| Relative humidity | 0…95 % |
| Operating altitude | 0…2000 m without derating 2000 m…5000 m with derating |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 14.5 cm |
| Package 1 Width | 17.7 cm |
| Package 1 Length | 17.81 cm |
| Package 1 Weight | 2.356 kg |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 14.54 kg |
| Warranty | 18 months |
|---|
