Schneider LV430470 | trip unit MicroLogic 2.2 for ComPact NSX 160/250 circuit breakers, electronic, rating 160A, 3 poles 3d
Original price was: 14,621.63 EGP.9,357.84 EGPCurrent price is: 9,357.84 EGP.
Introducing the LV430470 from Schneider Electric
The LV430470 is an exceptional trip unit designed specifically for the ComPact NSX 160/250 circuit breakers. Manufactured by Schneider Electric, this electronic device is rated for 160A and features a robust 3-pole configuration. It is engineered to provide superior protection and reliability in various electrical applications, making it an indispensable component for any industrial or commercial setup.
Enhancing Safety and Efficiency
One of the standout benefits of the LV430470 is its ability to enhance safety within your electrical systems. By utilizing advanced electronic technology, this trip unit effectively monitors electrical currents and promptly disconnects the circuit in the event of an overload or short circuit. This proactive approach significantly reduces the risk of equipment damage and mitigates potential hazards, ensuring a safer working environment.
Seamless Integration
Designed for compatibility with ComPact NSX circuit breakers, the LV430470 offers seamless integration into existing systems. This compatibility means that installation is straightforward, allowing you to enhance your electrical infrastructure without extensive modifications. Whether you are upgrading an old system or installing a new one, this trip unit ensures that you can maintain high operational efficiency with minimal downtime.
Advanced Monitoring and Control
Another compelling advantage of this model is its advanced monitoring capabilities. The LV430470 allows for real-time monitoring of electrical parameters, enabling users to make informed decisions based on accurate data. This feature is particularly beneficial for facility managers looking to optimize energy consumption and reduce operational costs. By providing insights into electrical usage, it empowers you to implement strategies for energy efficiency and sustainability.
Reliability That You Can Trust
Reliability is crucial when it comes to electrical components, and the LV430470 excels in this area. Schneider Electric is known for its commitment to quality and innovation, and this trip unit is no exception. With rigorous testing and adherence to industry standards, you can trust that this device will perform consistently under various conditions, giving you peace of mind and confidence in your electrical systems.
Conclusion
In summary, the LV430470 from Schneider Electric is not just a trip unit; it’s a vital tool for ensuring electrical safety, efficiency, and reliability. Whether you are upgrading your current circuit protection or installing a new system, this model offers the best in performance and peace of mind.
| Range | ComPact |
|---|---|
| Range of product | ComPact NSX100...250 |
| Product or component type | Trip unit |
| Trip unit name | MicroLogic 2.2 |
| Trip unit technology | Electronic |
| Range compatibility | ComPact NSX160 ComPact NSX250 |
| Device application | Distribution |
| Number of poles | 3P |
| Protected poles description | 3t |
| Trip unit protection functions | LSoI |
| Protection type | L : for overload protection (long time) So : for short time short-circuit protection with fixed delay I : for instantaneous short-circuit protection |
| Trip unit rated current | 160 A at 40 °C |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| network type | AC |
| Network frequency | 50/60 Hz |
| Long-time pick-up adjustment type Ir (thermal protection) | Adjustable 9 settings |
|---|---|
| [Ir] long-time protection pick-up adjustment range | 63...160 A |
| Long-time protection delay adjustment type tr | Fixed |
| [tr] long-time protection delay adjustment range | 11 s at 7.2 x Ir 16 s at 6 x Ir 400 s at 1.5 x Ir |
| Thermal memory | 20 minutes before and after tripping |
| Short-time protection pick-up adjustment type Isd | Adjustable 9 settings |
| [Isd] Short-time protection pick-up adjustment range | 1.5...10 x Ir |
| Short-time protection delay adjustment type tsd | Fixed |
| [tsd] Short-time protection delay adjustment range | 0.02 s |
| Instantaneous protection pick-up adjustment type Ii | Fixed |
| [Ii] instantaneous protection pick-up adjustment range | 2400 A |
| Earth-leakage protection | Without |
| Zone selective interlocking ZSI | Without |
| Local signalling | Flashing LED (green) for ready to operate LED 105 % Ir (red) for overload LED 90 % Ir (orange) for overload |
| Standards | UL 508 EN/IEC 60947-2 |
|---|---|
| Product certifications | Marine EAC CCC |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -50…85 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.5 cm |
| Package 1 Width | 9.5 cm |
| Package 1 Length | 11 cm |
| Package 1 Weight | 440 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 28 |
| Package 2 Height | 30 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 12.66 kg |
| Warranty | 18 months |
|---|
Related products
Out of stock

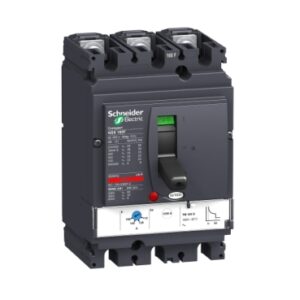

Schneider LV430631 Compact | circuit breaker ComPact NSX160F, 36 KA at 415 VAC, TMD trip unit 125 A, 3 poles 3d
Original price was: 25,956.52 EGP.17,131.30 EGPCurrent price is: 17,131.30 EGP.In stock
Schneider LV432893 Compact | circuit breaker ComPact NSX630N, 50 kA at 415 VAC, MicroLogic 2.3 trip unit 630 A, 3 poles 3d
Original price was: 101,345.89 EGP.64,861.37 EGPCurrent price is: 64,861.37 EGP.In stock
Schneider LV429763 | circuit breaker ComPact NSX100H, 70 kA at 415 VAC, MA trip unit 12.5 A, 3 poles 3d
Original price was: 27,000.47 EGP.17,820.30 EGPCurrent price is: 17,820.30 EGP.In stock
Schneider LV430320 | circuit breaker ComPact NSX160B, 25 kA at 415 VAC, TMD trip unit 160 A, 4 poles 3d
Original price was: 33,400.37 EGP.21,376.24 EGPCurrent price is: 21,376.24 EGP.In stock

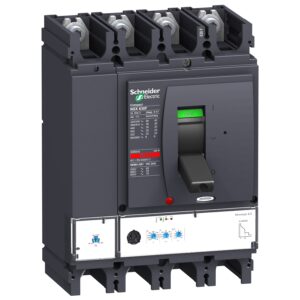

Schneider LV432896 | circuit breaker ComPact NSX630H, 70 kA at 415 VAC, MicroLogic 2.3 trip unit 630 A, 4 poles 4d
