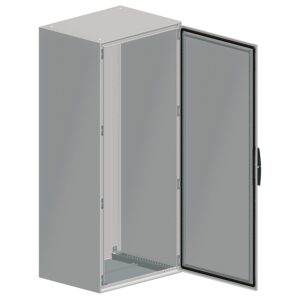

Schneider NSYSM16640 | Spacial SM compact enclosure without mounting plate – 1600x600x400 mm

Schneider Electric
Availability:

In stock


Schneider NSYSM16640 | Spacial SM compact enclosure without mounting plate – 1600x600x400 mm

45,780 EGP 66,348 EGP

In stock

Compare

Schneider NSYSM16640: A Comprehensive Guide

Introduction

In the realm of electrical installations, having reliable and robust enclosures is paramount. The Schneider NSYSM16640 stands as a testament to quality and durability. This article delves into the features, benefits, and applications of the Schneider NSYSM16640, shedding light on why it’s a preferred choice for professionals.

What is the Schneider NSYSM16640?

The Schneider NSYSM16640 is an advanced electrical enclosure meticulously engineered to house and safeguard electrical and electronic equipment. Manufactured by Schneider Electric, a renowned name in energy management and automation solutions, the NSYSM16640 is celebrated for its superior performance and longevity.

Key Specifications

  • Dimensions: 1600mm x 600mm x 400mm
  • Material: Galvanized steel with epoxy-polyester powder coating
  • Protection Rating: IP66
  • Color: RAL 7035 (Light Grey)
  • Weight: Approximately 45 kg

Features of the Schneider NSYSM16640

Material and Durability

Constructed from high-quality galvanized steel, the NSYSM16640 boasts exceptional durability to withstand demanding environments. Its epoxy-polyester powder coating adds an extra layer of protection against corrosion, ensuring longevity and reliability even in harsh conditions.

Design and Aesthetics

With its sleek design and light grey finish, the NSYSM16640 not only serves its functional purpose but also adds a touch of modernity to any setting. Its aesthetics make it suitable for a wide range of applications, from industrial facilities to commercial spaces.

Protection Ratings

The NSYSM16640 boasts an impressive IP66 protection rating, providing complete protection against dust ingress and powerful jets of water. This makes it ideal for use in environments where exposure to moisture and contaminants is a concern.

Benefits of Using Schneider NSYSM16640

Enhanced Safety

Safety is of paramount importance in any electrical setup. The NSYSM16640 offers robust protection for internal components, minimizing the risk of electrical hazards and ensuring the safety of personnel and equipment.

Versatility in Applications

Whether it’s for industrial, commercial, or residential use, the NSYSM16640 excels in diverse applications. Its versatility makes it a go-to choice for professionals across various industries.

Ease of Installation and Maintenance

Engineered for hassle-free installation, the NSYSM16640 comes equipped with user-friendly features that simplify the mounting process. Additionally, its design facilitates easy maintenance, saving time and effort for operators.

Applications of Schneider NSYSM16640

Industrial Environments

In industrial settings where equipment is subjected to rigorous conditions, the NSYSM16640 shines. Its robust construction and high protection rating make it ideal for safeguarding critical electrical components in factories and manufacturing plants.

Commercial Use

For commercial establishments seeking a blend of functionality and aesthetics, the NSYSM16640 fits the bill perfectly. It can be seamlessly integrated into office buildings, retail outlets, and other commercial spaces, offering reliable protection for electrical systems.

Residential Applications

While primarily used in larger-scale projects, the NSYSM16640 is also suitable for residential applications, especially in homes with advanced electrical infrastructure requirements. Its durability and performance ensure peace of mind for homeowners.

Installation Process

Step-by-Step Guide

  1. Preparation: Gather all necessary tools and components.
  2. Mounting: Securely mount the enclosure to the desired location using appropriate fixtures.
  3. Cable Entry: Utilize pre-punched holes for easy cable entry, ensuring proper sealing to maintain the IP rating.
  4. Component Installation: Install electrical components inside the enclosure according to specifications.
  5. Sealing: Ensure all openings are adequately sealed to prevent ingress of dust and moisture.
  6. Final Inspection: Conduct a thorough inspection to verify proper installation and functionality.
SKU: NSYSM16640 Category:
Main
Range Spacial
Product name Spacial SM
Product or Component Type Compact enclosure
Application Multi-purpose
Installation accessory type Floor-standing
Device composition 1 body
1 cable gland plate
1 locking system with handle door
4 mounting plate bracket
1 door
Removable parts Door by screws hinge
Mounting plate bracket by screws
enclosure nominal height 62.99 in (1600 mm)
enclosure nominal width 23.62 in (600 mm)
Enclosure nominal depth 15.75 in (400 mm)
Complementary
Number of doors Front 1
Door opening side Reversible 120 °)
Door type Solid
lock type 4 points lock, handle with 5 mm double bar insert
Body type Single piece body with welded rear panel
Front part forming a rigid frame with welded corners
Mounting plate description Without mounting plate
Type of gland plate Standard
Cable entry 1 entry
Material Body sheet steel
Door sheet steel
Hinge zamak
Surface finish Epoxy-polyester powder
color Enclosure Gray RAL 7035)
Handle Black RAL 9005)
accessibility for operation Front
Net Weight 147.71 lb(US) (67 kg)
Environment
Standards IEC 62208
Product Certifications UL
DNV
BV
IK degree of protection IK10 IEC 62262
IP degree of protection IP55 IEC 60529
Ordering and shipping details
Category US10ES180035
Discount Schedule 0ES1
GTIN 3606485120560
Returnability No
Country of origin ES
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 68.11 in (173.0 cm)
Package 1 Width 25.39 in (64.5 cm)
Package 1 Length 19.29 in (49.0 cm)
Package 1 Weight 147.71 lb(US) (67.0 kg)
Unit Type of Package 2 PAL
Number of Units in Package 2 2
Package 2 Height 38.58 in (98 cm)
Package 2 Width 25.59 in (65 cm)
Package 2 Length 68.11 in (173 cm)
Package 2 Weight 288.81 lb(US) (131 kg)
Contractual warranty
Warranty 18 months
