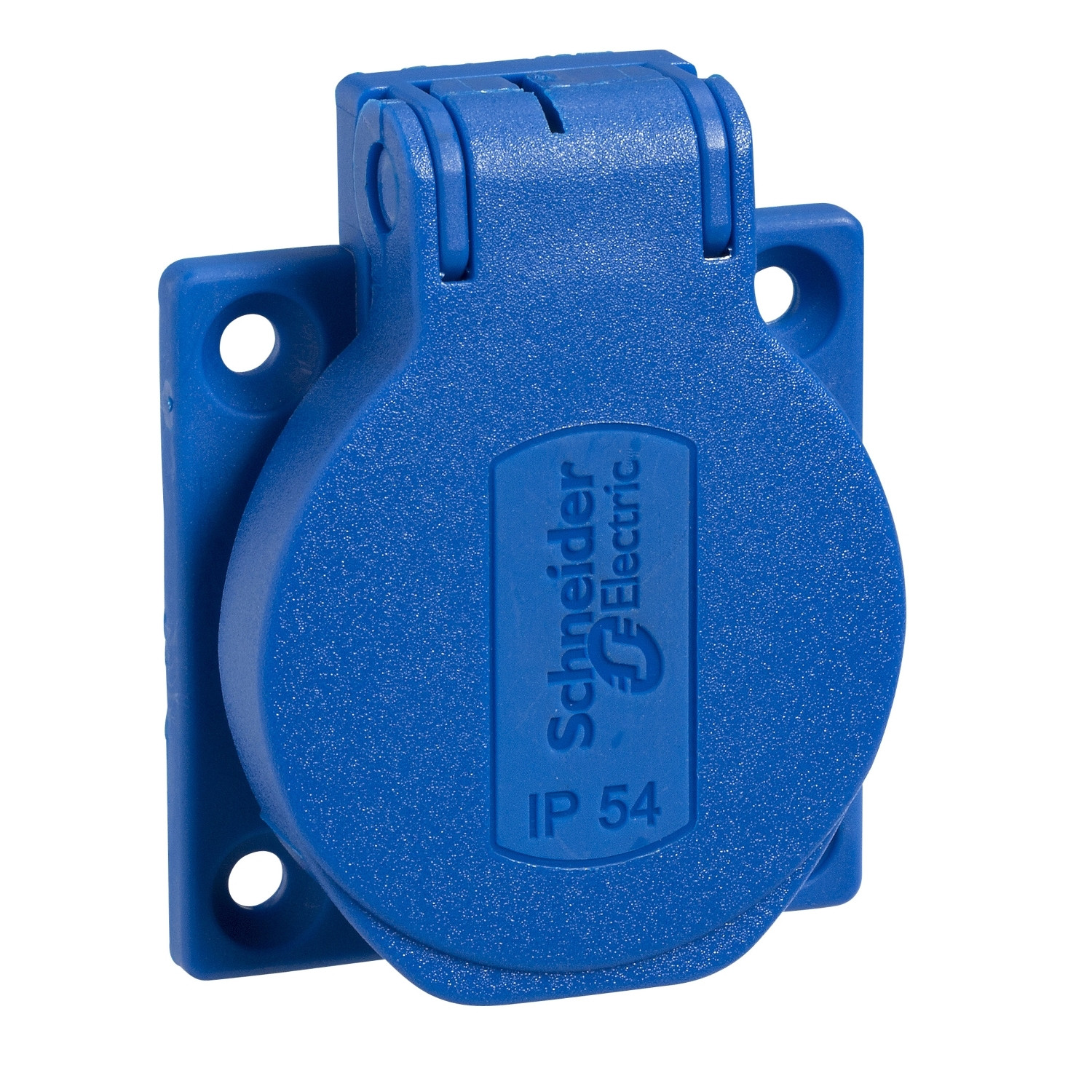

Schneider PKS51B | Socket outlet, Mureva PK, Schuko Panel, 50×50, Blue, IP54
Availability:
In stock
Schneider PKS51B | Socket outlet, Mureva PK, Schuko Panel, 50×50, Blue, IP54
265 EGP 405 EGP
In stock
Compare| Range | Mureva |
|---|---|
| Product or component type | Socket-outlet |
| Device short name | Mureva socket |
| Plug, socket category | Low voltage |
| poles description | 2P + E |
| Network type | AC |
| Outlet standard | German |
| [In] rated current | 10 A 16 A |
|---|---|
| Network frequency | 50/60 Hz |
| [Ue] rated operational voltage | 250 V |
| Plug, socket material | Housing: self-extinguishing engineering polymer |
| Contacts material | Pins: stainless steel Springs: stainless steel |
| Cover type | Lid |
| Device mounting | Flush |
| Mounting mode | Panel-mounted |
| Connections – terminals | Captive screws |
| Location of conductor inlet | Back |
| Net weight | 0.05 kg |
| Base dimension | 50 x 50 mm |
| Height | 85 mm |
| Width | 65 mm |
| Depth | 45.2 mm |
| Colour | Blue |
| Standards | IEC 60309-2 IEC 60309-1 |
|---|---|
| IP degree of protection | IP54 conforming to IEC 60529 |
| IK degree of protection | IK09 conforming to EN 62262 |
| Fire resistance | 850 °C conforming to IEC 60695-2-11 |
| Relative humidity | 50 % at 40 °C 70 % at 30 °C 90 % at 20 °C |
| Ambient air temperature for operation | 35 °C ( 86400 s ) -25…40 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.3 cm |
| Package 1 Width | 5.1 cm |
| Package 1 Length | 6.3 cm |
| Package 1 Weight | 45 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 40 |
| Package 2 Height | 14.4 cm |
| Package 2 Width | 19.2 cm |
| Package 2 Length | 29 cm |
| Package 2 Weight | 1.91 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 120 |
| Package 3 Height | 30 cm |
| Package 3 Width | 30 cm |
| Package 3 Length | 40 cm |
| Package 3 Weight | 6.217 kg |
| Warranty | 18 months |
|---|
