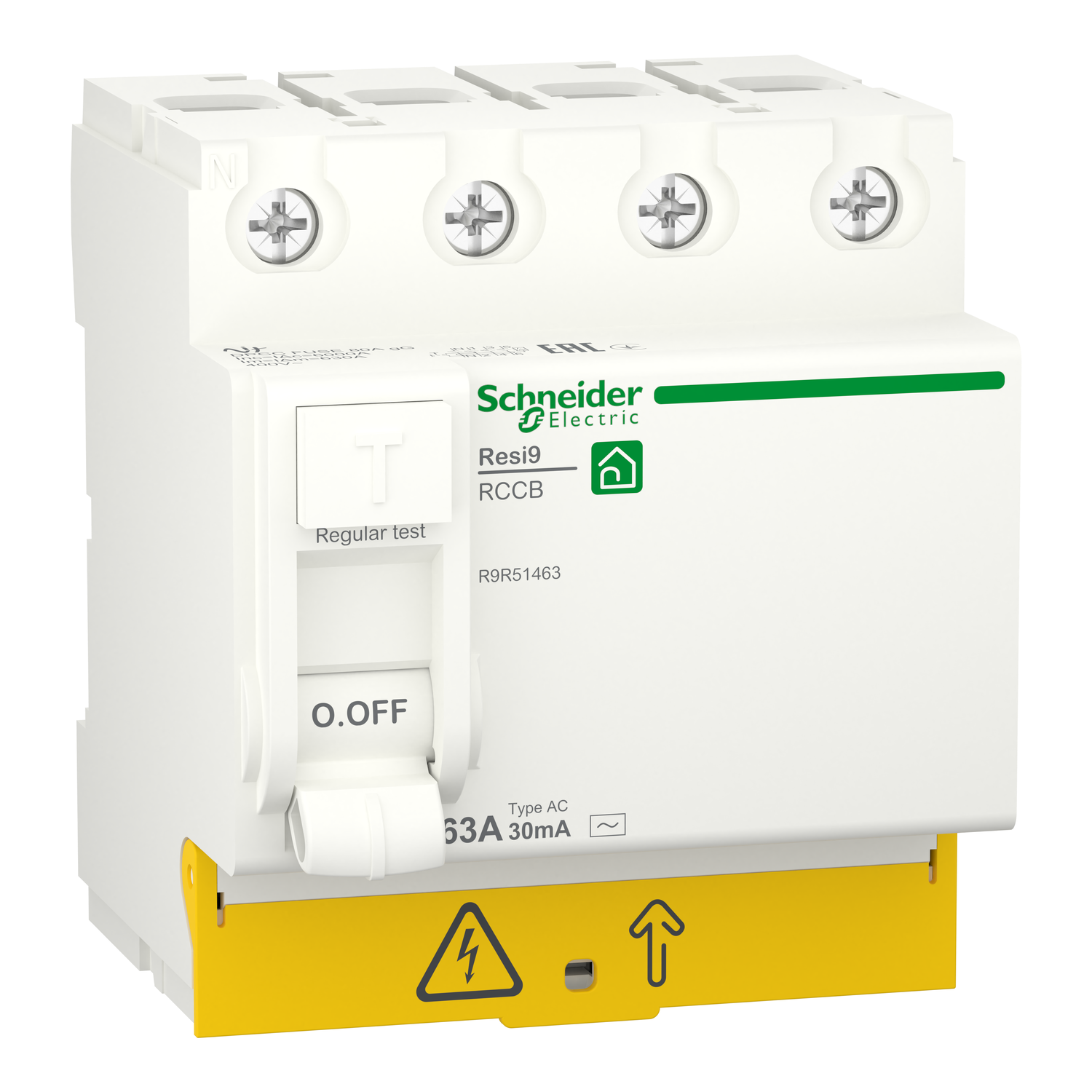

Schneider R9R51463 | Residual current circuit breaker (RCCB), Resi9, 4P, 63A, AC type, 30mA
Original price was: EGP6,427.41.EGP4,049.30Current price is: EGP4,049.30.
Shipping calculated at checkout.
Schneider R9R51463 | Residual current circuit breaker (RCCB), Resi9, 4P, 63A, AC type, 30mA
Technical Specifications
-
Product Reference: R9R51463
-
Series: Resi9
-
Device Type: Residual Current Circuit Breaker (RCCB)
-
Number of Poles: 4P (Three-phase + Neutral)
-
Rated Current (In): 63 A
-
Rated Residual Operating Current (IΔn): 30 mA
-
Sensitivity Type: Type AC (sinusoidal AC residual current detection)
-
Rated Operational Voltage: 400 V AC
-
Rated Frequency: 50/60 Hz
-
Tripping Time: ≤ 300 ms
-
Mounting Type: DIN rail mounting
-
Terminal Capacity: Up to 25 mm² (rigid cable)
-
Degree of Protection: IP20 (front face)
-
Conformity Standards: IEC/EN 61008-1
Key Features
-
Full 4-Pole Protection: Ideal for three-phase systems, disconnecting all live conductors including neutral during a fault.
-
30mA Sensitivity: Provides essential personal protection against electric shock and is compliant with residential safety norms.
-
High Current Rating: Suitable for circuits with higher power demands such as electric heating systems, pumps, or sub-distribution panels.
-
Type AC Detection: Covers typical residential and commercial installations with standard AC loads.
-
Manual Test Button: Enables functional testing to ensure the device continues to perform effectively.
-
Compact, Modular Format: Fits easily into standard distribution boards alongside other Resi9 devices.
-
Reliable and Safe Operation: Fast and precise disconnection in the event of earth leakage current.
Applications
The R9R51463 RCCB is perfectly suited for:
Residential Installations
-
Whole-house protection in three-phase systems
-
Circuits with large appliances such as HVAC units, electric ovens, and water heaters
Commercial and Light Industrial Use
-
Shops, clinics, restaurants, and small workshops with three-phase supplies
-
Sub-distribution boards and group circuit protection
Upgrade and Retrofit Projects
-
Modernizing older systems to meet updated safety standards
-
Adding RCCB protection to existing installations without complete panel replacement
| Range | Resi9 |
|---|---|
| Product or component type | Residual current circuit breaker (RCCB) |
| Poles description | 4P |
| [In] rated current | 63 A |
| Network type | AC |
| Earth-leakage sensitivity | 30 mA |
| earth-leakage protection time delay | Instantaneous |
| Earth-leakage protection class | Type AC |
| Rated breaking and making capacity | Im 630 A conforming to EN/IEC 61008 |
| Rated conditional short-circuit current | Inc 6 kA |
| Quality labels | EAC UA TR |
| Network frequency | 50/60 Hz |
|---|---|
| [Ue] rated operational voltage | 400 V AC 50/60 Hz |
| Residual current tripping technology | Voltage independent |
| [Ui] rated insulation voltage | 440 V |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Surge current | 250 A |
| control type | Toggle |
| local signalling | ON/OFF indication |
| Mounting mode | Clip-on |
| mounting support | DIN rail |
| 9 mm pitches | 8 |
| height | 81 mm |
| Width | 72 mm |
| Depth | 73 mm |
| Net weight | 370 g |
| Embedding depth | 44 mm |
| Colour | White |
| Mechanical durability | 20000 cycles |
| Electrical durability | 10000 cycles |
| Connections - terminals | Tunnel type terminals (top or bottom) - 1...35 mm² - rigid Tunnel type terminals (top or bottom) - 1...25 mm² - flexible Tunnel type terminals (top or bottom) - 1...25 mm² - flexible with ferrule |
| Wire stripping length | 15 mm for top or bottom connection |
| Tightening torque | 3.5 N.m top or bottom |
| Standards | EN/IEC 61008-1 EN/IEC 61008-2-1 |
|---|---|
| IP degree of protection | IP20 |
| Pollution degree | 2 |
| Overvoltage category | III |
| Tropicalisation | 2 conforming to IEC 60068-1 |
| Relative humidity | 95 % at 55 °C |
| Ambient air temperature for operation | -5…40 °C |
| Ambient air temperature for storage | -40…80 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.500 cm |
| Package 1 Width | 8.500 cm |
| Package 1 Length | 9.000 cm |
| Package 1 Weight | 394.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 27 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 11.046 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 216 |
| Package 3 Height | 45.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 100.368 kg |
Data Sheet : Download
