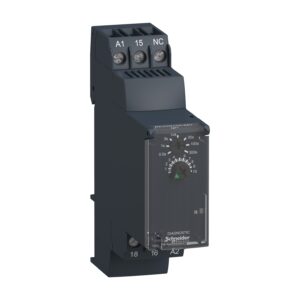

Schneider RM22TG20 Relay: Enhancing Control and Efficiency
Relays are indispensable components in various electrical systems, offering control and automation capabilities. Among the plethora of relays available in the market, it stands out for its exceptional performance and reliability. In this article, we delve into the features, benefits, installation process, applications, maintenance, and troubleshooting of the Schneider RM22TG20 Relay.
it is a versatile device designed to facilitate efficient control in a wide range of applications. Whether in industrial settings, commercial facilities, or residential environments, this relay ensures seamless operation and enhanced safety.
Understanding Relays
What is a relay?
A relay is an electromechanical switch that controls the flow of electricity by opening or closing circuits. It consists of a coil, an armature, and contacts, which enable the transfer of electrical signals from one circuit to another.
Types of relays
Relays come in various types, including electromagnetic relays, solid-state relays, thermal relays, and reed relays. Each type serves specific purposes based on its design and functionality.
Features of Schneider RM22TG20 Relay
Compact design
it boasts a compact and space-saving design, making it ideal for installations where space is limited. Its ergonomic build allows for easy integration into different electrical systems.
Wide range of applications
From industrial automation to building management systems,it offers versatility and compatibility with diverse applications. It can handle both AC and DC loads, making it suitable for various voltage requirements.
Easy installation
With its user-friendly design and intuitive interface, the Schneider RM22TG20 Relay simplifies the installation process. Whether installed on DIN rails or mounted directly on panels, this relay ensures quick and hassle-free setup.
Benefits of Using Schneider RM22TG20 Relay
Improved efficiency
By providing precise control and automation capabilities, it enhances overall system efficiency. It optimizes energy usage, reduces downtime, and improves productivity in industrial and commercial settings.
Enhanced safety
Reliability is paramount in electrical systems, and the Schneider RM22TG20 Relay ensures safe and reliable operation under all conditions. Its robust construction and advanced features minimize the risk of malfunctions and electrical failures.
Cost-effectiveness
Investing in the Schneider RM22TG20 Relay offers long-term cost savings through improved efficiency and reduced maintenance requirements. Its durable components and reliable performance contribute to a lower total cost of ownership over time.
How to Install Schneider RM22TG20 Relay
Installing the Schneider RM22TG20 Relay is a straightforward process that can be completed in a few simple steps. Follow these guidelines to ensure proper installation and optimal performance:
Mounting: Secure the relay on a stable surface using suitable mounting hardware.
Wiring: Connect the relay to the power source and load according to the provided wiring diagram.
Configuration: Adjust the settings and parameters as per the specific requirements of your application.
Testing: Conduct thorough testing to verify the functionality and performance of the relay before putting it into service.
Applications of Schneider RM22TG20 Relay
The Schneider RM22TG20 Relay finds extensive use in various industries and sectors, including:
Industrial automation: Control of motors, pumps, conveyors, and other equipment.
HVAC systems: Regulation of heating, ventilation, and air conditioning systems for optimal comfort and energy efficiency.
Renewable energy systems: Monitoring and control of solar panels, wind turbines, and battery storage systems.
Maintenance Tips for Schneider RM22TG20 Relay
To ensure continued reliability and performance, follow these maintenance tips for the Schneider RM22TG20 Relay:
Regular inspection: Periodically check the relay for signs of wear, damage, or corrosion.
Cleaning procedures: Keep the relay and its surrounding area clean and free from dust, debris, and moisture.
Testing: Conduct routine tests to verify the functionality and responsiveness of the relay under load conditions.
Troubleshooting Common Issues
Despite its robust design, the Schneider RM22TG20 Relay may encounter occasional issues. Here are some common problems and their solutions:
Relay not switching: Check for loose connections or faulty wiring and reseat or replace as necessary.
Overheating: Ensure proper ventilation and airflow around the relay, and consider installing additional cooling measures if needed.
Conclusion
The Schneider RM22TG20 Relay offers unmatched versatility, reliability, and performance in controlling electrical systems across various applications. Its compact design, easy installation, and advanced features make it a preferred choice for engineers, technicians, and facility managers worldwide.
Phase sequence Phase failure detection (2 or more phase cut)
Time delay type
Without
Switching capacity in VA
2000 VA
Measurement range
208…480 V voltage AC
Contacts type and composition
2 C/O
Complementary
Reset time
1500 ms at maximum voltage
Maximum switching voltage
250 V AC
Minimum switching current
10 mA at 5 V DC
Maximum switching current
8 A AC
[Us] rated supply voltage
AC/DC
Supply voltage limits
183…528 V AC
operating limits
183…528 V AC
Power consumption in VA
15 VA at 480 V AC 60 Hz
Voltage detection threshold
< 100 V AC
supply voltage frequency
50…60 Hz +/- 10 %
Output contacts
2 C/O
Run-up delay at power-up
650 ms
Response time
<= 200 ms
Overvoltage category
III conforming to IEC 60664-1 III conforming to UL 508
Insulation resistance
> 100 MOhm at 500 V DC conforming to IEC 60255-27
Mounting position
Any position
Connections – terminals
Screw terminals, 2 x 0.5…2 x 2.5 mm² (AWG 20…AWG 14) solid without cable end Screw terminals, 2 x 0.2…2 x 1.5 mm² (AWG 24…AWG 16) flexible with cable end Screw terminals, 1 x 0.5…1 x 3.3 mm² (AWG 20…AWG 12) solid without cable end Screw terminals, 1 x 0.2…1 x 2.5 mm² (AWG 24…AWG 14) flexible with cable end
Tightening torque
0.6…1 N.m conforming to IEC 60947-1
Housing material
Self-extinguishing plastic
Status LED
LED (yellow) relay ON LED (green) power ON
Mounting support
35 mm DIN rail conforming to IEC 60715
Electrical durability
100000 cycles
Mechanical durability
10000000 cycles
Utilisation category
AC-15 conforming to IEC 60947-5-1 DC-13 conforming to IEC 60947-5-1 AC-1 conforming to IEC 60947-4-1 DC-1 conforming to IEC 60947-4-1
[Un] rated nominal voltage
, self-powered
Safety reliability data
MTTFd = 924.6 years B10d = 850000
Contacts material
Cadmium free
Control type
With test button
Width
22.5 mm
Net weight
0.09 kg
Environment
Immunity to microbreaks
10 ms
Electromagnetic compatibility
Immunity for residential, commercial and light-industrial environments conforming to IEC 61000-6-1 Immunity for industrial environments conforming to IEC 61000-6-2 Emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3 Emission standard for industrial environments conforming to IEC 61000-6-4 Electrostatic discharge – test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2 Electrostatic discharge – test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test – test level: 10 V/m level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test – test level: 4 kV level 4 (direct) conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test – test level: 2 kV level 4 (capacitive coupling) conforming to IEC 61000-4-4 Surge immunity test – test level: 4 kV level 4 (common mode) conforming to IEC 61000-4-5 Surge immunity test – test level: 2 kV level 4 (differential mode) conforming to IEC 61000-4-5 Conducted and radiated emissions class B group 1 conforming to CISPR 11 Conducted and radiated emissions class B conforming to CISPR 22
Standards
IEC 60255-1
Product certifications
CE EAC RCM GL CSA UL CCC
Ambient air temperature for storage
-40…70 °C
Ambient air temperature for operation
-20…50 °C at 60 Hz -20…60 °C at 50 Hz AC/DC
Relative humidity
93…97 % at 25…55 °C conforming to IEC 60068-2-30
Vibration resistance
0.075 mm (f= 10…58.1 Hz) not in operation conforming to IEC 60068-2-6 1 gn (f= 10…58.1 Hz) not in operation conforming to IEC 60068-2-6 0.035 mm (f= 58.1…150 Hz) in operation conforming to IEC 60068-2-6 0.5 gn (f= 58.1…150 Hz) in operation conforming to IEC 60068-2-6
Shock resistance
15 gn (duration = 11 ms) for not in operation conforming to IEC 60068-2-27 5 gn (duration = 11 ms) for in operation conforming to IEC 60068-2-27
IP degree of protection
IP20 (terminals) conforming to IEC 60529 IP40 (housing) conforming to IEC 60529 IP50 (front panel) conforming to IEC 60529
Pollution degree
3 conforming to IEC 60664-1 3 conforming to UL 508
