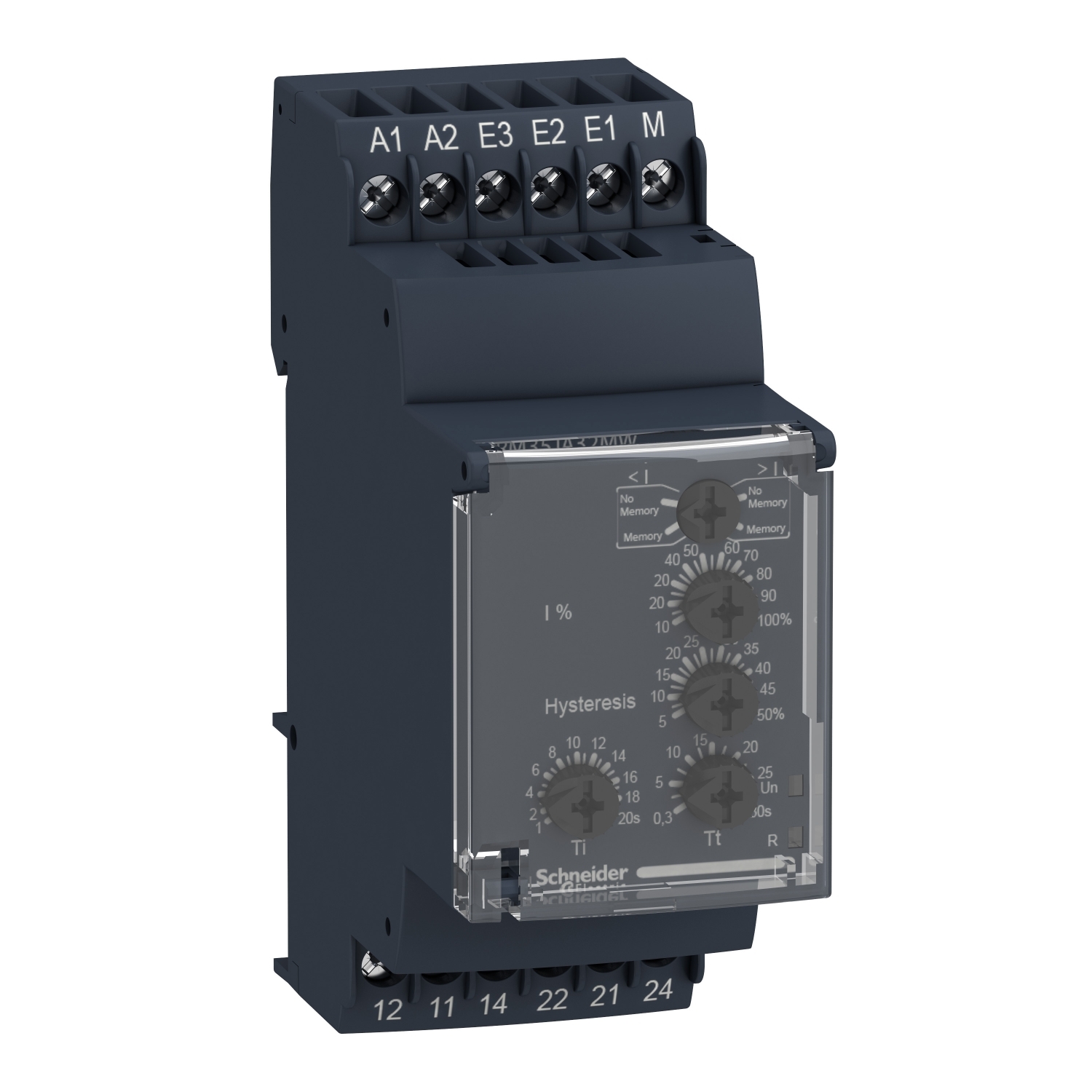

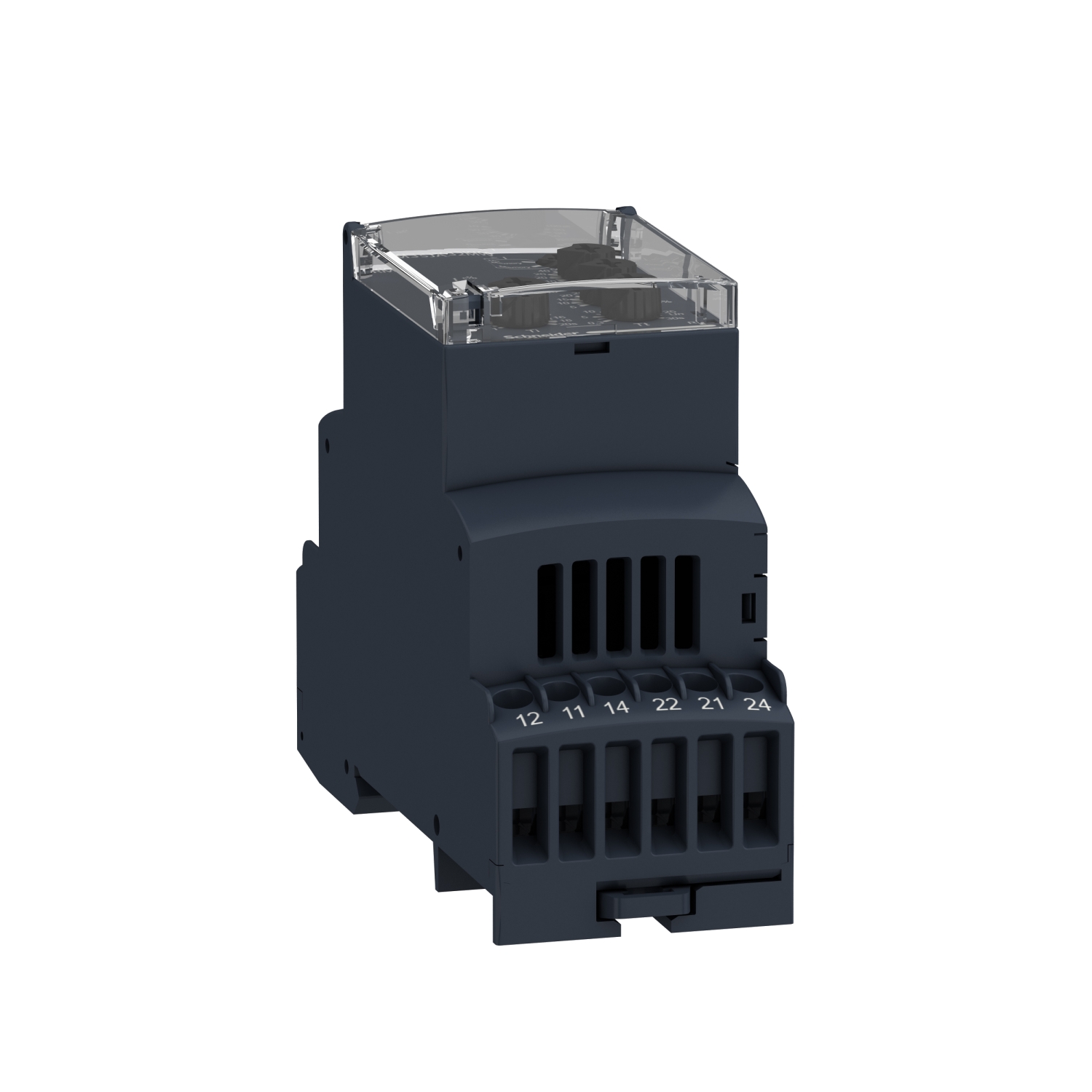

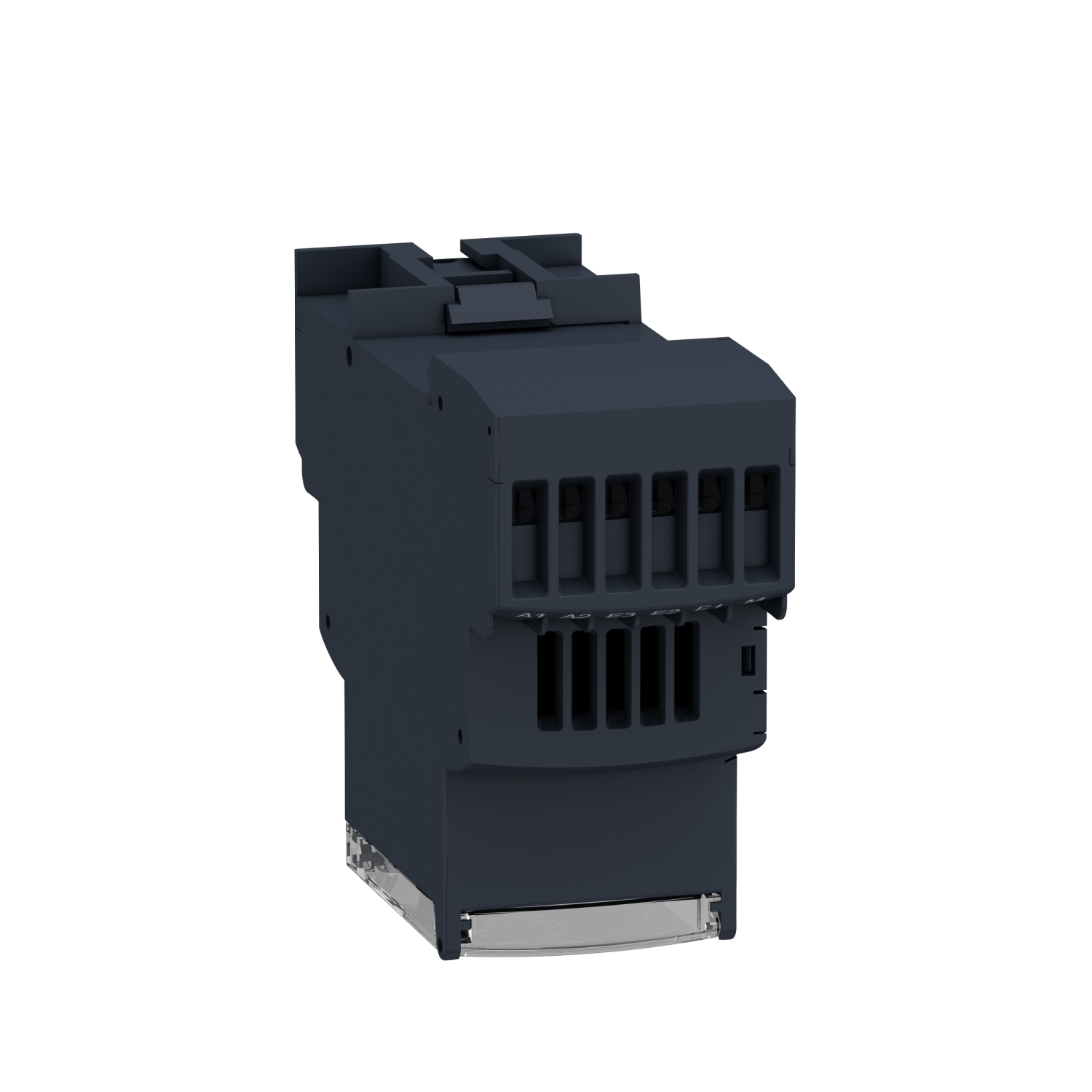

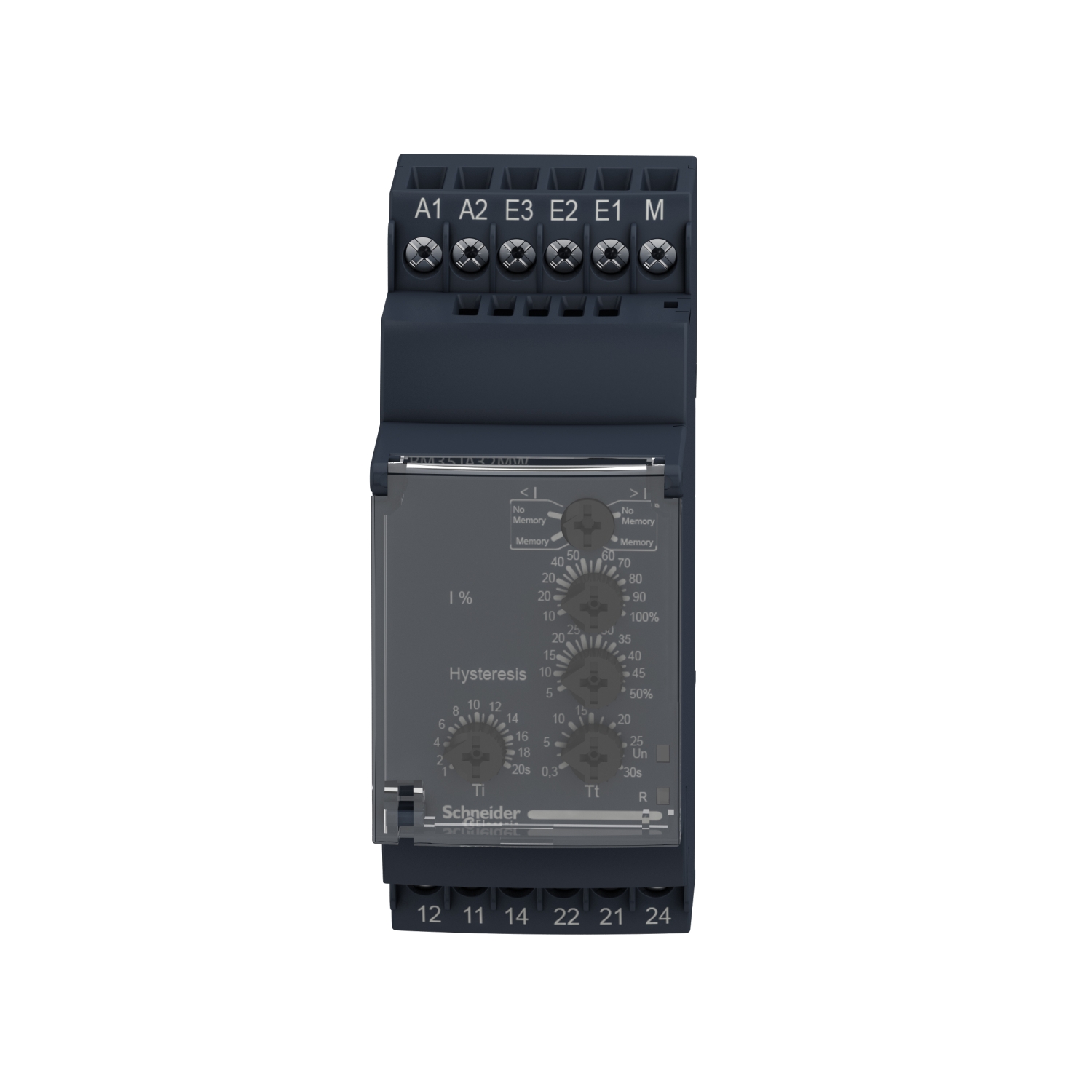

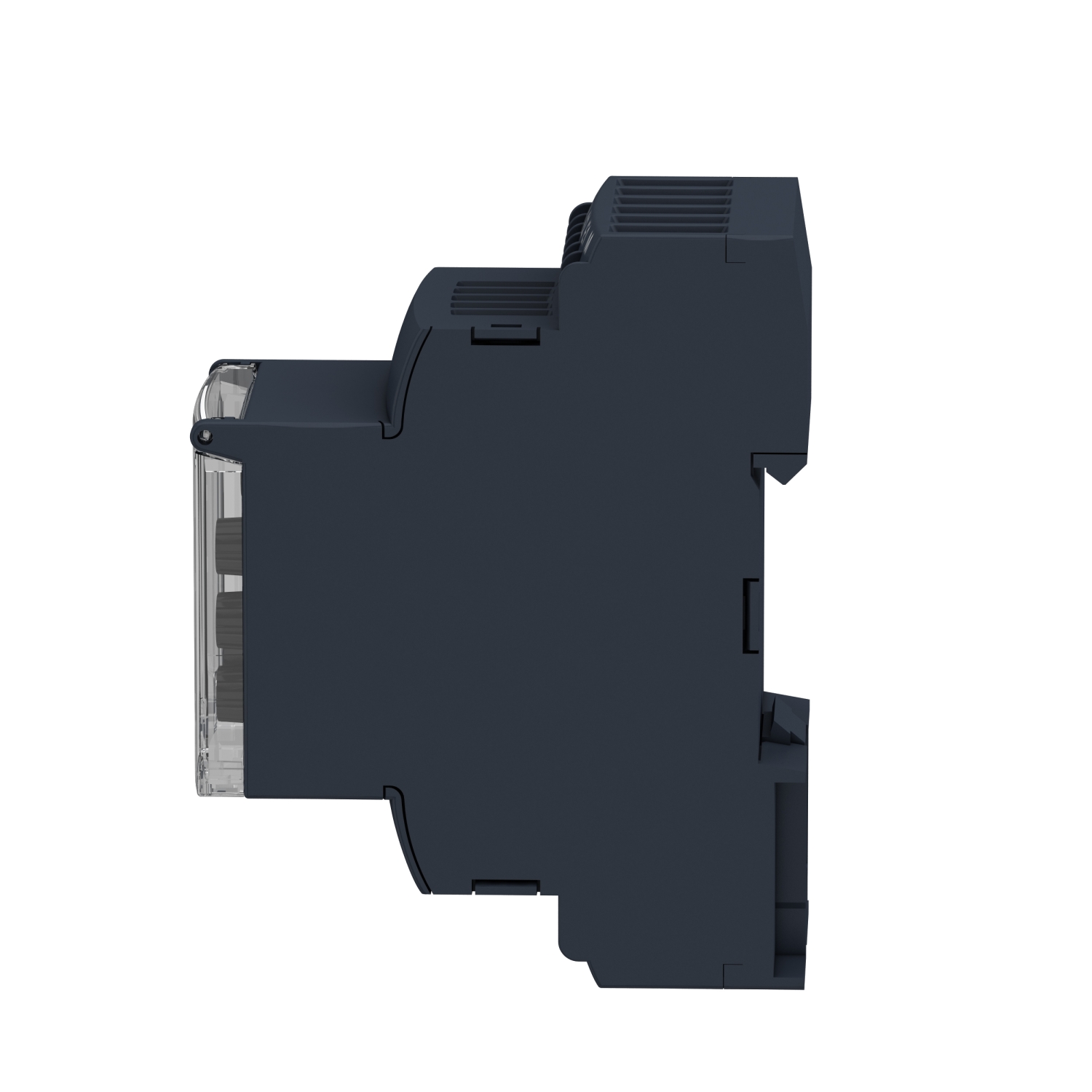

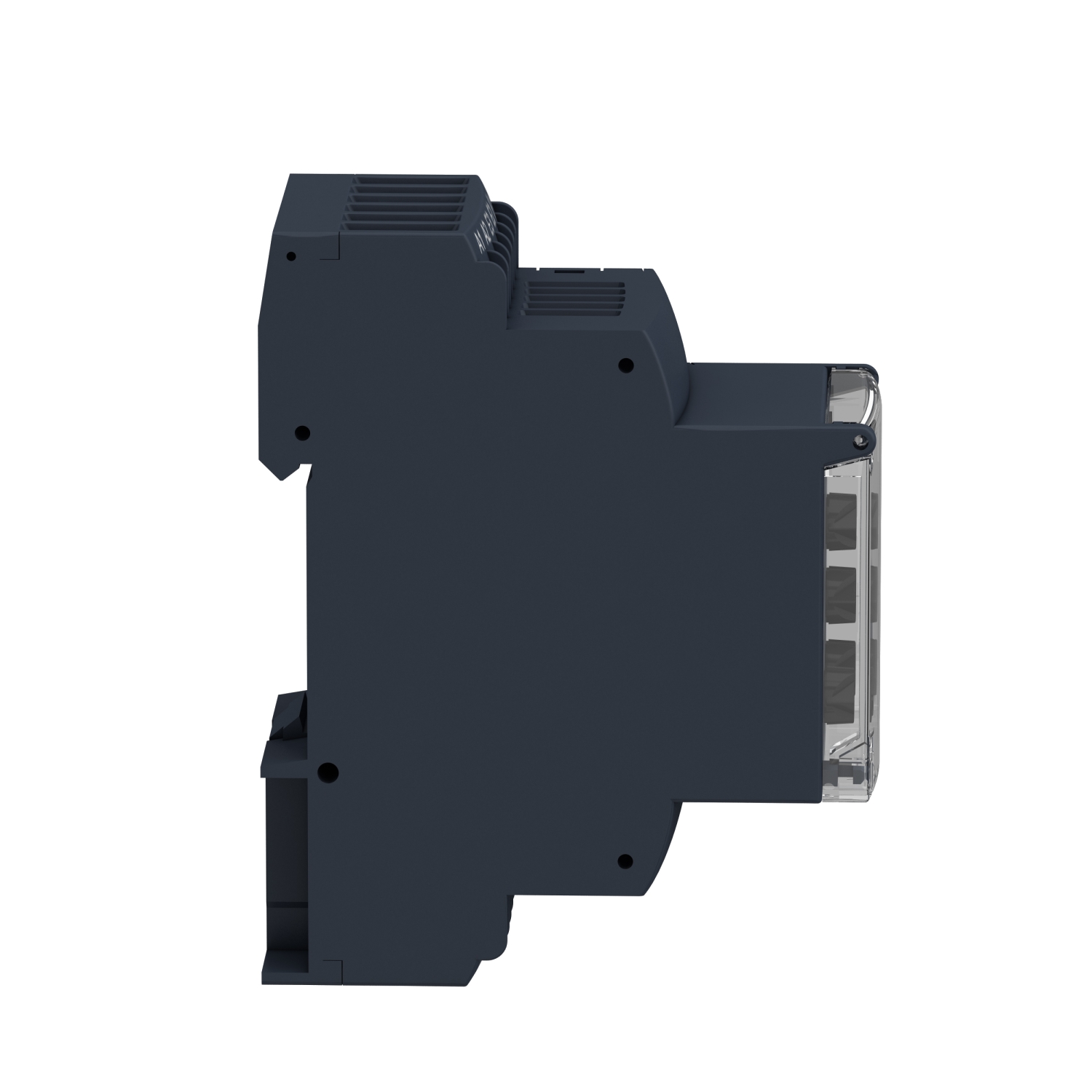

Schneider RM35JA32MW Relay

5,185.79 EGP 8,941.02 EGP

Out of stock

Compare

Schneider RM35JA32MW Relay: Enhancing Electrical System Efficiency

Product Overview Schneider RM35JA32MW Relay

The Schneider RM35JA32MW is a current control relay from the RM35-J series, designed to monitor and manage current levels in electrical systems. It ensures protection and automation by detecting abnormal current conditions, making it ideal for use in industrial and commercial applications.

Key Features

  • Product Type: Current control relay

  • Model: RM35JA32MW

  • Series: RM35-J

  • Monitoring Range: 0.15 to 1.5 A AC

  • Control Circuit Voltage: 24 to 240 V AC/DC

  • Output: 2 changeover contacts (2 C/O – SPDT)

  • Mounting: DIN rail

  • Response Time: Adjustable delay on trip/reset

  • Hysteresis: Adjustable

  • LED Indicators: For relay status and supply voltage

  • IP Rating: IP20 (terminals), IP30 (housing)

Functions

  • Overcurrent Monitoring
    Trips when current exceeds the preset upper threshold.

  • Undercurrent Monitoring
    Trips when current falls below the preset lower threshold.

  • Window Mode
    Trips when current goes outside a specified current band.

  • Adjustable Hysteresis
    Prevents frequent switching by creating a buffer range.

Applications

  • Industrial machinery current monitoring

  • Motor protection and overload detection

  • Electrical panels and distribution systems

  • HVAC systems

  • Pumps, compressors, and conveyor belts

Benefits

  • Improves system reliability and protection

  • Prevents equipment damage from overcurrent or undercurrent

  • Easy setup with adjustable dials

  • Compact design suitable for control panels

  • Universal compatibility with wide control voltage range

SKU: RM35JA32MW Categories: , Tag: Brand:
Main
Range of product Harmony Control Relays
Relay type Current control relay
Product or component type Current control relay
Relay name RM35JA
Relay monitored parameters Overcurrent or undercurrent detection
time delay Adjustable 0.3…30 s, 0 + 10 % Tt- time delay upon fault
Adjustable 1…20 s, 0 + 10 % Ti- inhibition time delay upon startup
Switching capacity in VA 1250 VA
Minimum switching current 10 mA at 5 V DC
Maximum switching current 5 A AC/DC
Maximum power consumption in VA 3.5 VA AC
Measurement range 150 mA…15 A current AC/DC
Utilisation category AC-12 conforming to IEC 60947-5-1
AC-13 conforming to IEC 60947-5-1
AC-14 conforming to IEC 60947-5-1
AC-15 conforming to IEC 60947-5-1
DC-12 conforming to IEC 60947-5-1
DC-13 conforming to IEC 60947-5-1
DC-14 conforming to IEC 60947-5-1
Contacts type and composition 2 C/O
Complementary
Reset time 1500 ms time delay
Maximum switching voltage 250 V AC/DC
Supply voltage limits 20.4…264 V AC/DC
operating voltage tolerance – 15 % + 10 % Un
Maximum power consumption in W 0.6 W DC
Control circuit frequency 40…70 Hz +/- 10 %
Resistance across terminals 0.005 Ohm at E3-M terminals
0.015 Ohm at E2-M terminals
0.05 Ohm at E1-M terminals
Output contacts 2 C/O
Nominal output current 5 A
Maximum measuring cycle 30 ms measurement cycle as true rms value
Hysteresis 5…50 % of threshold setting
delay at power up 0.3 s
Measurement accuracy +/- 10 % of the full scale value
Repeat accuracy +/- 0.5 % for input and measurement circuit
+/- 2 % for time delay
Measurement error 0.05 %/°C with temperature variation
1 by volt over the whole range with voltage variation
Polarity No DC
Threshold setting 10…100 %
Marking CE : EMC 89/336/EEC
CE : 73/23/EEC
Overvoltage category III conforming to IEC 60664-1
Insulation resistance > 500 MOhm at 500 V DC between supply and relay output conforming to IEC 60255-5
> 500 MOhm at 500 V DC between measurement and relay output conforming to IEC 60664-1
> 1 MOhm at 500 V DC between supply and measurement conforming to IEC 60255-5
> 500 MOhm at 500 V DC between supply and relay output conforming to IEC 60664-1
> 500 MOhm at 500 V DC between measurement and relay output conforming to IEC 60255-5
> 1 MOhm at 500 V DC between supply and measurement conforming to IEC 60664-1
[Ui] rated insulation voltage 250 V conforming to IEC 60664-1
Operating position Any position without derating
Connections – terminals Screw terminals, 1 x 0.5…1 x 4 mm² (AWG 20…AWG 11) solid without cable end
Screw terminals, 2 x 0.5…2 x 2.5 mm² (AWG 20…AWG 14) solid without cable end
Screw terminals, 1 x 0.2…1 x 2.5 mm² (AWG 24…AWG 12) flexible with cable end
Screw terminals, 2 x 0.2…2 x 1.5 mm² (AWG 24…AWG 16) flexible with cable end
Tightening torque 0.6…1 N.m conforming to IEC 60947-1
Housing material Self-extinguishing plastic
Local signalling LED (green) for power ON
LED (yellow) for relay ON
Mounting support 35 mm symmetrical DIN rail conforming to IEC 60715
Electrical durability 100000 cycles
Mechanical durability 30000000 cycles
Operating rate <= 360 operations/hour full load
[Un] rated nominal voltage 24…240 V AC/DC 50/60 Hz, non self-powered
Safety reliability data MTTFd = 296.8 years
B10d = 270000
Contacts material Cadmium free
Width 35 mm
Control type Without test button
Net weight 0.13 kg
Environment
Immunity to microbreaks 50 ms
Electromagnetic compatibility Emission standard for industrial environments conforming to IEC 61000-6-4
Emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3
Immunity for industrial environments conforming to NF EN/IEC 61000-6-2
Standards IEC 60255-6
Product certifications GL
UL
GOST
C-Tick
CSA
Ambient air temperature for storage -40…70 °C
Ambient air temperature for operation -20…50 °C
Relative humidity 95 % at 55 °C conforming to IEC 60068-2-30
Vibration resistance 0.35 mm (f= 5…57.6 Hz) conforming to IEC 60068-2-6
1 gn (f= 57.6…150 Hz) conforming to IEC 60255-21-1
Shock resistance 15 gn for 11 ms conforming to IEC 60255-21-1
IP degree of protection IP20 (terminals) conforming to IEC 60529
IP30 (casing) conforming to IEC 60529
Pollution degree 3 conforming to IEC 60664-1
Dielectric test voltage 2 kV, 1 min AC 50 Hz conforming to IEC 60255-5
2 kV, 1 min AC 50 Hz conforming to IEC 60664-1
Non-dissipating shock wave 4 kV conforming to IEC 60255-5
4 kV conforming to IEC 60664-1
4 kV conforming to IEC 61000-4-5
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 4.500 cm
Package 1 Width 8.000 cm
Package 1 Length 9.500 cm
Package 1 Weight 136.000 g
Unit Type of Package 2 S03
Number of Units in Package 2 48
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 7.291 kg
Contractual warranty
Warranty 18 months

Main documents

Datasheet Download Datasheet
Product datasheet RM35JA32MW
Instruction sheet
 Download
Catalog Download
Environmental disclosure
 Download
CAD Files Download

Based on 0 reviews

0.0 overall
0
0
