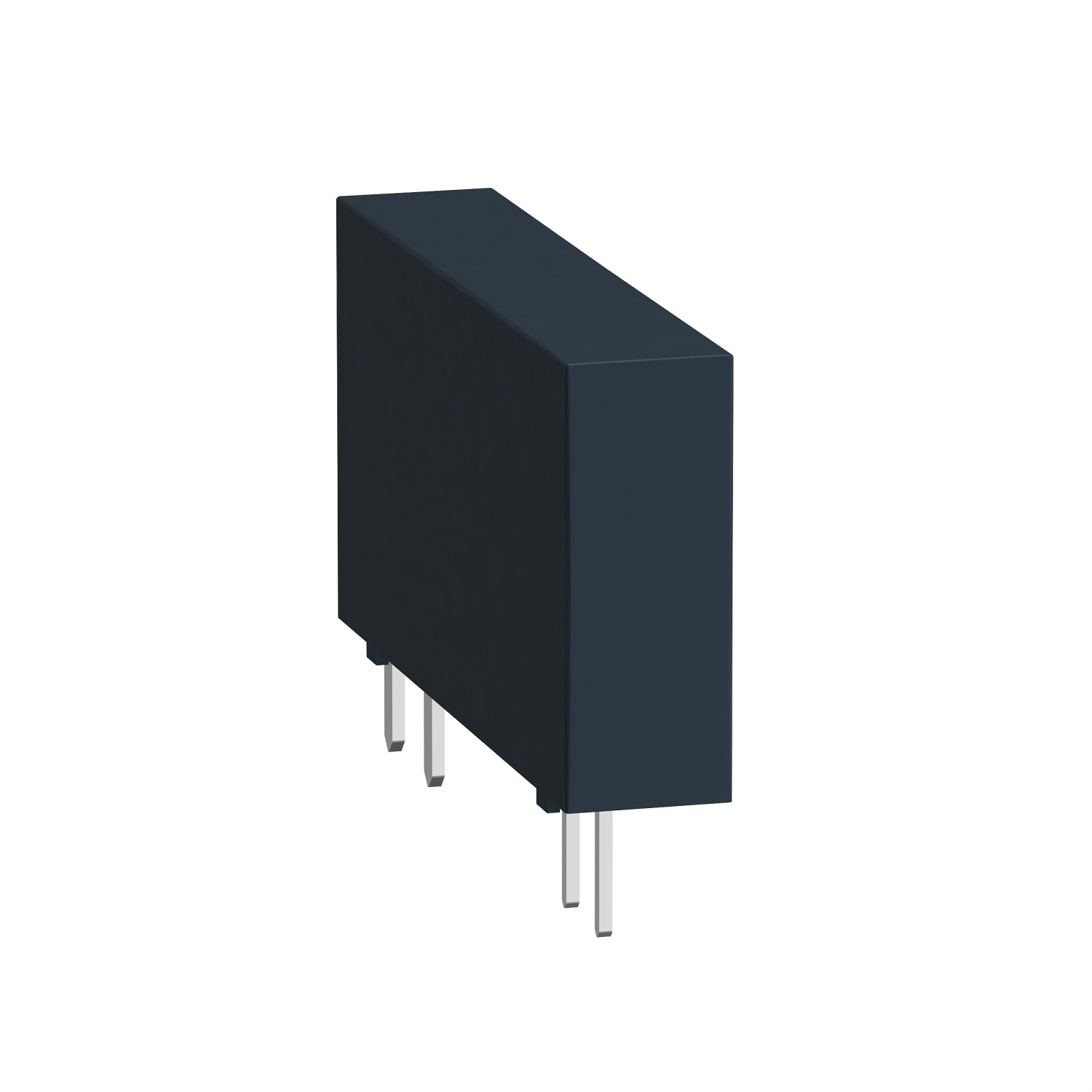

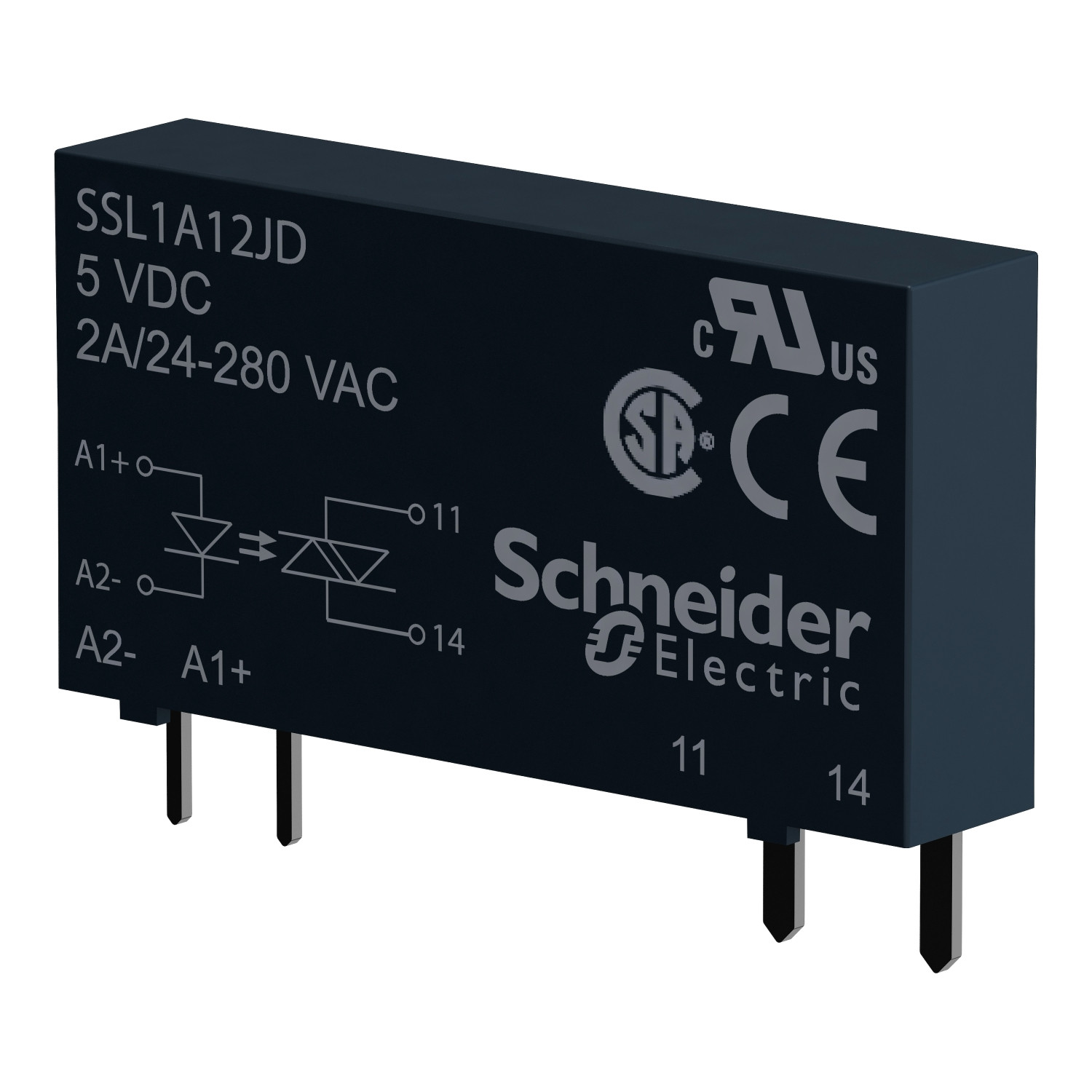

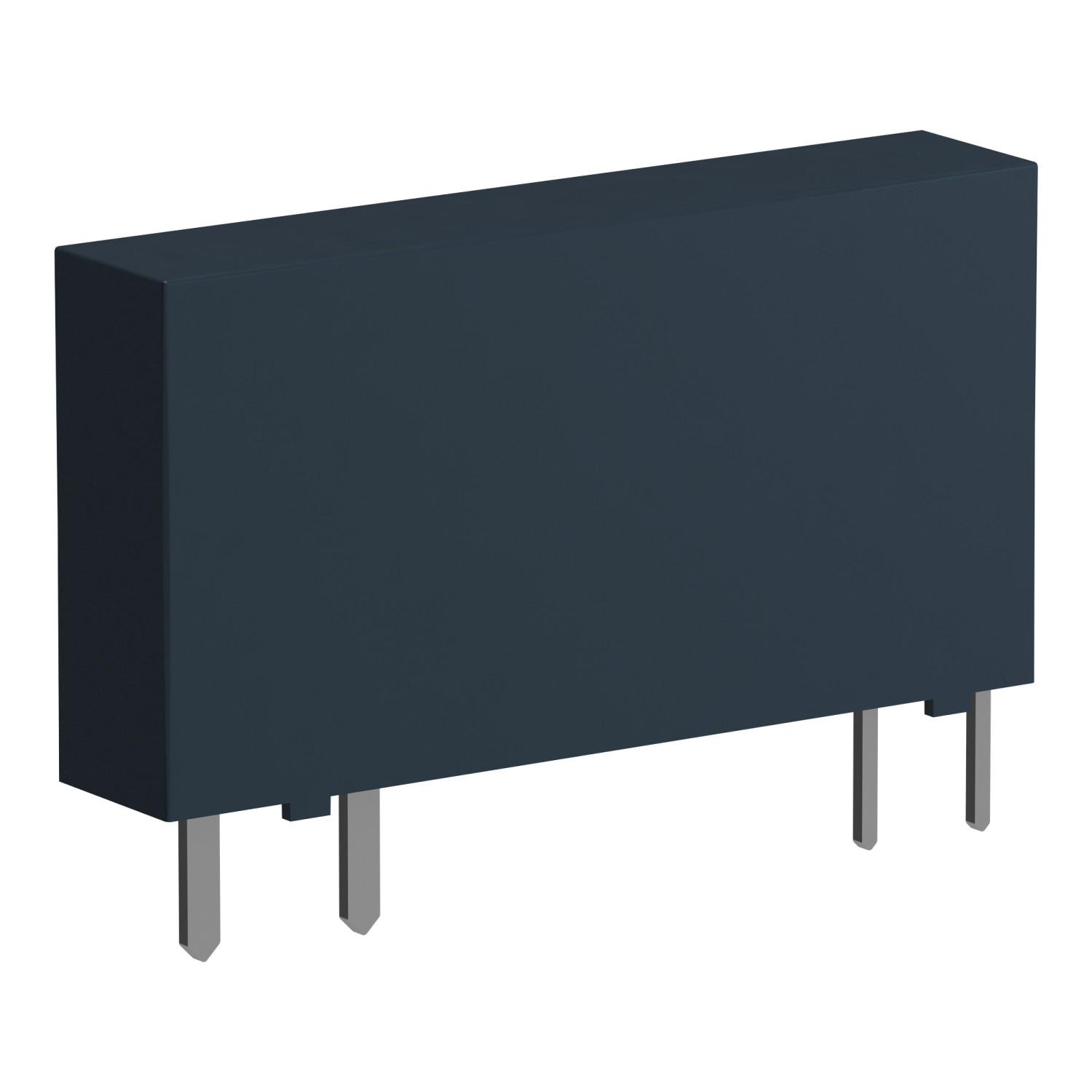

Schneider SSL1A12JD | Solid state relay, 2 A, zero voltage switching, input 3…12 V DC, output 24…280 V AC
Original price was: 1,412.73 EGP.777.00 EGPCurrent price is: 777.00 EGP.
Introducing SSL1A12JD and Schneider Electric
The Schneider SSL1A12JD is a reliable solid state relay designed to meet the diverse needs of industrial automation. This innovative product enhances control processes by providing zero voltage switching capabilities, ensuring smooth operation and increased efficiency in your applications.
Enhancing Automation Efficiency
One of the standout benefits of the SSL1A12JD is its ability to handle an output range of 24 to 280 V AC. This versatility allows it to integrate seamlessly into various setups, making it a top choice for industries that require consistent performance across a range of voltages. No more worrying about compatibility issues; with this relay, you can streamline your automation processes.
Zero Voltage Switching for Safety and Reliability
Safety is paramount in any industrial setting, and the SSL1A12JD addresses this need effectively. Its zero voltage switching feature not only minimizes electrical noise but also protects sensitive components from damaging inrush currents. This means fewer maintenance headaches and longer-lasting equipment, ultimately saving you time and money.
Easy Integration and Simple Operation
With an input range of 3 to 12 V DC, this solid state relay is designed for easy integration into your existing systems. Whether you’re upgrading older equipment or building new systems from scratch, the SSL1A12JD simplifies the installation process, allowing your team to focus on what they do best—enhancing your production line.
Robust Design for Industrial Applications
Crafted with durability in mind, the Schneider Electric SSL1A12JD is built to withstand the rigors of industrial environments. Its robust design ensures reliable performance even in challenging conditions, giving you peace of mind that your automation needs are in capable hands. Choose a relay that not only performs but also stands the test of time.
Conclusion: The Smart Choice for Automation
In conclusion, the Schneider SSL1A12JD solid state relay is an exceptional choice for businesses seeking to improve their automation systems. With its safety features, versatile voltage capabilities, and ease of integration, it represents a smart investment for enhancing operational efficiency. Upgrade your control systems today and experience the difference!
| Range of product | Harmony Solid State Relays |
|---|---|
| Product or component type | Plug-in relay |
| Device short name | SSL |
| Network number of phases | 1 phase |
| Output switching mode | Zero voltage switching |
| Mounting support | Socket |
|---|---|
| [In] rated current | 2 A |
| Output voltage | 24...280 V AC |
| [Uc] control circuit voltage | 3...12 V DC |
| Capacitance unbalance | 1.5 pF input/output |
| Minimum switching voltage | 3 V DC turn-on |
| Maximum switching voltage | 1 V DC turn-off |
| Input current limits | 15 mA |
| Input impedance | 333 kOhm |
| Solid state output type | Random voltage switching SCR output |
| Load current | 0.07…2 A |
| tansient Overvoltage | 600 V AC |
| Surge current | 120 A for 16.6 ms 115 A for 20 ms |
| Maximum voltage drop | <1.1 V on-state |
| Maximum I²t for fusing | 66 A².s for 10 ms at 50 Hz 60 A².s for 8.3 ms at 60 Hz |
| Maximum leakage current | 4 mA off-state |
| DV/dt | 500 V/µs off-state at maximum voltage |
| Response time | 0.5 cycle (turn-on) 0.5 cycle (turn-off) |
| overvoltage category | III |
| Width | 5 mm |
| Height | 28 mm |
| Depth | 15 mm |
| Product weight | 0.0041 kg |
| Flame retardance | V0 conforming to UL 94 |
|---|---|
| Dielectric strength | 2500 V for input/output |
| pollution degree | 2 |
| Product certifications | CSA UL |
| Marking | CE |
| Ambient air temperature for operation | -20…80 °C |
| Ambient air temperature for storage | -20…85 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 0.5 cm |
| Package 1 Width | 2 cm |
| Package 1 Length | 2.8 cm |
| Package 1 Weight | 4 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 0.7 cm |
| Package 2 Width | 2.5 cm |
| Package 2 Length | 37 cm |
| Package 2 Weight | 61 g |
| Unit Type of Package 3 | S01 |
| Number of Units in Package 3 | 1080 |
| Package 3 Height | 15 cm |
| Package 3 Width | 15 cm |
| Package 3 Length | 40 cm |
| Package 3 Weight | 5.74 kg |
