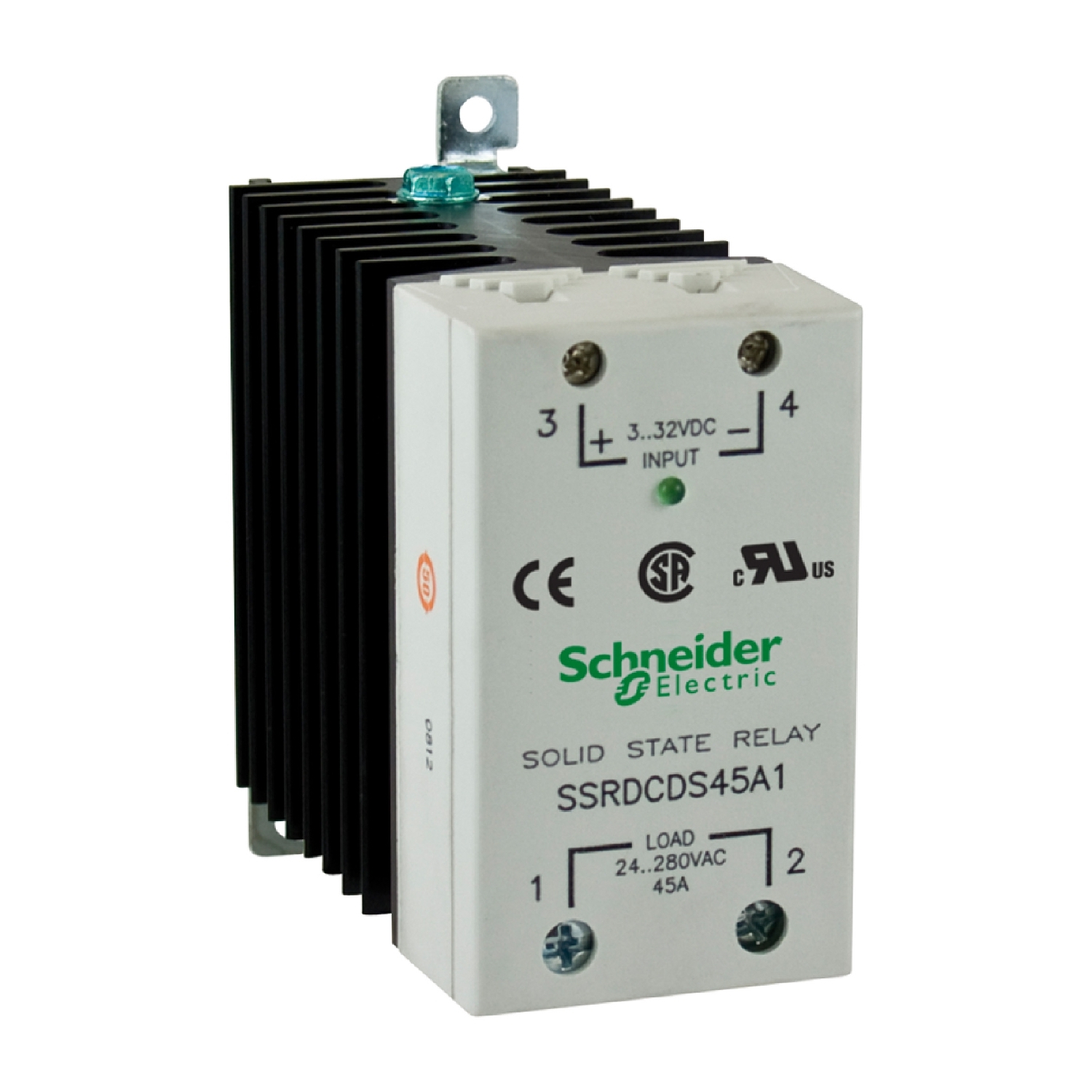

Schneider SSRDCDS45A1 | solid state relay – DIN rail mount – input 4-32 V DC, output 24-280 V AC, 45A

Schneider SSRDCDS45A1 | solid state relay – DIN rail mount – input 4-32 V DC, output 24-280 V AC, 45A

Technical Specifications:

1. Input Voltage Range: The SSRDCDS45A1 operates with an input voltage range of 4-32V DC, making it compatible with a wide variety of control devices, including PLC systems, microcontrollers, and other DC-powered control circuits.

2. Output Voltage Range: The SSRDCDS45A1 can control devices powered by AC voltages ranging from 24V to 280V, making it versatile and adaptable to various AC-powered applications across multiple voltage standards.

3. Current Rating: The relay can handle a maximum current of 45A, which is ideal for controlling heavy-duty equipment and machinery in industrial settings. This high current capability allows for reliable operation with larger loads such as heating elements, motors, and compressors.

4. DIN Rail Mounting: The SSRDCDS45A1 is designed for DIN rail mounting, allowing for easy installation in industrial control panels and enclosures. The DIN rail system provides a standardized mounting solution, making it easy to integrate and secure the relay in existing automation setups.

5. Zero-Crossing Detection: This solid-state relay uses zero-crossing detection technology to switch AC loads. This feature ensures efficient switching by turning the relay on or off at the point when the AC waveform crosses zero voltage. This reduces electrical noise, minimizes stress on the relay, and enhances overall reliability and efficiency.

6. Solid-State Design: The SSRDCDS45A1 is a solid-state relay, meaning it has no mechanical parts. This design eliminates issues related to mechanical wear and tear, providing longer operational life, faster switching speeds, and higher reliability compared to traditional electromechanical relays.

7. Thermal Management: Efficient thermal management ensures that the relay operates within safe temperature ranges even under high current conditions. This helps prevent overheating and extends the life of the relay.

8. Status Indicators: The relay includes LED status indicators that provide visual feedback on the operating condition of the relay. This feature makes it easier to monitor the status of the relay and troubleshoot any issues that may arise during operation.

Features:

1. Wide Input Voltage Range: With an input range of 4-32V DC, the SSRDCDS45A1 is compatible with various control systems, offering flexibility in integration with different automation and control devices.

2. High Output Power: Capable of controlling AC loads with 24-280V AC voltage and handling up to 45A of current, this relay is suitable for high-power industrial applications, such as motor control, heating systems, and large machinery.

3. DIN Rail Mounting: Designed for DIN rail mounting, the SSRDCDS45A1 can be easily installed in control panels or enclosures, ensuring a secure and compact fit. The DIN rail system simplifies the installation and maintenance process.

4. Zero-Crossing Technology: The inclusion of zero-crossing detection improves switching efficiency and reduces electrical noise, leading to smoother operation and a longer lifespan for both the relay and the connected devices.

5. Solid-State Operation: As a solid-state relay, the SSRDCDS45A1 features no moving parts, making it highly reliable and fast in operation. Its solid-state nature results in lower maintenance needs and greater durability compared to traditional electromechanical relays.

6. Thermal Management: The relay is designed with efficient thermal management to ensure it operates at optimal temperatures, preventing overheating during high-load conditions.

7. LED Status Indicators: LED indicators provide clear visual feedback on the status of the relay, making it easy to monitor its operation and quickly identify any potential issues.

8. Compact and Durable: Despite its high current handling capability, the SSRDCDS45A1 is designed to be compact and durable, making it suitable for use in space-constrained industrial environments.

Applications:

The Schneider SSRDCDS45A1 solid-state relay is suitable for a wide variety of applications, including:

• Heating Systems: Ideal for controlling electric heating elements in industrial heating applications such as furnaces, ovens, and temperature control systems.

• Motor Control: Perfect for controlling AC motors used in machinery, pumps, conveyors, and other industrial equipment.

• Lighting Control: Suitable for controlling high-power lighting systems, especially in industrial and commercial settings.

• Temperature Control: Can be used in temperature regulation systems for managing heating and cooling elements in industrial applications.

• Factory Automation: A reliable choice for automated systems requiring precise switching of AC-powered devices with high current demands.

• Energy Management: Can be integrated into energy management systems to control high-power equipment and monitor energy consumption.

• AC Load Switching: Suitable for controlling a variety of AC-powered devices, such as compressors, fans, and pumps, in industrial environments.
