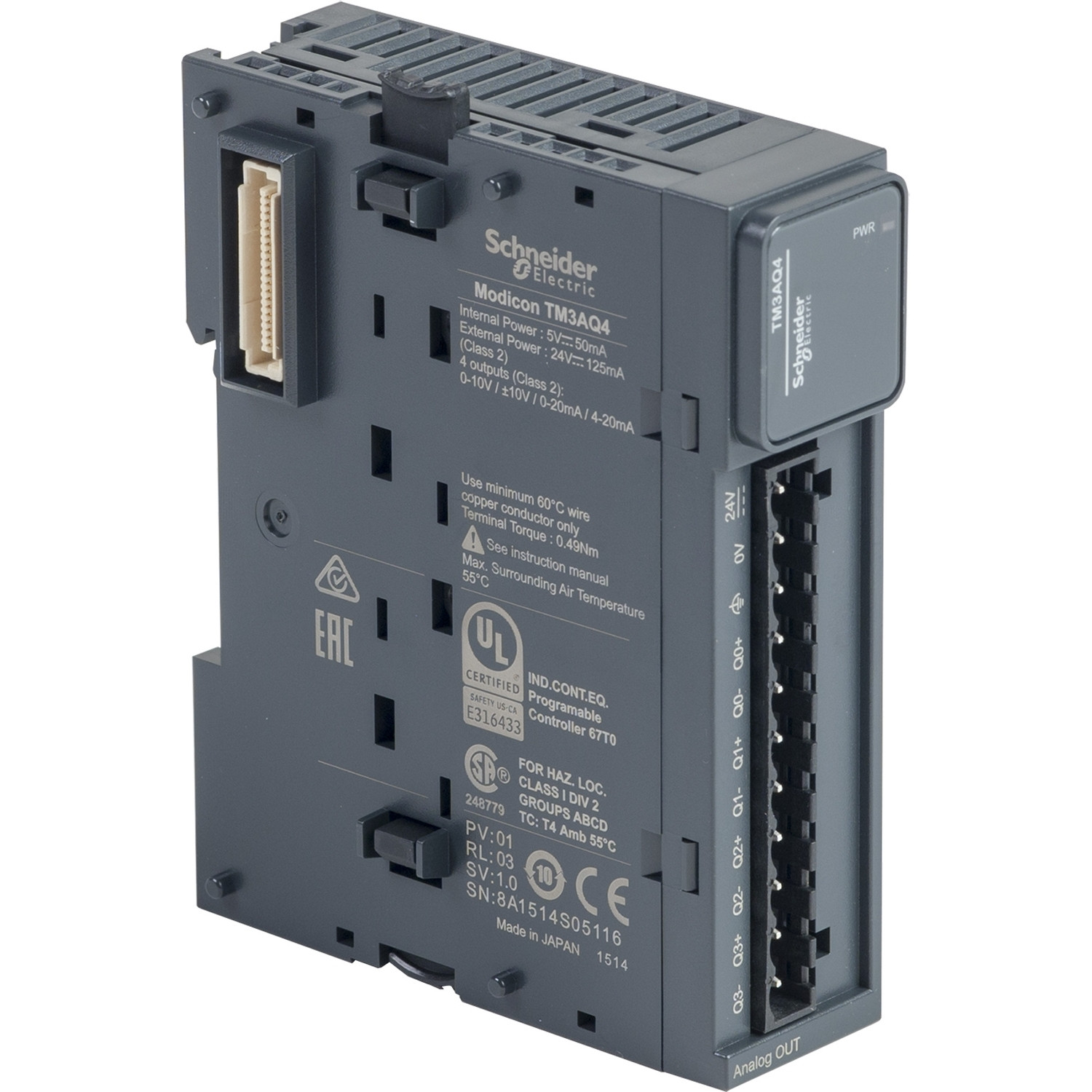

Schneider TM3AQ4 | Modicon TM3 – 4 analog outputs (screw) 24Vdc
Original price was: 32,162.59 EGP.18,654.30 EGPCurrent price is: 18,654.30 EGP.
Shipping calculated at checkout.
Introducing the TM3AQ4 from Schneider Electric
The TM3AQ4, a premium offering from Schneider Electric, is designed for those who demand reliability and efficiency in their automation systems. This versatile module provides four analog outputs, making it an ideal solution for various industrial applications, ensuring precise control and monitoring capabilities.
Enhancing Your Automation Experience
In today’s fast-paced industrial environment, having the right tools is crucial for success. The TM3AQ4 not only delivers exceptional performance but also simplifies the integration of analog sensors and devices into your Modicon TM3 system. This means you can focus on your core operations while enjoying enhanced control over your processes.
Streamlined Integration and Flexibility
One of the standout features of the TM3AQ4 is its ease of integration. This module seamlessly connects with existing systems, allowing you to benefit from its capabilities without extensive modifications. Whether you’re upgrading an old system or starting anew, this module provides the flexibility needed to adapt to various operational demands.
Boosting Efficiency and Productivity
By utilizing the TM3AQ4, you equip your facility with the tools necessary to improve efficiency and productivity. Its four analog outputs can handle a variety of signals, ensuring that you can monitor and control critical parameters in real-time. This leads to quicker decision-making, reduced downtime, and ultimately, increased profitability.
Reliable Performance You Can Trust
Schneider Electric is a recognized leader in the automation industry, and the TM3AQ4 reflects their commitment to quality and performance. Designed to withstand the rigors of industrial environments, this module ensures consistent operation and longevity, reducing the need for frequent replacements. You can rely on this product to maintain operational integrity and enhance your system’s reliability.
Conclusion: A Smart Investment
In summary, the TM3AQ4 from Schneider Electric is more than just a module; it’s a smart investment for your automation needs. With its ease of integration, reliability, and performance-enhancing features, it provides excellent value, helping you streamline operations and achieve your business goals.
| Range of product | Modicon TM3 |
|---|---|
| Product or component type | Analog output module |
| Range compatibility | Modicon M221 Modicon M241 Modicon M251 Modicon M262 |
| Analogue output number | 4 |
| Analogue output type | Current: 4...20 mA Current: 0...20 mA Voltage: 0...10 V Voltage: - 10...10 V |
| Analogue input resolution | 12 bits 11 bits + sign |
|---|---|
| Analogue output resolution | 11 bits + sign 12 bits |
| LSB value | 2.44 mV 0...10 Vvoltage 4.88 mV - 10...10 Vvoltage 4.88 µA 0...20 mAcurrent 3.91 µA 4...20 mAcurrent |
| Load type | Resistive |
| Load impedance ohmic | 1 kOhm voltage 300 Ohm current |
| Stabilisation time | 1 ms |
| Conversion time | 1 ms + 1 ms per channel + 1 controller cycle time |
| Absolute accuracy error | +/- 1 % of full scale +/- 0.2 % of full scale at 25 °C |
| Temperature drift | +/- 0.01 %FS/°C |
| Repeat accuracy | +/- 0.4 %FS |
| Non-linearity | +/- 0.2 %FS |
| Output ripple | 20 mV |
| Cross talk | <= 1 LSB |
| [Us] rated supply voltage | 24 V DC |
| Supply voltage limits | 20.4…28.8 V |
| Type of cable | Twisted shielded pairs cable <30 m for output circuit |
| Current consumption | 40 mA at 5 V DC via bus connector no load 50 mA at 5 V DC via bus connector full load 50 mA at 24 V DC via external supply no load 125 mA at 24 V DC via external supply full load |
| Local signalling | 1 LED (green) for PWR |
| Electrical connection | 11 x 2.5 mm² removable screw terminal block with pitch 5.08 mm adjustment for outputs and supply |
| Insulation | Between output and supply at 1500 V AC Between output and internal logic at 500 V AC |
| Marking | CE |
| Surge withstand | 1 kV power supply common mode conforming to IEC 61000-4-5 0.5 kV power supply differential mode conforming to IEC 61000-4-5 1 kV output common mode conforming to IEC 61000-4-5 |
| Mounting support | Top hat type TH35-15 rail conforming to IEC 60715 Top hat type TH35-7.5 rail conforming to IEC 60715 plate or panel with fixing kit |
| Height | 90 mm |
| Depth | 70 mm |
| Width | 23.6 mm |
| Net weight | 0.115 kg |
| Standards | IEC 61131-2 |
|---|---|
| Product certifications | CE UKCA RCM EAC cULus cULus HazLoc |
| Resistance to electrostatic discharge | 8 kV in air conforming to IEC 61000-4-2 4 kV on contact conforming to IEC 61000-4-2 |
| Resistance to electromagnetic fields | 10 V/m 80 MHz...1 GHz conforming to IEC 61000-4-3 3 V/m 1.4 GHz...2 GHz conforming to IEC 61000-4-3 1 V/m 2 GHz...3 GHz conforming to IEC 61000-4-3 |
| Resistance to magnetic fields | 30 A/m conforming to IEC 61000-4-8 |
| Resistance to fast transients | 1 kV (I/O) conforming to IEC 61000-4-4 |
| Resistance to conducted disturbances | 10 V 0.15...80 MHz conforming to IEC 61000-4-6 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL) |
| Electromagnetic emission | Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30…230 MHz conforming to IEC 55011 Radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230…1000 MHz conforming to IEC 55011 |
| Immunity to microbreaks | 10 ms |
| Ambient air temperature for operation | -10…55 °C horizontal installation -10…35 °C vertical installation |
| Ambient air temperature for storage | -25…70 °C |
| Relative humidity | 10…95 %, without condensation (in operation) 10…95 %, without condensation (in storage) |
| IP degree of protection | IP20 |
| Pollution degree | 2 |
| Operating altitude | 0...2000 m |
| Storage altitude | 0…3000 m |
| Vibration resistance | 3.5 mm at 5…8.4 Hz on DIN rail 3 gn at 8.4…150 Hz on DIN rail |
| Shock resistance | 15 gn for 11 ms |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.500 cm |
| Package 1 Width | 10.500 cm |
| Package 1 Length | 12.700 cm |
| Package 1 Weight | 220.000 g |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 42 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 9.030 kg |
