Schneider TR25D3R2504TPE | TransferPacT Remote, 250A, 400V, 3P, Remote, frame 250A
Schneider TR25D3R2504TPE | TransferPacT Remote, 250A, 400V, 3P, Remote, frame 250A
Technical Specifications
-
Series: TransferPacT Remote
-
Model: TR25D3R2504TPE
-
Rated Current: 250 Amps
-
Rated Voltage: 400V AC
-
Poles: 3 (Three-phase)
-
Operation Type: Remote-operated (electrical actuation)
-
Frame Size: 250A
-
Frequency: 50/60 Hz
-
Transfer Type: Open transition (break-before-make)
-
Mounting: Panel-mounted
-
Control Interface: Supports remote control and automation integration
-
Standard Compliance: IEC 60947-6-1
Key Features
-
Reliable Remote Switching
Enables full remote control of power transfer between utility and backup sources, improving operational efficiency and safety. -
Three-Phase Power Handling
Ideal for balanced three-phase loads in commercial, industrial, or infrastructure applications. -
High Switching Capacity
Supports heavy-duty operations with a current rating of 250A, making it suitable for critical systems. -
Remote Integration
Easily integrates into building management systems (BMS), SCADA, or other monitoring platforms. -
Compact Design
The 250A frame is space-efficient and suitable for panel integration in both new and retrofit applications. -
Built-in Safety Features
Includes mechanical interlocks and clear status indicators for safe and reliable operation.
Applications
-
Industrial Facilities: Maintains continuity for production lines during power source switching.
-
Data Centers: Ensures smooth transition between main and backup power, minimizing server downtime.
-
Hospitals & Critical Infrastructure: Guarantees power availability for life-critical systems.
-
Commercial Complexes: Keeps essential services running during power outages.
-
Remote Installations: Perfect for systems requiring remote access or automation-based power control.
| Range of product | TransferPacT |
|---|---|
| Product or component type | Remote transfer switch |
| Device application | Change source of supply |
| poles description | 3P |
| Network type | AC |
| Network frequency | 50/60 Hz |
| downside connection | Screwed |
| mounting mode | Fixed |
| Upside connection | Screwed |
| Contact position indicator | Yes |
| [Icm] rated short-circuit making capacity | 30 kA switch-disconnector alone 400 V AC at 50 Hz 330 kA with upstream protection circuit breaker 400 V AC at 50 Hz |
| Suitability for isolation | Yes |
| transfer switch class | PC |
|---|---|
| Number of contact position | 3 |
| Signal contacts composition | 1 NO + 2 NC 1 NC + 2 NO 2 NO |
| Utilization category | AC-33B |
| [Ue] rated operational voltage | 400 V AC 50/60 Hz |
| Control type | Remote control |
| Operating mode | Manual Remote |
| Display type | Alarm indicator |
| Mounting support | Plate |
| Locking options description | Padlock in OFF position Padlock in SI / SII position |
| Rated duty | Uninterrupted |
| [Ui] rated insulation voltage | Switch: 800 V Controller: 500 V |
| [Uimp] rated impulse withstand voltage | Switch: 8 kV Controller: 6 kV |
| [Ie] rated operational current | 250 A |
| mechanical interlocking | With mechanical interlocking |
| Mechanical durability | 10000 cycles |
| Connection pitch | 35 mm |
| Local signalling | LED indicator (green) for power ON LED indicator (red) for alarm |
| [Icw] rated short-time withstand current | 10 kA during 0.5 s 15 kA during 0.1 s |
| Height | 341 mm |
| Width | 370 mm |
| Depth | 185.8 mm |
| Net weight | 13.1 kg |
| [Ith] conventional free air thermal current | 250 A at 60 °C |
| Standards | IEC 60947-6-1 |
|---|---|
| product certifications | CE CB CCC |
| IP degree of protection | Front face: IP40 running Inside the enclosure: IP20 manual mode |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…85 °C |
| Pollution degree | 3 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 73.000 cm |
| Package 1 Width | 60.000 cm |
| Package 1 Length | 80.000 cm |
| Package 1 Weight | 27.999 kg |
Related products
108 in stock
Schneider A9K24232 | Miniature circuit-breaker, Acti9 iK60N, 2P, 32 A, C curve, 6000 A (IEC 60898-1)
Original price was: EGP1,129.20.EGP813.20Current price is: EGP813.20.60 in stock

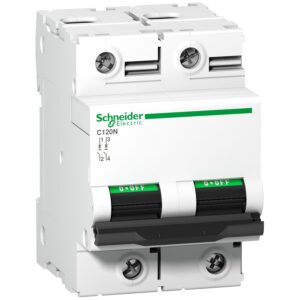

Schneider A9N18363 | Miniature circuit-breaker, Acti9 C120N, 2P, 125 A, C curve, 10000 A (IEC 60898-1), 10 kA (IEC 60947-2)
Original price was: EGP6,674.09.EGP4,371.50Current price is: EGP4,371.50.54 in stock

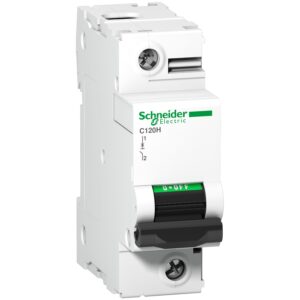

Schneider A9N18447 | Miniature circuit-breaker, Acti9 C120H, 1P, 100 A, C curve, 15000 A (IEC 60898-1), 15 kA (IEC 60947-2)
Original price was: EGP3,395.27.EGP2,223.90Current price is: EGP2,223.90.Out of stock

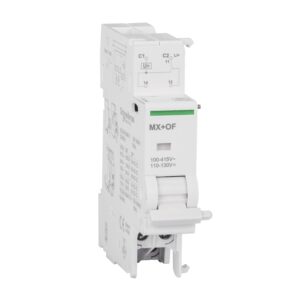

Schneider A9N26946 | MX Shunt Trip MX plus 1 OF 220-415Vac dc
Original price was: EGP3,785.97.EGP2,479.80Current price is: EGP2,479.80.47 in stock

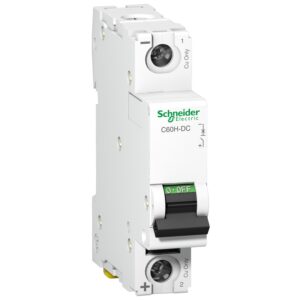

Schneider A9N61506 | miniature circuit breaker – C60H – 1 pole – 6 A – C curve
