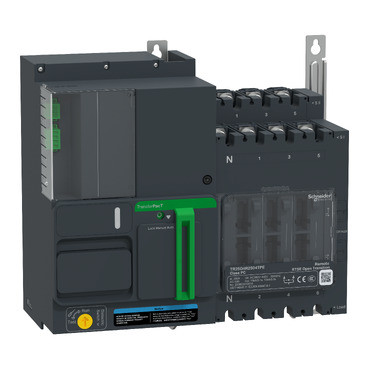

Schneider TR25D4R2004TPE | TransferPacT Remote, 200A, 400V, 4P, Remote, frame 250A
Schneider TR25D4R2004TPE | TransferPacT Remote, 200A, 400V, 4P, Remote, frame 250A
Technical Specifications
-
Series: TransferPacT Remote
-
Model: TR25D4R2004TPE
-
Rated Current: 200 Amps
-
Rated Voltage: 400V AC
-
Poles: 4 (Three-phase + Neutral)
-
Operation: Remote-controlled (electrical actuation)
-
Frame Size: 250A
-
Frequency: 50/60 Hz
-
Transfer Type: Open transition (break-before-make)
-
Mounting: Panel-mounted
-
Control Interface: Remote control and integration with automation systems
-
Standard Compliance: IEC 60947-6-1
⭐ Key Features
-
4-Pole Switching
Provides complete isolation between all conductors, including neutral, ensuring safe and reliable switching in three-phase systems. -
Remote Operation
Fully compatible with remote control systems, allowing for easy monitoring and control from a distance, reducing the need for manual intervention. -
Automatic Power Transfer
Ensures smooth and safe transition between power sources (e.g., grid and generator) to maintain continuous power without downtime. -
250A Frame Size
Designed with a robust frame that supports 250A capacity for easy integration into control panels while providing high electrical durability. -
Built-in Safety Features
Equipped with mechanical interlocks and clear operational indicators to prevent accidental operations and ensure safe system functioning.
💡 Applications
-
Industrial Facilities: Keeps heavy machinery and production lines running by automatically switching to backup power during outages.
-
Data Centers: Essential for maintaining 24/7 operations by ensuring continuous power supply for servers and critical equipment.
-
Healthcare Facilities: Guarantees reliable power supply for critical medical equipment and systems, preventing power-related disruptions.
-
Commercial Buildings: Ideal for office complexes and shopping malls where uninterrupted power is necessary for safety and security systems.
-
Remote Locations: Perfect for sites where remote control and automation are required, reducing the need for on-site supervision.
| Range of product | TransferPacT |
|---|---|
| Product or component type | Remote transfer switch |
| Device application | Change source of supply |
| poles description | 4P |
| Network type | AC |
| Network frequency | 50/60 Hz |
| downside connection | Screwed |
| mounting mode | Fixed |
| Upside connection | Screwed |
| Contact position indicator | Yes |
| [Icm] rated short-circuit making capacity | 30 kA switch-disconnector alone 400 V AC at 50 Hz 330 kA with upstream protection circuit breaker 400 V AC at 50 Hz |
| Suitability for isolation | Yes |
| transfer switch class | PC |
|---|---|
| Number of contact position | 3 |
| Signal contacts composition | 1 NO + 2 NC 1 NC + 2 NO 2 NO |
| Utilization category | AC-33B |
| [Ue] rated operational voltage | 400 V AC 50/60 Hz |
| Control type | Remote control |
| Operating mode | Manual Remote |
| Display type | Alarm indicator |
| Mounting support | Plate |
| Locking options description | Padlock in OFF position Padlock in SI / SII position |
| Rated duty | Uninterrupted |
| [Ui] rated insulation voltage | Switch: 800 V Controller: 500 V |
| [Uimp] rated impulse withstand voltage | Switch: 8 kV Controller: 6 kV |
| [Ie] rated operational current | 200 A |
| mechanical interlocking | With mechanical interlocking |
| Mechanical durability | 10000 cycles |
| Connection pitch | 35 mm |
| Local signalling | LED indicator (green) for power ON LED indicator (red) for alarm |
| [Icw] rated short-time withstand current | 10 kA during 0.5 s 15 kA during 0.1 s |
| Height | 341 mm 341 mm 341 mm |
| Width | 370 mm |
| Depth | 185.8 mm |
| Net weight | 13.3 kg |
| [Ith] conventional free air thermal current | 200 A at 60 °C |
| Standards | IEC 60947-6-1 |
|---|---|
| product certifications | CE CB CCC |
| IP degree of protection | Front face: IP40 running Inside the enclosure: IP20 manual mode |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…85 °C |
| Pollution degree | 3 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 73.000 cm |
| Package 1 Width | 60.000 cm |
| Package 1 Length | 80.000 cm |
| Package 1 Weight | 27.499 kg |
