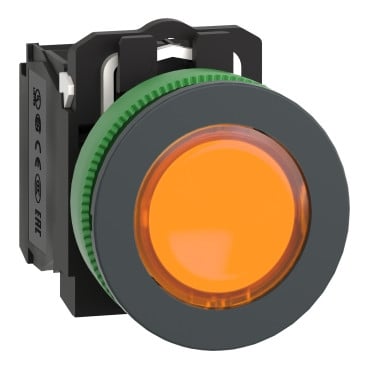

Schneider XB5FW35M5 | Illuminated push button, Harmony XB5, antimicrobial, plastic, orange, 30mm, universal LED, 1NO + 1NC, 230…240V AC
Original price was: 2,170.28 EGP.1,360.77 EGPCurrent price is: 1,360.77 EGP.
Shipping calculated at checkout.
Introducing the XB5FW35M5 from Schneider Electric
The Schneider Electric XB5FW35M5 is not just any illuminated push button; it’s a versatile solution designed to enhance your operational efficiency and safety. With its antimicrobial properties and vibrant orange color, this 30mm push button stands out in any environment, making it easy for operators to locate and use. The 1NO + 1NC configuration offers flexible control options, ensuring you can tailor it to your specific needs.
Why Choose the XB5FW35M5?
One of the most significant advantages of the XB5FW35M5 is its universal LED feature. This means you get consistent illumination, which enhances visibility during critical operations. In fast-paced industrial settings, this illumination can significantly reduce the risk of errors, ensuring that your workflow remains smooth and efficient. Whether you are controlling machinery or signaling alerts, the enhanced visibility of this push button can be a game changer.
Durability Meets Design
Made from high-quality plastic, the XB5FW35M5 is designed to withstand harsh conditions. Its antimicrobial properties ensure that it remains hygienic, making it suitable for environments where cleanliness is paramount, such as food processing or healthcare. Investing in a sturdy and reliable push button like this means less downtime due to maintenance and replacements, translating to long-term savings for your business.
Easy Installation and Integration
Installation is a breeze with the Schneider Electric XB5FW35M5. The universal design means it can be integrated seamlessly into existing systems without extensive modifications. This ease of integration reduces installation time, allowing you to get back to what really matters—your operations. Plus, with a voltage rating of 230…240V AC, it is compatible with a wide range of applications.
Final Thoughts on the XB5FW35M5
In conclusion, the Schneider Electric XB5FW35M5 illuminated push button is an excellent choice for anyone looking to enhance their operational safety and efficiency. With its combination of durability, visibility, and ease of installation, it stands out as a premium option in the pushbutton category. Say goodbye to subpar controls and invest in a product that prioritizes your needs and operational success.
| Range of Product | Harmony XB5 |
|---|---|
| Product or Component Type | Illuminated push-button |
| Device short name | XB5F |
| Bezel material | Dark grey plastic |
| Fixing collar material | Plastic |
| Head type | Built-in-flush |
| Mounting diameter | 1.2 in (30.5 mm) |
| Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round |
| Type of operator | spring return |
| Operator profile | Orange flush, unmarked |
| Operator additional information | With plain lens |
| Contacts type and composition | 1 NO + 1 NC |
| Contact operation | Slow-break |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1 |
| Light source | Universal LED |
| Bulb base | Integral LED |
| [Us] rated supply voltage | 220...240 V AC 50/60 Hz |
| Cap/operator or lens colour | Orange |
| Height | 1.7 in (42 mm) |
|---|---|
| Width | 1.4 in (36.6 mm) |
| Depth | 2.2 in (55 mm) |
| Terminals description ISO n°1 | (21-22)NC (13-14)NO |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Contacts usage | Standard contacts |
| Positive opening | With IEC 60947-5-1 appendix K |
| Operating travel | 0.06 in (1.5 mm) NC changing electrical state) 0.1 in (2.6 mm) NO changing electrical state) 0.2 in (4.3 mm) total travel) |
| Operating force | 3.5 N NC changing electrical state 3.8 N |
| Mechanical durability | 10000000 cycles |
| Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1 |
| Shape of screw head | Cross Philips no 1 Cross pozidriv No 1 Slotted flat Ø 4 mm Slotted flat Ø 5.5 mm |
| Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 10 A cartridge fuse gG IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 10 A IEC 60947-5-1 |
| [Ui] rated insulation voltage | 600 V 3)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 |
| [Ie] rated operational current | 3 A 240 V, AC-15, A600 IEC 60947-5-1 6 A 120 V, AC-15, A600 IEC 60947-5-1 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 1.2 A 600 V, AC-15, A600 IEC 60947-5-1 |
| Electrical durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C |
| Electrical reliability | Λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4 Λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4 |
| Signalling type | Steady |
| Supply voltage limits | 195…264 V AC |
| Current Consumption | 14 mA |
| Service life | 100000 h at rated voltage and 25 °C |
| Surge withstand | 1 kV IEC 61000-4-5 |
| device presentation | Complete product |
| protective treatment | TH |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Overvoltage category | Class II IEC 60536 |
| IP degree of protection | IP66 IEC 60529 IP67 IP69 IP69K |
| NEMA degree of protection | NEMA 13 NEMA 4X |
| IK degree of protection | IK03 conforming to IEC 50102 |
| Standards | IEC 60947-1 UL 508 JIS C8201-5-1 IEC 60947-5-4 IEC 60947-5-1 CSA C22.2 No 14 JIS C8201-1 ISO 22196:2011 ISO 21702 |
| Product Certifications | UL Listed CSA |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Resistance to fast transients | 2 kV IEC 61000-4-4 |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) IEC 61000-4-3 |
| Resistance to electrostatic discharge | 6 kV on contact (on metal parts) IEC 61000-4-2 8 kV in free air (in insulating parts) IEC 61000-4-2 |
| Electromagnetic emission | Class B IEC 55011 |
| Category | US10CS222467 |
|---|---|
| Discount Schedule | 0CS2 |
| GTIN | 3606481361110 |
| Returnability | Yes |
| Country of origin | US |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.10 in (5.33 cm) |
| Package 1 Width | 1.70 in (4.32 cm) |
| Package 1 Length | 3.60 in (9.14 cm) |
| Package 1 Weight | 0.13 lb(US) (0.06 kg) |
Data Sheet : Download
