Schneider XB7NS9445 Description

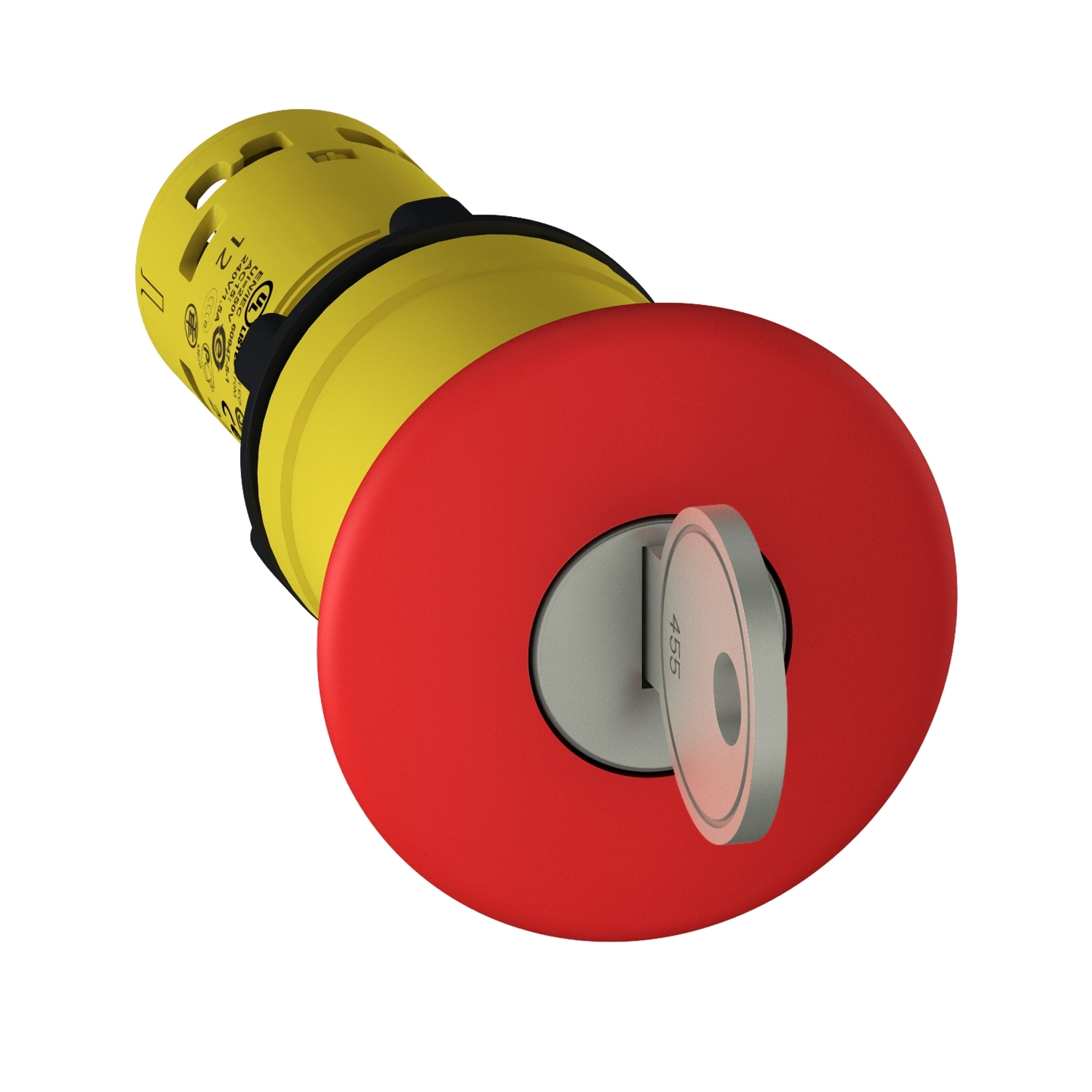

This Harmony XB7, emergency stop / shutdown 40mm mushroom head monolithic red push button operates with a latched key release (key no.455) mechanism and uses screw-clamp terminals.

This emergency stop / shutdown button, also called EMS (Emergency Machine Stop) and EMO (Emergency Off) is easily installed into a standard 22mm diameter cut-outs and connected with simple screw-clamp connections.

It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments.

It has a double insulated plastic bezel. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

The Schneider XB7NS9445 is a pilot light device designed for use in industrial control panels. Here’s a detailed description of this product:

Product Name: Schneider XB7NS9445
Type: Pilot Light
Function: Visual indication of machine or process status
Mounting: Panel mount
Voltage Rating: Typically operates at a standard control voltage (e.g., 24V AC/DC, 110V AC, or 230V AC)
Color: Generally specific to the application (e.g., red for stop/fault, green for start/normal operation, etc.)
Lens Type: Often features a prominent, colored lens for high visibility
Illumination: LED or incandescent light source
Construction: Robust design for industrial environments

Features:

  • High Visibility: Bright, colored lens provides clear visual indication.
  • Durable Construction: Built to withstand harsh industrial conditions.
  • Energy Efficient: LED versions offer low power consumption and long service life.
  • Easy Installation: Designed for quick and easy mounting in control panels.
  • Versatile Applications: Suitable for a wide range of industrial control and automation applications.

Applications:
The Schneider XB7NS9445 pilot light is commonly used in industrial control panels, machinery, and automation systems. It provides a clear visual indication of the status of various processes or machine states, such as power on/off, fault conditions, and operational status.

Standards:
Compliant with international standards for control devices, ensuring safety and reliability in industrial control systems.

This pilot light is part of Schneider Electric’s range of industrial control products, known for their reliability, performance, and ease of integration into various control systems

SKU: XB7NS9445 Category:
brands

Main
Range of Product Harmony XB7
Product or Component Type Emergency stop push-button
Device short name XB7
Mounting diameter 0.9 in (22 mm)
Sale per indivisible quantity 10
Shape of signaling unit head Round
Type of operator latching
Reset Key release
Operator profile Red mushroom Ø 40 mm, unmarked
type of keylock Key 455
Contacts type and composition 1 NO + 1 NC
Connections – terminals Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1
Screw clamp terminals, 1 x 0.34…2 x 2.5 mm² without cable end IEC 60947-1
device presentation Monolithic product
Complementary
CAD overall width 1.6 in (40 mm)
CAD overall height 1.6 in (40 mm)
CAD overall depth 2.8 in (72 mm)
Terminals description ISO n°1 (21-22)NC
(13-14)NO
Net Weight 0.077 lb(US) (0.035 kg)
Device mounting Fixing hole 0.9 in (22.5 mm) 22.3 +0.4/0 IEC 60947-1
Fixing center >= 30 x 40 mm support panel) metal 0.04…0.2 in (1…6 mm)
>= 30 x 40 mm support panel) plastic 0.08…0.2 in (2…6 mm)
Fixing mode Fixing nut beneath head 17.7…21.2 lbf.in (2…2.4 N.m)
Contact operation Snap action
Contacts usage Standard
Positive opening With IEC 60947-5-1 appendix K
Mechanical durability 100000 cycles
Tightening torque 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1
Shape of screw head Cross JIS No 1
Cross Philips no 1
Cross pozidriv No 1
Slotted flat Ø 4 mm
Slotted flat Ø 5.5 mm
Short-circuit protection 4 A cartridge fuse gG IEC 60947-5-1
[Ui] rated insulation voltage 250 V 3)IEC 60947-1
[Uimp] rated impulse withstand voltage 4 kV IEC 60947-1
[Ie] rated operational current 0.1 A 250 V, DC-13, R300 IEC 60947-5-1
0.22 A 125 V, DC-13, R300 IEC 60947-5-1
0.75 A 240 V, AC-15, C300 IEC 60947-5-1
1.5 A 120 V, AC-15, C300 IEC 60947-5-1
Electrical durability 1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 IEC 60947-5-1 appendix C
Electrical reliability Λ < 5 x 10exp(-7) 17 V 5 mA IEC 60947-5-4
Environment
protective treatment TH
Ambient Air Temperature for Storage -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation -13…158 °F (-25…70 °C)
Electrical shock protection class Class II IEC 60536
IP degree of protection IP20 IEC 60529 rear face)
IP65 IEC 60529 front face)
NEMA degree of protection NEMA 12 UL 50
NEMA 3 UL 50
Standards IEC 60947-5-5
IEC 60364-5-53
ISO 13850
IEC 60947-1
IEC 60947-5-1
CSA C22.2 No 14
UL 508
IEC 60204-1
Product Certifications CCC
GOST
Vibration resistance 5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance 15 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ordering and shipping details
Category US10CS222464
Discount Schedule 0CS2
GTIN 3606480465659
Returnability No
Country of origin ID
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 5.9 in (15.0 cm)
Package 1 Width 6.3 in (16.0 cm)
Package 1 Length 3.1 in (8.0 cm)
Package 1 Weight 2.6 oz (75.0 g)
Unit Type of Package 2 BAG
Number of Units in Package 2 10
Package 2 Height 6.3 in (16.0 cm)
Package 2 Width 5.9 in (15.0 cm)
Package 2 Length 3.1 in (8.0 cm)
Package 2 Weight 26.7 oz (758.0 g)
Unit Type of Package 3 S01
Number of Units in Package 3 50
Package 3 Height 5.9 in (15 cm)
Package 3 Width 5.9 in (15 cm)
Package 3 Length 15.7 in (40 cm)
Package 3 Weight 9.151 lb(US) (4.151 kg)
Contractual warranty
Warranty 18 months

Main Document

Data Sheet : Download
